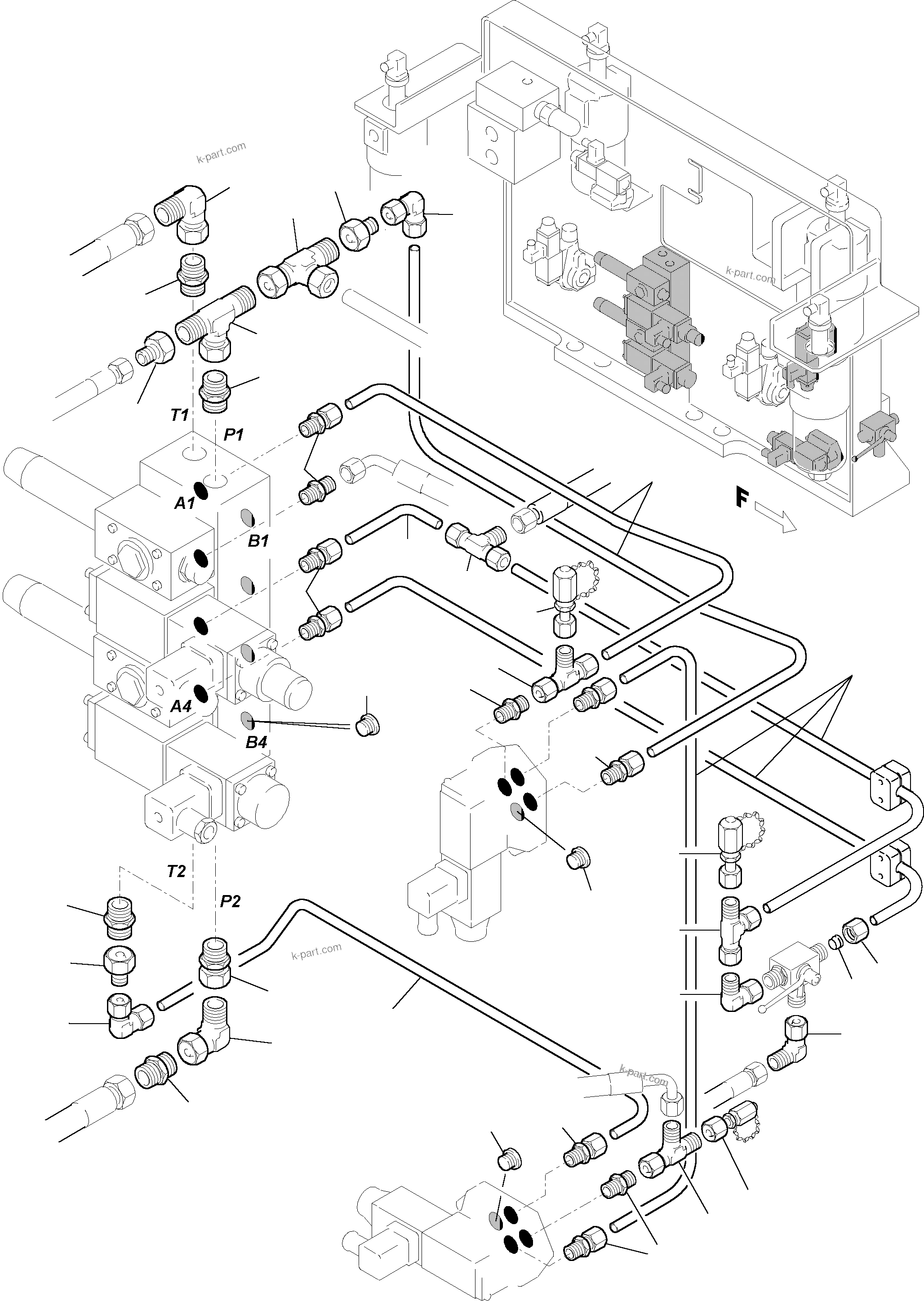

Diagram image 1 of 3

H455S S/N 15005

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

H455S S/N 15005

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

H455S S/N 15005

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	255 694 40	Plug	4	InternBDB: VSTI R 3/8 \| InternKon: 674 928 40 / 50
?	372 899 99	Union	5	InternBDB: KOR 15/12
?	372 109 99	Union	1	InternBDB: EEL 15
?	371 954 99	Union	1	InternBDB: FFL 15
?	215 811 99	Pipe Ш 15 Bulk ware, state length required	-2	InternBDB: 15x1,5 /2391
?	371 348 99	Non-return valve	2	InternBDB: RHD 28 \| InternKon: 674 928 40 / 66
?	372 173 99	Union	5	InternBDB: DDL 15
?	374 436 99	Socket	5	InternBDB: L 15-R
?	371 928 99	Union	2	InternBDB: EVGE 15
?	373 700 99	Union	1	InternBDB: GR 22/15
?	255 694 40	Plug	5	InternBDB: VSTI R 3/8 \| InternKon: 674 928 40 / 50
?	370 313 99	Union	2	InternBDB: DL 12 \| InternKon: 674 928 40 / 52
?	502 059 98	Union	2	InternBDB: EVGE 12 \| InternKon: 674 928 40 / 79
?	371 953 99	Union	4	InternBDB: FFL 12 \| InternKon: 674 928 40 / 48
?	215 642 99	Pipe Ш 12 Bulk ware, state length required	-2	InternBDB: 12x2 /2391
?	502 752 98	Test union	3	InternBDB: 12-L \| InternKon: 674 928 40 / 49
?	372 172 99	Union	4	InternBDB: DDL 12 \| InternKon: 674 928 40 / 51
?	371 241 99	Olive	2	InternBDB: L 12
?	371 274 99	Union nut	2	InternBDB: AL 12
?	372 613 99	Union	1	InternBDB: QL 12 \| InternKon: 674 928 40 / 54
?	372 429 99	Union	2	InternBDB: CL 28
?	215 816 99	Pipe Ш 28 Bulk ware, state length required	-2	InternBDB: 28x2,5 /2391
?	372 885 99	Socket	4	InternBDB: RI 1 1/4 x 1 \| InternKon: 674 928 40 / 25
?	006 895 98	Union	2	InternBDB: Voss 28 LR \| InternKon: 674 928 40 / 26
?	501 053 98	Union	1	InternBDB: KOR 28/12
?	007 172 98	Union	3	InternBDB: Voss 30-SR \| InternKon: 674 928 40 / 55
?	007 135 98	Union	1	InternBDB: Voss 28-LM \| InternKon: 674 928 40 / 31
?	371 957 99	Union	4	InternBDB: FFL 28
?	371 979 99	Union	1	InternBDB: FFS 30 \| InternKon: 674 928 40 / 57
?	372 187 99	Union	4	InternBDB: DDS 30 \| InternKon: 674 928 40 / 56
?	674 948 40	Pipe assy. Ш 30	2	InternKon: 674 928 40 / 67
?	372 464 99	Union	2	InternBDB: DS 30 \| InternKon: 674 928 40 / 61
?	373 547 99	Union	2	InternBDB: RI 1 x 1 1/4 \| InternKon: 674 928 40 / 60
?	374 419 99	Union	2	InternBDB: S 25 \| InternKon: 674 928 40 / 58
?	004 684 98	Test union	2	InternBDB: 25-S \| InternKon: 674 928 40 / 59
?	647 878 40	Hose assy. DN 10x990	1	InternBDB: DOL 12 /DOL 12-90 \| InternKon: 674 955 40 / 21
?	551 198 40	Hose assy. DN 25x580	1	InternBDB: DOL 28 /DOL 28-90 \| InternKon: 674 955 40 / 20
?	371 931 99	Union	2	InternBDB: EVGE 35-LR \| InternKon: 674 928 40 / 36
?	372 502 99	Union	1	InternBDB: ZL 35 \| InternKon: 674 928 40 / 37
?	372 923 99	Union	1	InternBDB: KOR 35/18 \| InternKon: 674 928 40 / 38
?	504 670 98	Test union	1	InternBDB: 28-L \| InternKon: 674 928 40 / 35
?	372 922 99	Union	1	InternBDB: KOR 35/15
?	371 930 99	Union	1	InternBDB: EVGE 28-LR \| InternKon: 674 928 40 / 32
?	372 453 99	Union	2	InternBDB: DL 28 \| InternKon: 674 928 40 / 44
?	372 617 99	Union	1	InternBDB: QL 28 \| InternKon: 674 928 40 / 34
?	372 112 99	Union	1	InternBDB: EEL 28 \| InternKon: 674 928 40 / 62
?	372 176 99	Union	2	InternBDB: DDL 28 \| InternKon: 674 928 40 / 65
?	374 460 99	Socket	1	InternBDB: L 35 R
?	372 177 99	Union	1	InternBDB: DDL 35
?	372 916 99	Union	1	InternBDB: KOR 28/18
?	872 251 40	Pipe assy. Ш 18	1	InternKon: 674 928 40 / 68
?	372 174 99	Union	2	InternBDB: DDL 18
?	372 903 99	Union	1	InternBDB: KOR 18/12 \| InternKon: 674 928 40 / 43
?	500 451 98	Union	1	InternBDB: EEL 18 \| InternKon: 674 928 40 / 64

Komatsu H455S S/N 15005 parts catalog PDF

PIPES - CONTROL- AND FILTER PLATE (515-1834a) in H455S S/N 15005. Diagram image and parts list.
