H455S S/N 15005

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	660 725 40	Hydraulic cylinder assy. consist. of fig-no: 02-28	1	InternBDB: DBM 225x110x830 AT-Nr. 710 600 73
?	763 790 73	Cylinder assy. consist. of fig-no: 03-05	1	InternBDB: E-St
?		Cylinder These parts are not sold separately	1	InternBDB: 653 989 40 \| InternKon: 660 725 40 / 1
?	574 428 40	Freeze-in bush	4	InternBDB: Ш 120 \| InternKon: 660 725 40 / 8
?	004 860 98	Nipple	3	InternBDB: AR1/4" 011 207 99 \| InternKon: 660 725 40 / 23
?	347 403 99	Thread pin	1	InternBDB: M12x30/915- 10.9 \| InternKon: 660 725 40 / 22
?	445 372 40	Groove nut	1	InternKon: 660 725 40 / 5
?	445 369 40	Piston	1	InternKon: 660 725 40 / 4
?	440 212 40	Piston sliding strip 684 lg.	2	InternBDB: Bu. u. Lu. BS-50740-2250 -A-47-9,5x4 \| InternKon: 660 725 40 / 12
?	269 254 40	Piston wear-ring	2	InternBDB: Bu. u. Lu. BS-50706- 2250-A-900 \| InternKon: 660 725 40 / 11
?	501 901 98	O-ring	1	InternBDB: 196,22x7B NB70 011 745 99 \| InternKon: 660 725 40 / 10
?	202 700 40	Seal	1	InternBDB: Bu. u. Lu. S-55044-2250- 46N \| InternKon: 660 725 40 / 9
?	270 354 40	Back-up ring	2	InternBDB: Bu. u. Lu. S-11109-348 C-110 \| InternKon: 660 725 40 / 18
?	502 005 98	O-ring	1	InternBDB: 110,49x5,33 NB70 011 745 99 \| InternKon: 660 725 40 / 17
?	500 669 98	O-ring	1	InternBDB: 212X7BNB80 011 745 99 \| InternKon: 660 725 40 / 15
?	269 247 40	Back-up ring	1	InternBDB: Prдdifa 212x7/2 \| InternKon: 660 725 40 / 16
?	504 583 98	Bolt	16	InternBDB: M24x110/912- 10.9 Kaltzдh \| InternKon: 660 725 40 / 20
?	627 047 40	Sealing flange assy. consist. of fig.-nos: 19 and 20 (finish work after bush is installed)	1	InternKon: 660 725 40 / 3
?		Bush These parts are not sold separately	1	InternBDB: 627 046 40 \| InternKon: 627 047 40 / 1
?	627 031 40	Bush	1	InternKon: 627 047 40 / 2
?	180 173 40	Seal kit	1	InternBDB: 110x130x40 \| InternKon: 641 940 40 / 13
?	627 033 40	Support ring	1	InternKon: 641 940 40 / 7
?	627 032 40	Cover	1	InternKon: 641 940 40 / 6
?	502 731 98	Bolt	8	InternBDB: M12x50 /10.9 - Kaltzдh /912 \| InternKon: 641 940 40 / 21
?	269 370 40	Stripper	1	InternBDB: Prдdifa 110x123x12 \| InternKon: 641 940 40 / 14
?	354 532 99	Feather key	1	InternBDB: A16x10x40/ 6885 \| InternKon: 641 940 40 / 19
?	763 530 73	Piston rod assy. consist. of fig-nos: 04,05,28	1	InternBDB: E-St
?		Piston rod These parts are not sold separately	1	InternBDB: 627 521 40 \| InternKon: 641 940 40 / 2
?	324 309 40	Shim 0,8	-2	InternBDB: ee 110 0129 t
?	696 426 73	Sealing kit for piston consist. of fig-nos: 09-14	-2	InternBDB: E-St
?	762 479 73	Sealing kit for sealing flange consist. of fig-nos: 15,16,21,25	-2	InternBDB: E-St

Komatsu H455S S/N 15005 parts catalog PDF

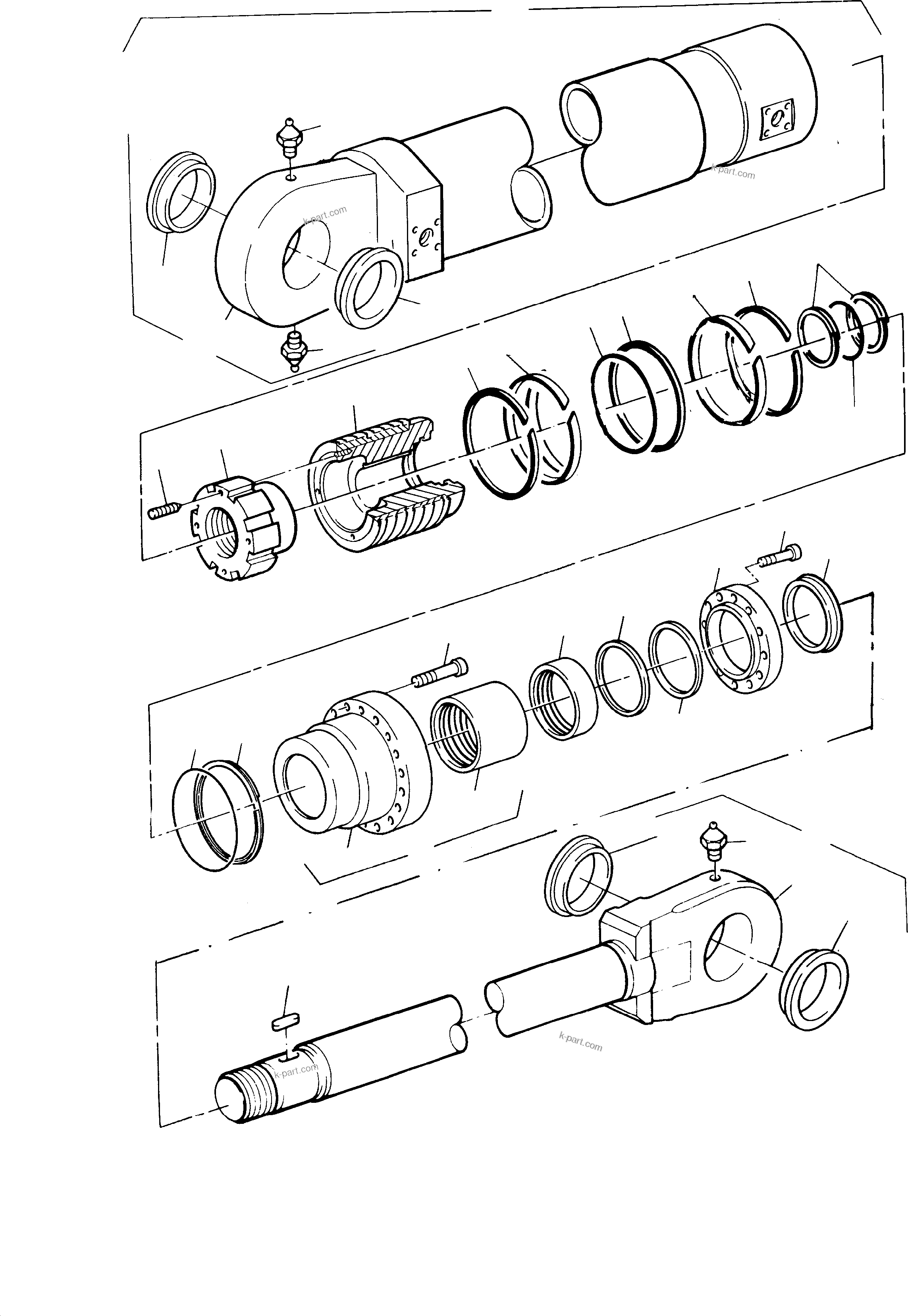

HYDRAULIC CYLINDER (515-5075a) in H455S S/N 15005. Diagram image and parts list.
