H135S S/N 61064

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	640 198 40	Hose assy. DN 32x3000 lg.	1	InternBDB: WN 341 951 40 / FS 1 1/2 / FS 1 1/2 - 90 \| InternKon: 646 800 40 / 18
?	440 164 40	Hose assy. DN 32x2350 lg.	2	InternBDB: Aeroquip GH 506-SFL 1 1/2 SFL 1 1/2-90 ? \| InternKon: 646 800 40 / 12
?	640 199 40	Hose assy. DN 32x3200 lg.	1	InternBDB: WN 341 951 40 / FS 1 1/2 / FS 1 1/2 - 90 \| InternKon: 646 800 40 / 19
?	356 209 40	Seal ring	8	InternBDB: Bu. u. Lu. FR 76-5937- 2200 \| InternKon: 646 800 40 / 80
?	319 288 99	Bolt	32	InternBDB: M16x50 /912 10.9 \| InternKon: 646 800 40 / 85
?	006 639 98	Half flange	8	InternBDB: 32 /420 WN 011 735 99 \| InternKon: 646 800 40 / 74
?	534 008 99	Plate	5	InternBDB: S-DP-A-4 /3015 \| InternKon: 646 800 40 / 5
?	502 371 98	Clamp	4	InternBDB: S-4-E /3015 \| InternKon: 646 800 40 / 6
?	502 624 98	Insert	4	InternBDB: S-4-45,5 /3015 \| InternKon: 646 800 40 / 7
?	534 009 99	Plate	5	InternBDB: S-AP-A-4 \| InternKon: 646 800 40 / 105
?	308 612 99	Bolt	10	InternBDB: M12x100 /931 \| InternKon: 646 800 40 / 107
?	502 976 98	Clamp	1	InternBDB: S-4-R-50 /3015 \| InternKon: 646 800 40 / 108
?	509 310 98	Locking plate	2	InternBDB: SI 6 \| InternKon: 646 800 40 / 109
?	308 581 99	Bolt	2	InternBDB: M10x70 /931 \| InternKon: 646 800 40 / 123
?	652 005 40	Hose DN 20x1400	1	InternBDB: DOS 25 /DOL 22-90 WN 341 951 40 \| InternKon: 646 800 40 / 130
?	504 923 98	Clamp	1	InternBDB: S-3-G-32 /3015 \| InternKon: 646 800 40 / 117
?	534 005 99	Plate	1	InternBDB: S-AP-A-3 /3015 \| InternKon: 646 800 40 / 121
?	534 004 99	Plate	1	InternBDB: S-DP-A-3 /3015 \| InternKon: 646 800 40 / 122
?	006 915 98	Union	1	InternBDB: Voss 25 SR \| InternKon: 646 800 40 / 63
?	371 956 99	Union	1	InternBDB: FFL 22 /2353 \| InternKon: 463 888 40 / 5
?	374 431 99	Socket	1	InternBDB: L 28 B-M / 3901 \| InternKon: 463 888 40 / 8
?	372 176 99	Union	1	InternBDB: DDL 28 /2353 \| InternKon: 463 888 40 / 6
?	372 917 99	Union	1	InternBDB: KOR 28/22-L \| InternKon: 463 888 40 / 7
?	255 609 40	Hose fittings	2	InternBDB: 07.004-22-16 \| InternKon: 463 888 40 / 3
?	256 583 40	Hose 20 x ca. 700 lg. Bulk ware, state length required	1	InternBDB: 2651-16 \| InternKon: 463 888 40 / 2
?	173 415 40	Plug	1	InternBDB: Vsti M27x2 ed \| InternKon: 463 888 40 / 9
?	500 069 98	Socket	1	InternBDB: EVGE 22-PLM-ED \| InternKon: 463 888 40 / 10

Komatsu H135S S/N 61064 parts catalog PDF

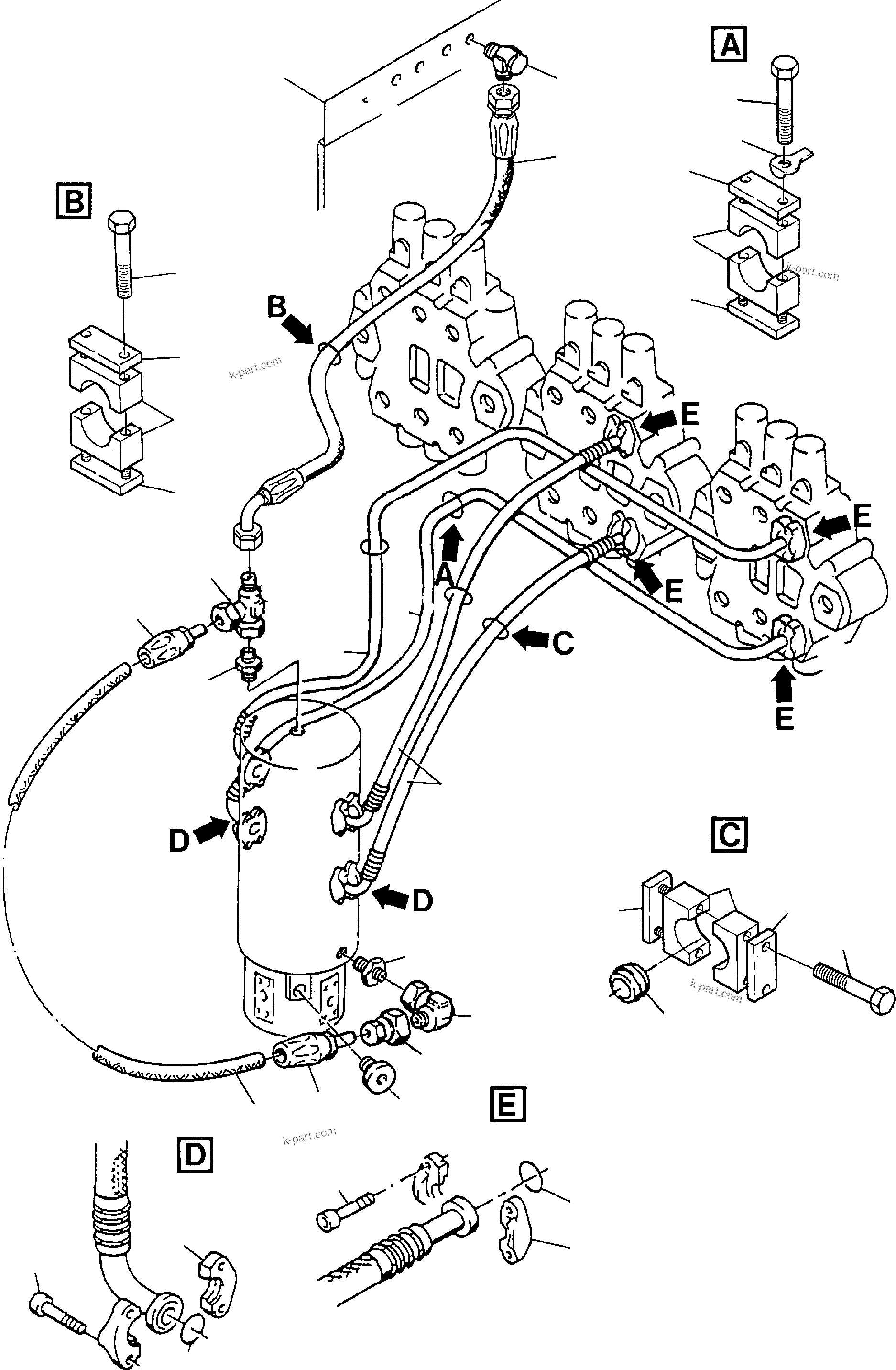

LINES - CONTROL BLOCKS- ROTARY JOINT (116-1820d) in H135S S/N 61064. Diagram image and parts list.
