H135S S/N 61064

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		Slew gear box	1	InternBDB: 635 217 40 \| InternKon: 410 878 40 / 19	090-1984a
?		Hydr. motor	1	InternKon: 410 878 40 / 20	090-1370b
?	642 550 40	Slew ring assy.	1	InternBDB: DBM \| InternKon: 410 878 40 / 17
?	307 602 99	Bolt	4	InternBDB: M20x55 /933 \| InternKon: 410 878 40 / 50
?	343 117 99	Lock washer	4	InternBDB: 20 /127 \| InternKon: 410 878 40 / 60
?	319 294 99	Bolt	36	InternBDB: M16x110 /912 10.9 \| InternKon: 410 878 40 / 54
?	374 439 99	Socket	1	InternBDB: L 28 R /3901 \| InternKon: 410 878 40 / 36
?	643 814 40	Hose assy. NW 25x700 mm	1	InternBDB: DOL 28 /DOL 28 WN 341 951 40 \| InternKon: 410 878 40 / 68
?	372 593 99	Union	1	InternBDB: RL 28 /2353 \| InternKon: 410 878 40 / 45
?	372 176 99	Union	1	InternBDB: DDL 28 /2353 \| InternKon: 410 878 40 / 46
?	371 858 99	Union	1	InternBDB: Buz 28-L \| InternKon: 410 878 40 / 47
?	507 121 98	Thread pin	2	InternBDB: PM 12x25 /32500 \| InternKon: 410 878 40 / 108
?	334 600 99	Nut	2	InternBDB: M 12 /985 \| InternKon: 410 878 40 / 109
?	436 080 40	Pinion cover	1	InternKon: 410 877 40 / 3
?	307 805 99	Bolt	5	InternBDB: M12x35 /933 \| InternKon: 410 877 40 / 12
?	343 112 99	Lock washer	5	InternBDB: 12 /128 \| InternKon: 410 877 40 / 13
?	642 551 40	Nip ring No field repair item	1	InternKon: 642 550 40 / 1
?	642 553 40	Ring No field repair item	1	InternKon: 642 550 40 / 2
?	642 555 40	Retaining ring No field repair item	1	InternKon: 642 550 40 / 3
?	500 515 98	Tooth lock washer	12	InternBDB: A 16,5 /6797 \| InternKon: 642 550 40 / 11
?	319 291 99	Bolt	12	InternBDB: M16x80 /912 10.9 \| InternKon: 642 550 40 / 10
?	593 418 40	Roller set Ш 40	1	InternBDB: TL 487 109 40 \| InternKon: 642 550 40 / 4
?	593 487 40	Plastic cage No field repair item	144	InternKon: 642 550 40 / 7
?	593 419 40	Roller set Ш 25	1	InternBDB: TL 487 109 40 \| InternKon: 642 550 40 / 6
?	505 308 40	Roller set Ш 28	1	InternBDB: TL 487 109 40 \| InternKon: 642 550 40 / 5
?	368 576 40	Plastic cage No field repair item	194	InternKon: 642 550 40 / 8
?	224 639 40	Lip type seal NG 25x7000 mm Bulk ware, state length required	1	InternBDB: TL \| InternKon: 642 550 40 / 13
?	246 217 40	Extension	215	InternKon: 642 550 40 / 9
?	519 324 40	Cover	1	InternKon: 410 878 40 / 104
?	511 550 98	Bolt	72	InternBDB: M30x255 /TL WN 341 920 40 \| InternKon: 410 878 40 / 43
?	255 057 40	Washer	72	InternBDB: 31 /6916 \| InternKon: 410 878 40 / 44
?	292 979 40	Bolt	72	InternBDB: M30x140 /TL WN 341 920 40 \| InternKon: 410 877 40 / 14
?	506 852 98	Bolt	72	InternBDB: M30x140 /TL WN 341 920 40 14 Kaltzдh \| InternKon: 410 877 40 / 14
?	255 057 40	Washer	72	InternBDB: 31 /6916 \| InternKon: 410 877 40 / 15
?	242 883 40	Cam	1	InternKon: 410 877 40 / 4
?	307 615 99	Bolt	4	InternBDB: M20x60 /933 10.9 \| InternKon: 410 877 40 / 10
?	343 117 99	Lock washer	4	InternBDB: 20 /127 \| InternKon: 410 877 40 / 11
?	764 783 73	Slew ring - mounting kit	-2	InternBDB: E-ST

Komatsu H135S S/N 61064 parts catalog PDF

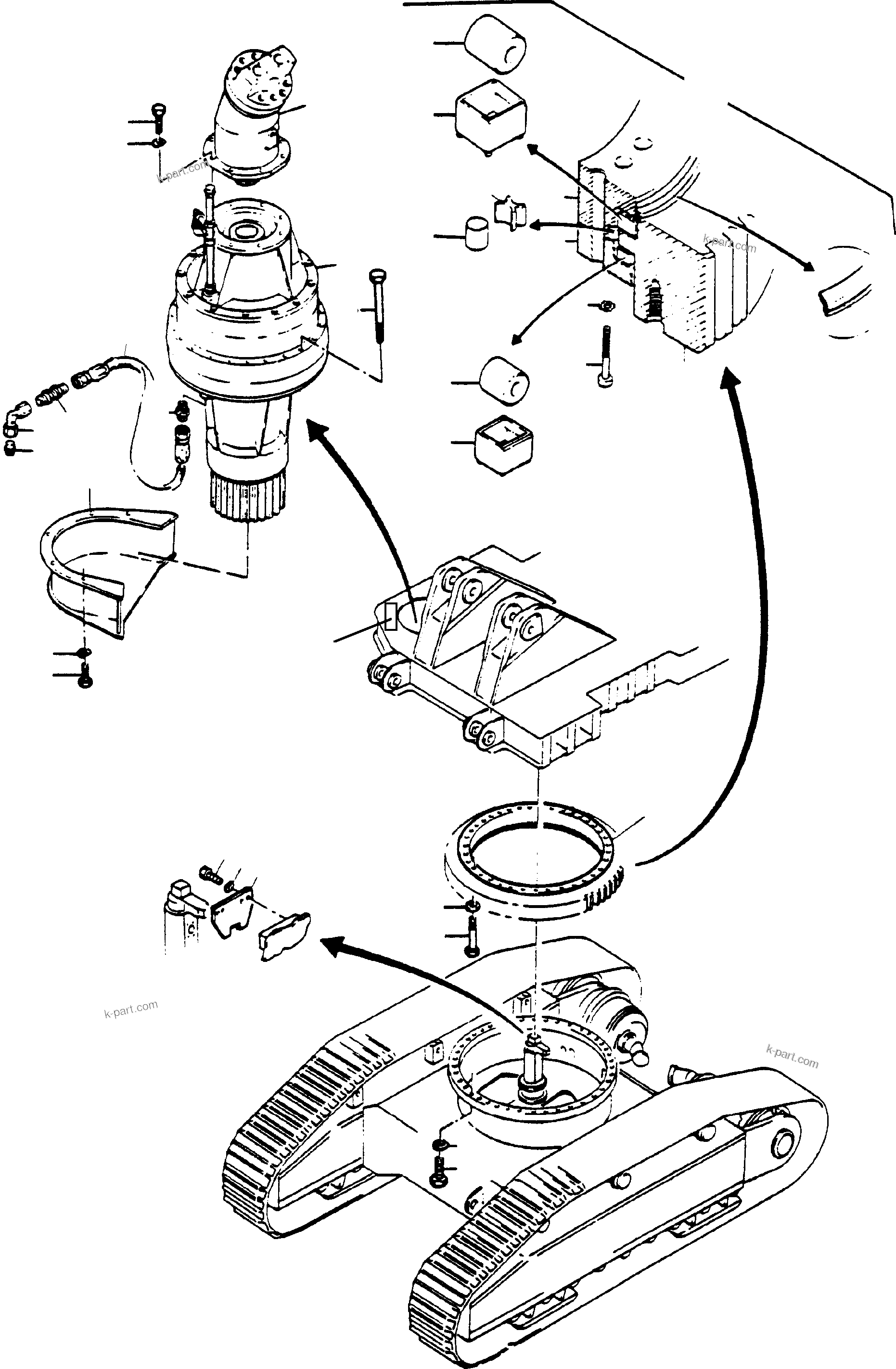

SLEW RING AND SLEW GEAR BOX ARR. (116-1100f) in H135S S/N 61064. Diagram image and parts list.
