H135S S/N 61064

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		Air cleaner assy.	1	InternBDB: 414 984 40 \| InternKon: 439 894 40 / 2	090-5581a
?	410 800 40	Frame	1	InternKon: 439 894 40 / 1
?	270 839 40	Rain cap	1	InternBDB: P 119877 \| InternKon: 439 894 40 / 14
?	510 730 98	Resilient sleeve 17/30x55	7	InternKon: 439 894 40 / 4
?	308 639 99	Bolt	7	InternBDB: M16x110 /931 \| InternKon: 439 894 40 / 5
?	005 838 98	Bolt	6	InternBDB: 5/8-11 UNCX 1 1/4 \| InternKon: 439 894 40 / 6
?	341 211 99	Washer	14	InternBDB: 18 /434 \| InternKon: 439 894 40 / 7
?	634 867 40	Clamp	2	InternBDB: Norma 30-W2-1 TLG GBS 8074.220 ; 660 239 40/14 \| InternKon: 439 894 40 / 12
?	410 849 40	Retainer	3	InternKon: 660 239 40 / 5
?	425 399 40	Retainer	2	InternKon: 660 239 40 / 6
?	425 395 40	Retainer	1	InternKon: 660 239 40 / 11
?	634 865 40	Clamp	10	InternBDB: GBS 8091.153/25-W2-1 TLG \| InternKon: 660 239 40 / 4
?	269 062 40	Elbow	3	InternBDB: Donaldson P 10-5534 90 ? 5 1/2" \| InternKon: 660 239 40 / 3
?	368 179 40	Elbow	1	InternBDB: P 11-2606 45 ? 8" \| InternKon: 660 239 40 / 16
?	440 688 40	Air intake hose NW 140x1350 lg.	1	InternBDB: ESPA 140/203x1350 214 001 3501 \| InternKon: 660 239 40 / 2
?	440 687 40	Air intake hose NW 140x2200 lg.	1	InternBDB: 140/200x2200 214 002 2001 \| InternKon: 660 239 40 / 1
?	646 756 40	Air intake pipe	1	InternKon: 660 239 40 / 17
?	646 754 40	Air intake pipe	1	InternKon: 660 239 40 / 10
?	646 773 40	Pipe	1	InternBDB: 203x1,5x100 \| InternKon: 660 239 40 / 18
?	414 318 40	Clamp	5	InternBDB: Rasmussen 1 SGU 152x25 SK \| InternKon: 660 239 40 / 12
?	255 968 40	Plug	1	InternBDB: vsti R 1"-ed \| InternKon: 660 239 40 / 13
?	370 753 99	Twin nipple	2	InternBDB: 1/8 /2990
?	501 527 98	Elbow union	2	InternBDB: 120-1/8 /2950 \| InternKon: 439 894 40 / 8
?	372 446 99	Union	2	InternBDB: DL 6 /2353 \| InternKon: 439 894 40 / 9
?	215 622 99	Pipe Ш 6 Bulk ware, state length required	-2	InternBDB: 6x1 /2391 \| InternKon: 439 894 40 / 11
?	370 500 99	Union	2	InternBDB: CL 6 /2353 \| InternKon: 439 894 40 / 10
?	145 895 40	Maintenance switch	2	InternBDB: Ma. u. Hu. 390 006 2901
?	646 755 40	Air intake pipe	2	InternKon: 660 239 40 / 19
?	501 165 98	Bolt	14	InternBDB: 5/8-11 UNC x 1 1/2 10.9 \| InternKon: 439 894 40 / 16
?	440 388 40	Lip-type profile Bulk ware, state length required	-2	InternBDB: GHE 461 0070 \| InternKon: 439 894 40 / 13
?	167 693 40	Flex. header ca. 1400 lg. Bulk ware, state length required	-2	InternBDB: 461 0031 schwarz \| InternKon: 439 894 40 / 15
?	270 658 40	Accordion hose	1	InternBDB: P 10 - 5611 \| InternKon: 660 239 40 / 15
?	634 866 40	Clamp	2	InternBDB: GBS 8091.216-25-W2-1 TLG; 660 239 40 / 438 894 40 \| InternKon: 660 239 40 / 17

Komatsu H135S S/N 61064 parts catalog PDF

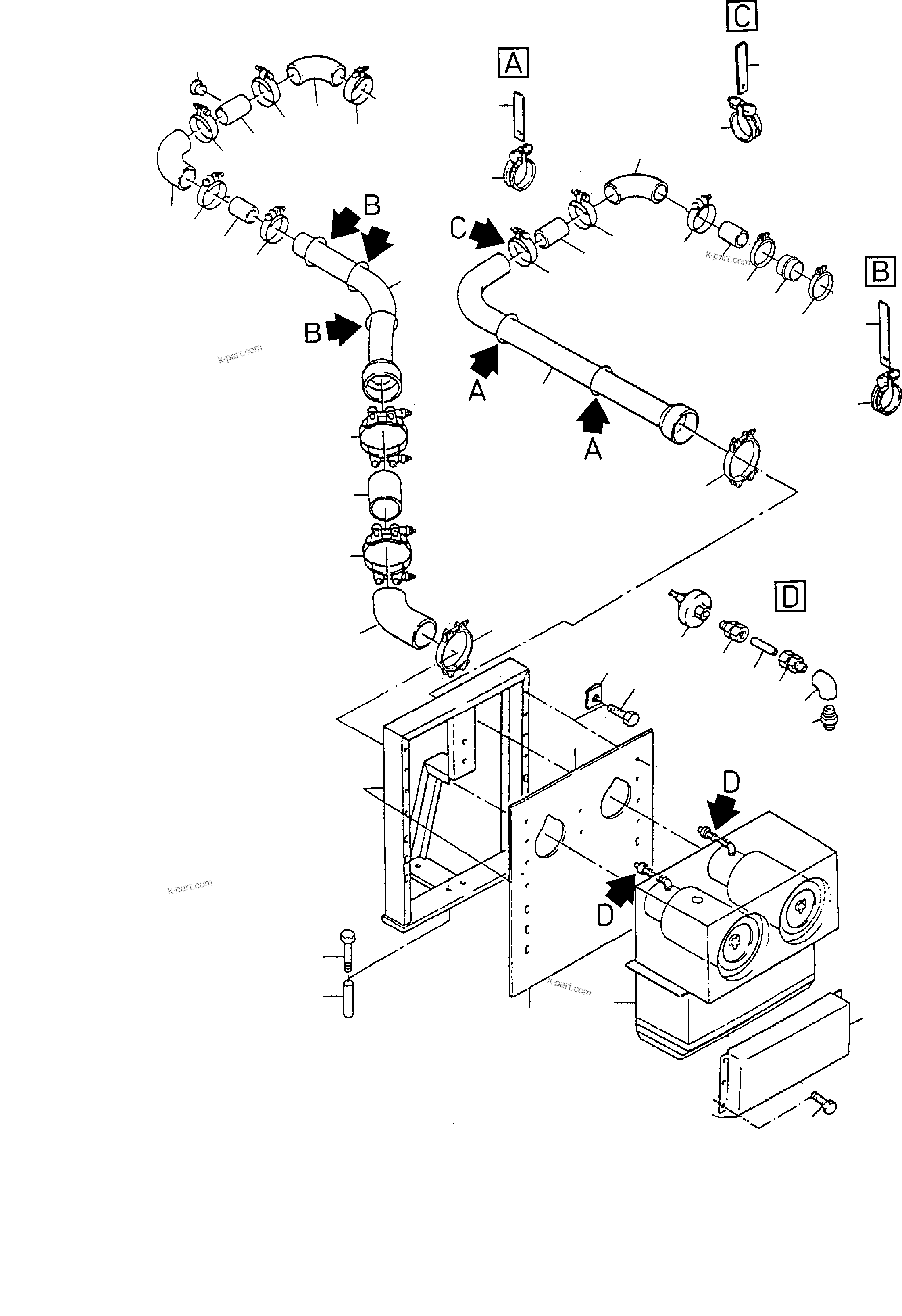

AIR CLEANING SYSTEM (116-1215c) in H135S S/N 61064. Diagram image and parts list.
