PC50MR-2 S/N F00103 AND UP

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	708-3S-00461	PUMP, ASSEMBLY	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	708-3S-01523	PUMP, SUBASSEMBLY	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	708-1S-04253	CASE, SUBASSEMBLY	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?		CASE	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?		PLUG	5	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?		PLUG	2	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	708-3S-13441	CAM	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	04260-01270	BALL, STEEL	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	708-3S-14140	SPACER	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	708-1S-13420	PIN	2	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	01252-60616	BOLT, HEXAGON SOCKET HEAD	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	01252-61235	BOLT, HEXAGON SOCKET HEAD	4	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	04020-01024	PIN, DOWEL	2	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	07000-11006	O-RING	4	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	07000-12125	O-RING	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	708-3S-04280	CAP, SUBASSEMBLY	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?		CAP	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?		PLUG	6	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	708-21-12760	BEARING	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	720-68-19610	PIN	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	708-3S-13460	BALL	2	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	708-3S-04610	VALVE, SUBASSEMBLY	2	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?		BALL	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?		SEAT	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?		PLUG	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?		PLUG	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP
?	07000-11010	O-RING	1	SN: F00555-F00557 \| SN: F00562-F00562 \| SN: F00704-F00704 \| SN: F00713-F00714 \| SN: F00720-F00720 \| SN: F00729-UP

Komatsu PC50MR-2 S/N F00103 AND UP parts catalog PDF

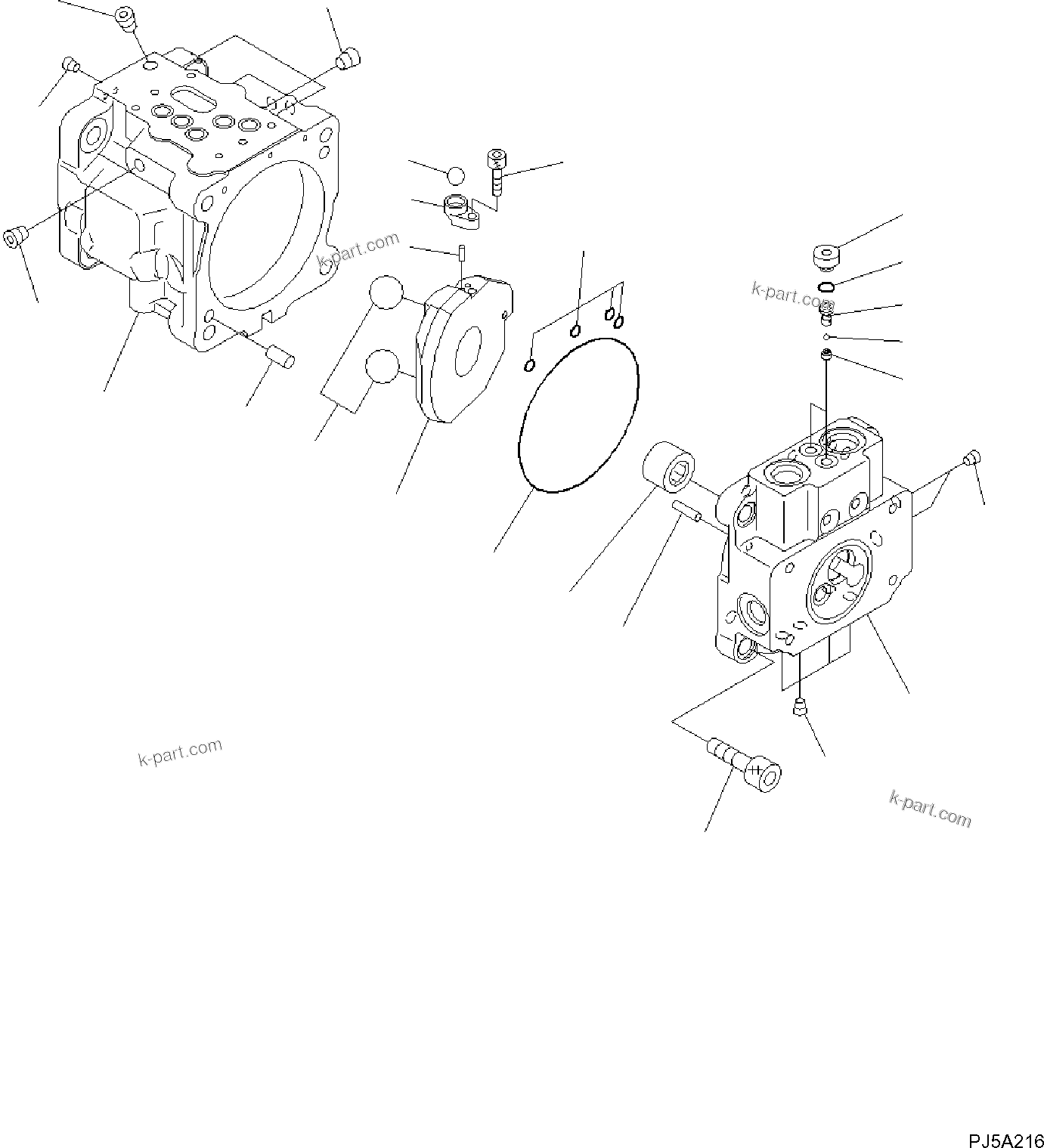

HYDRAULIC PUMP (1/4) (6115) in PC50MR-2 S/N F00103 AND UP. Diagram image and parts list.
