#	Part Number	Partname	Quantity	Reference
?	942 085 40	Operator's cab assy. Electro LT PC 4000-6E	1
?	942 096 40	Operator's cab assy. Electro NT PC 4000-6E	1
?	942 093 40	Operator's cab assy. PC 5500-6	1
?	942 094 40	Operator's cab assy. PC 8000-6	1
?	942 099 40	Operator's cab assy. Electro LT PC 8000-6E	1
?	942 097 40	Operator's cab assy. Electro NT PC 8000-6E	1
?	942 095 40	Operator's cab assy. VHMS PC 4000-6,5500-6	1
?	942 098 40	Operator's cab assy. VHMS PC 8000-6	1
?	954 305 40	Operator's cab assy. Electro NT VHMS PC 5500-6E	1
?	954 304 40	Operator's cab assy. Bulletproof PC 8000-6	1
?	954 301 40	Operator's cab assy. Electro NT-Kysor PC 8000-6E	1
?	954 302 40	Operator's cab assy. Electro NT Bulletproof PC 8000-6E	1
?	796 431 73	Door assy.	1
?	390 199 40	Hinge	2
?	356 533 40	Catch	1
?	374 222 40	Detent	1
?	368 431 40	Pane	1
?	356 535 40	Compression spring	1
?	356 536 40	Threaded rod	1
?	796 430 73	Lever	1
?	345 178 99	Dowel pin	1
?	332 110 99	Nut	2
?	350 748 99	Fork end	2
?	350 742 99	Fork end	1
?	002 827 98	Pin	1
?	002 823 98	Pin	2
?	769 602 73	Handle	1
?	516 643 98	Bolt	2
?	769 603 73	Cylinder button	1
?	769 652 73	Profiled joint ca. 4300 1,5-2	-2
?	319 238 99	Screw	2
?	356 130 40	Silent bloc	2
?	635 262 40	Stop	1
?	318 297 99	Bolt	4
?	635 261 40	Handle with lock	1
?	318 308 99	Bolt	4
?	796 429 73	Handle	1
?	796 428 73	Tappet	1
?	769 607 73	Door moulding	1
?	321 187 99	Fillister-head screw	11
?	769 609 73	Rod for mirror	2
?	769 610 73	Mirror	2
?	516 246 98	Screw	16
?	769 611 73	Push-toggle switch	2
?	769 612 73	Graphical symbol - spotlight	1
?	769 613 73	Graphical symbol - indoor lighting	1
?	769 614 73	Tail piece	2
?	769 615 73	Antenna	1
?	461 562 40	Extension cable	1
?	896 705 40	Pair of speakers	1
?	769 188 73	Dome lamp	4
?	769 189 73	Bulb 28V 20W	4
?	770 079 73	Door, steel construction	1
?	770 080 73	Washer	1
?	770 081 73	Blind rivet-nut	15
?	769 617 73	Socket installation	3
?	795 989 73	Harness-Spread beam headlamp	1
?	795 990 73	Cable Union	4
?	941 143 40	Head light assy. with lamp	4
?	797 352 73	Lamp	4
?	634 009 40	Spotlight	1
?	507 383 99	Halogen lamp	1
?	769 155 73	Seal	1
?	769 156 73	Pane, white	1
?	307 752 99	Bolt	1
?	797 510 73	Co-Driver's seat	1	991-0907
?	797 511 73	Safety belt - seat shell	1
?	324 391 40	Blower	1
?	269 055 40	Air filter	1
?		Clamp	2
?		Hose	-2
?		Hood	1
?	793 798 73	Window shade, front window standard	1
?	793 799 73	Window shade, front window standard	1
?	793 799 73	Window shade	2
?	414 327 40	Grating	1
?	317 318 40	Wing nut, plastic	4
?	318 391 99	Bolt	4
?	350 562 99	Grease nipple	1
?	621 108 40	Pin	1
?	390 600 40	Bushing	2
?	390 601 40	Bushing	1
?	340 612 99	Washer	2
?	342 061 99	Cotter pin	2
?	906 783 40	Eyebolt	4
?	795 996 73	Door	1
?	769 631 73	Band roller	2
?	769 632 73	Sash lock	2
?	769 651 73	Profiled joint	-2
?	769 633 73	Air intake	6
?	793 800 73	Filter box	1
?	769 635 73	Hot air jet	4
?	769 636 73	Adjustment	1
?	769 637 73	Hot air jet, long	4
?	793 801 73	Filter box	1
?	516 247 98	Tapping screw	24
?	516 243 98	Bolt	8
?	332 201 99	Nut	4
?	318 293 99	Bolt	4
?	516 244 98	Screw	6
?	334 649 99	Nut	10
?	770 070 73	Cap	4
?	770 071 73	Hinge for Panel	2
?	793 806 73	Filter mat	1
?	793 802 73	Round nozzle	1
?	508 900 98	Bolt	8
?	793 803 73	Filter mat	1
?	769 645 73	Ventilation	1
?	770 074 73	Spagnolet for ventilation	4
?	769 646 73	Ice box door	1
?	770 075 73	Handle - ice-box door	1
?	770 071 73	Hinge - ice-box door	2
?		Operation panel - base	1
?		Operation panel - upper ECS-ETM	1
?		Operation panel - upper VHMS	1
?	796 831 73	Cover plate, if only one heater is mounted	1
?	797 419 73	Key to fig.-no.86	1
?	770 378 73	Retainer top with cable	2
?	770 377 73	Retainer lower	2
?	770 089 73	Thermostat	1
?	698 375 73	Electric motor	1
?	698 376 73	Impeller	1
?	698 377 73	Resistor	1
?	307 693 99	Bolt	6
?	340 500 99	Washer	6
?	318 574 99	Screw	6
?	796 988 73	Distance bushing	4
?	796 989 73	Distance bushing	2
?	796 353 73	Shade retainer, in front on sides	2
?	796 354 73	Shade retainer, in rear, l.h. side	1
?	796 355 73	Shade retainer, in rear, r.h. side	1
?	797 588 73	Hammer	1
?	797 589 73	Retainer	1
?	504 784 98	Screw	2

Komatsu PC4000-6E S/N 08206 parts catalog PDF

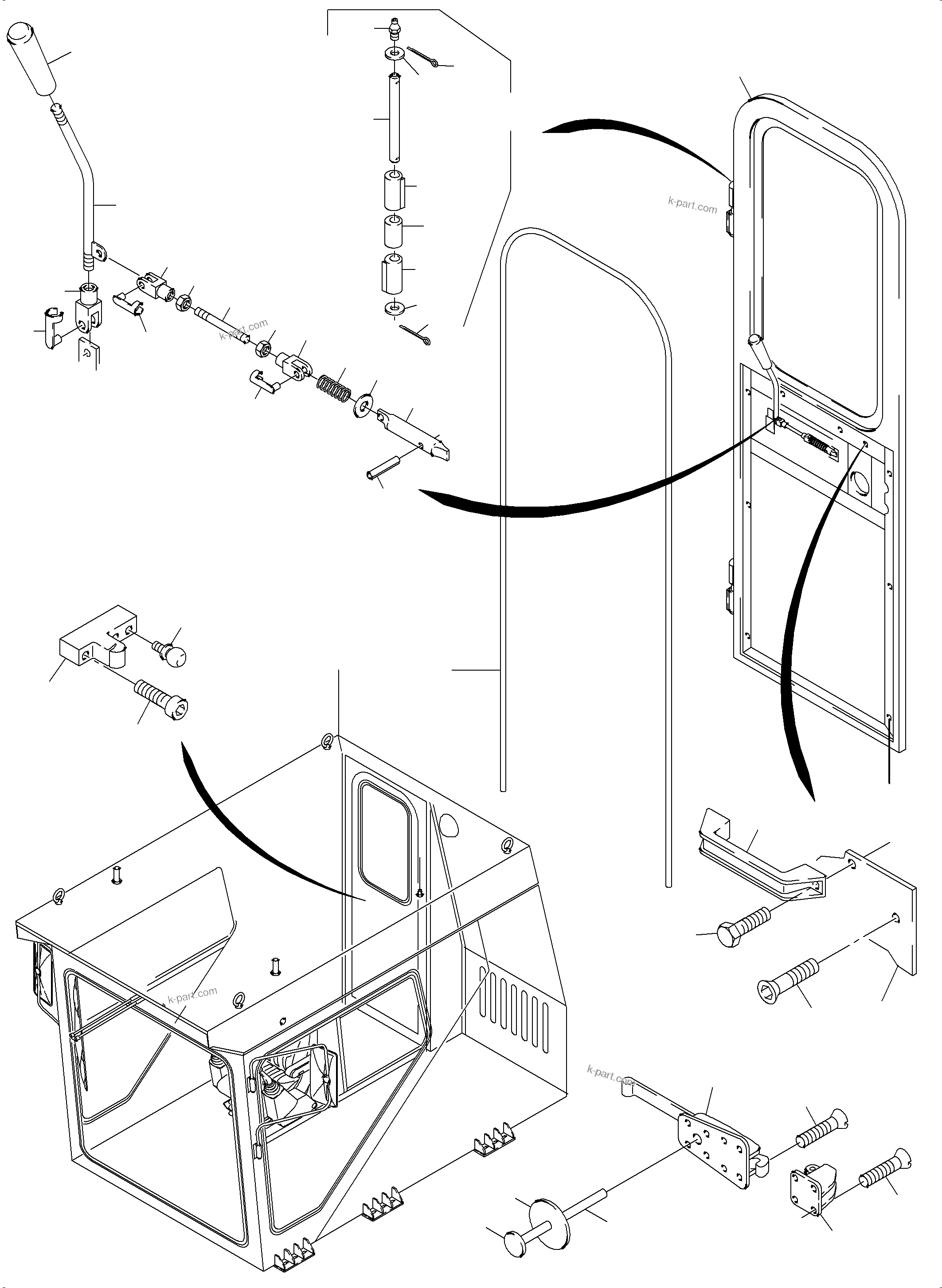

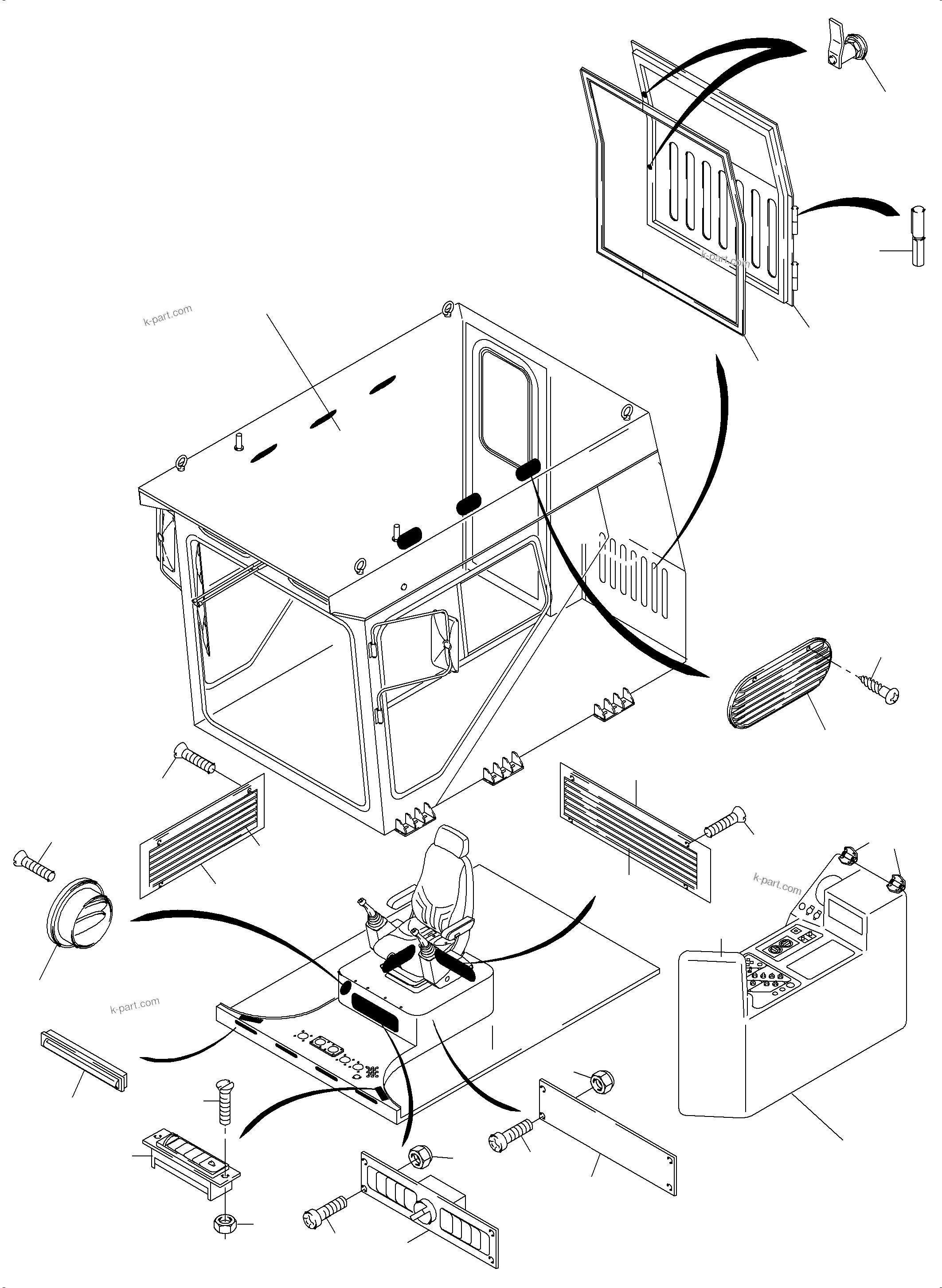

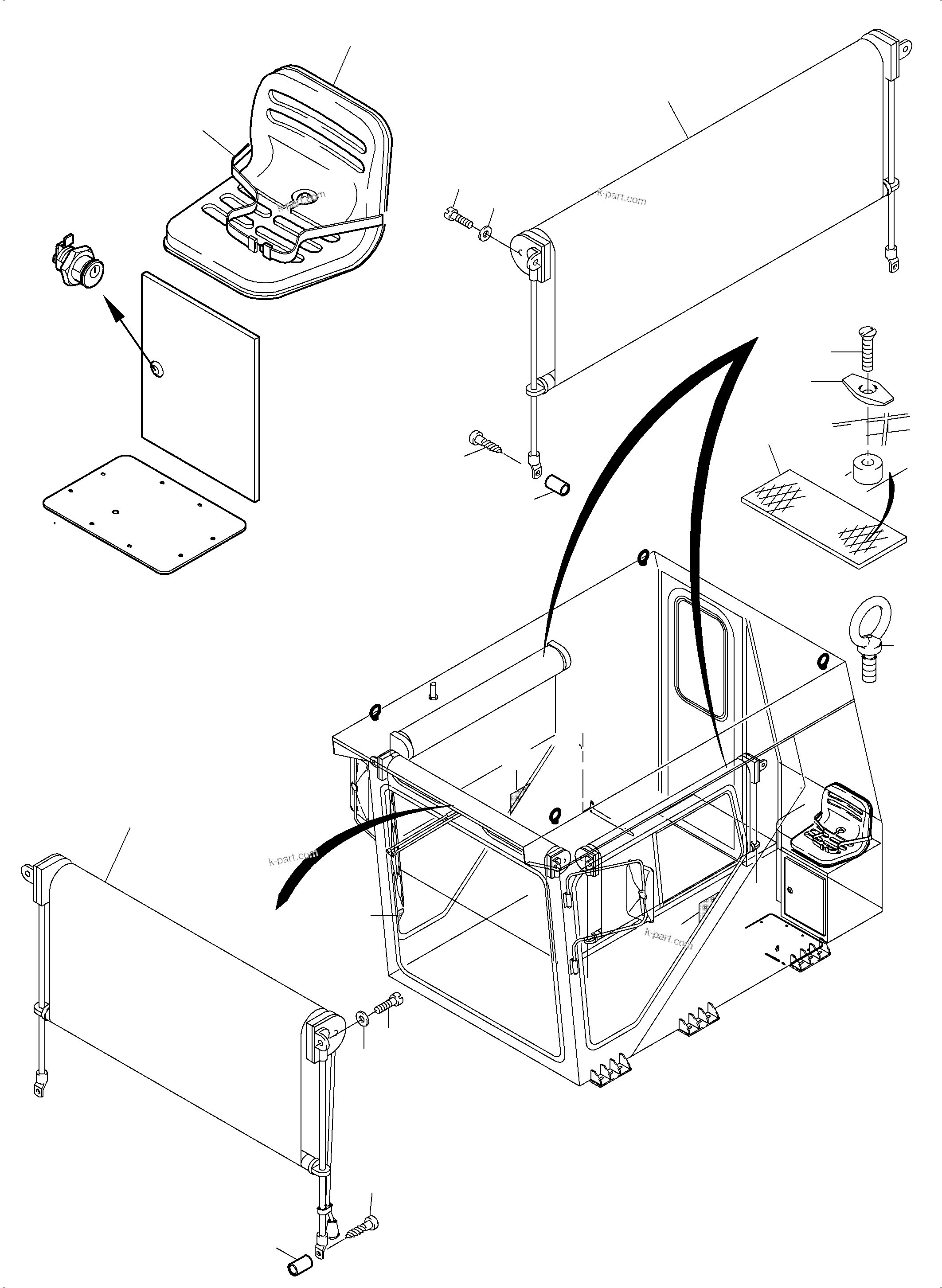

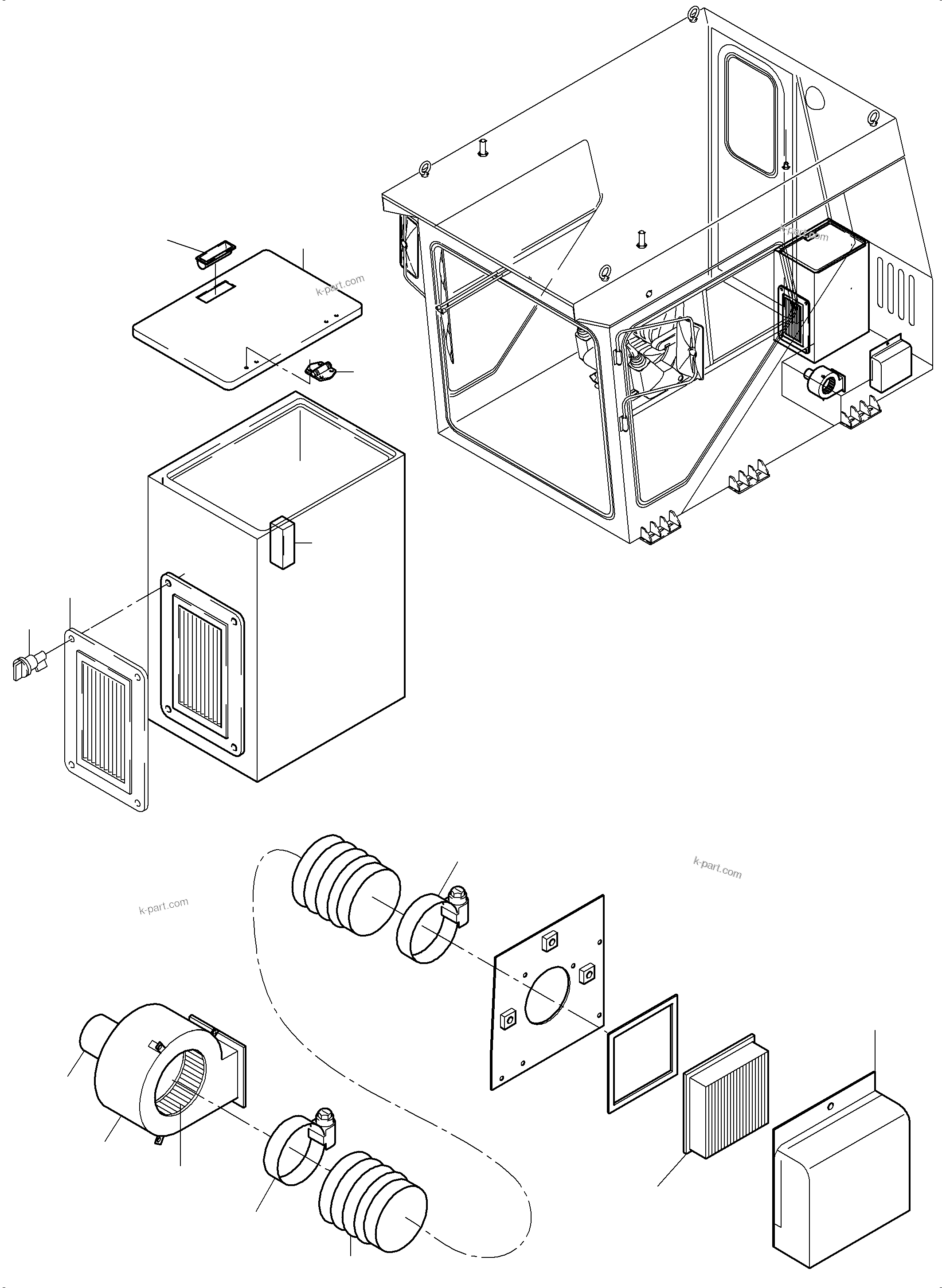

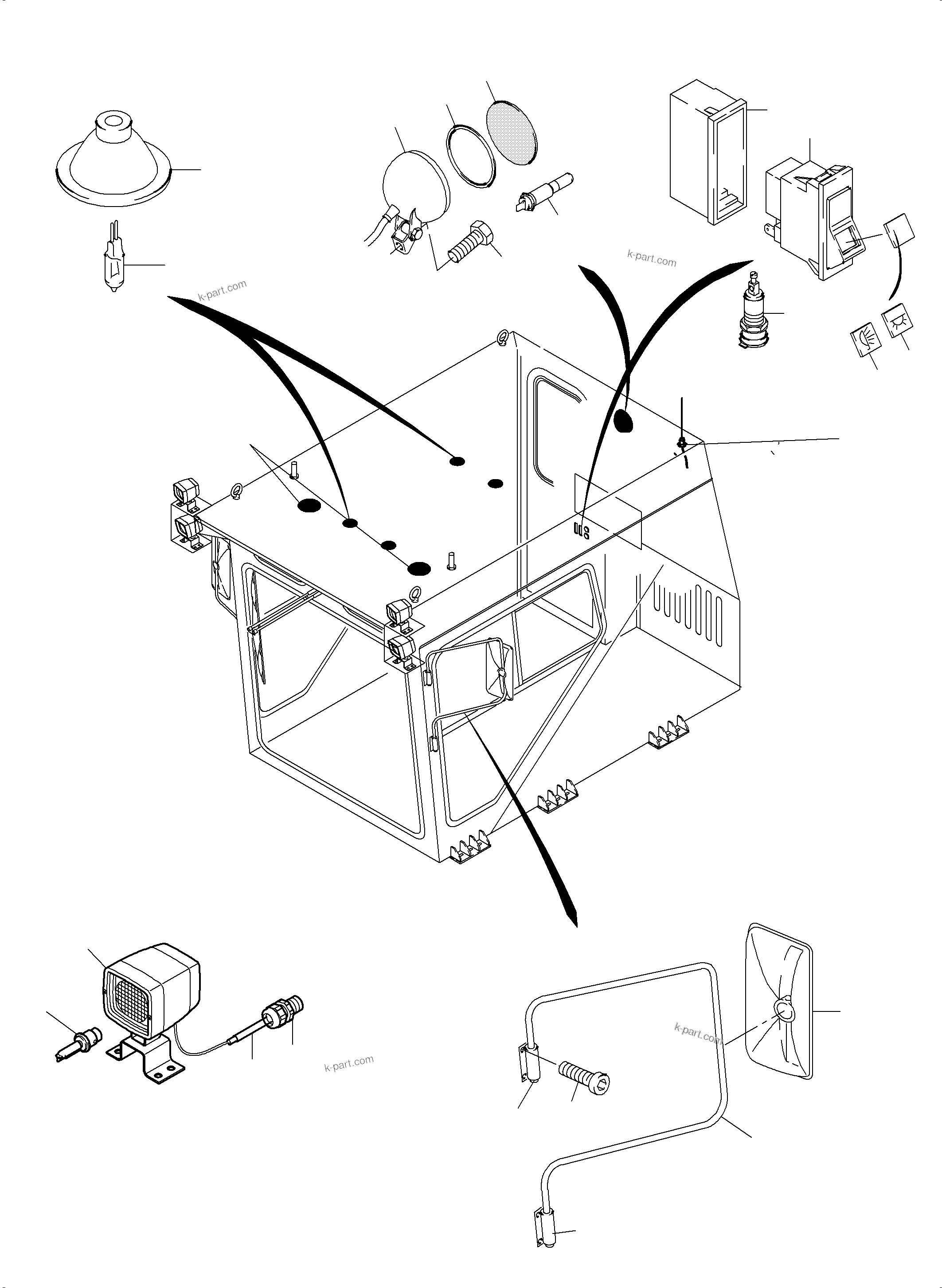

OPERATOR'S CAB (991-0901) in PC4000-6E S/N 08206. Diagram image and parts list.
