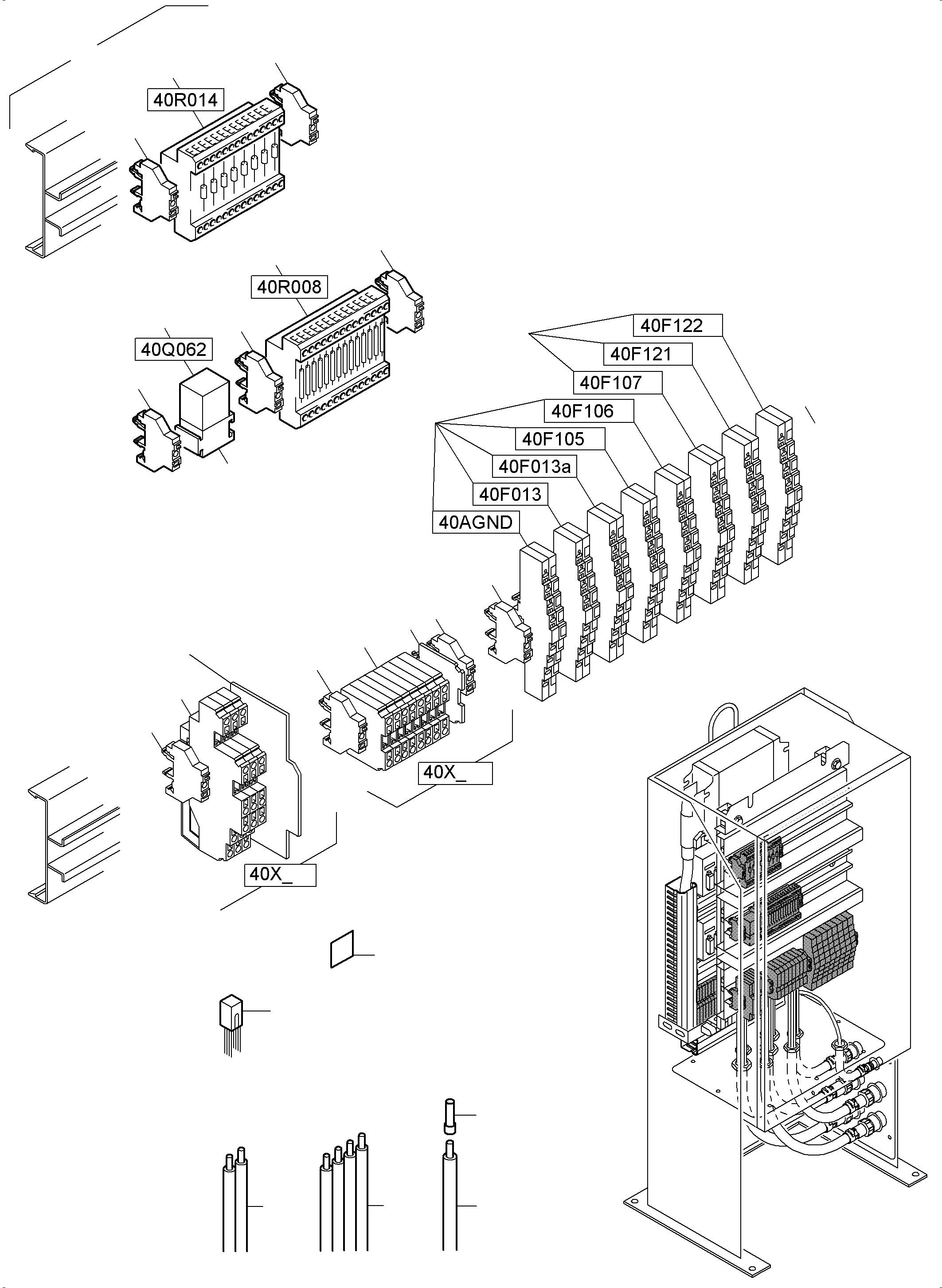

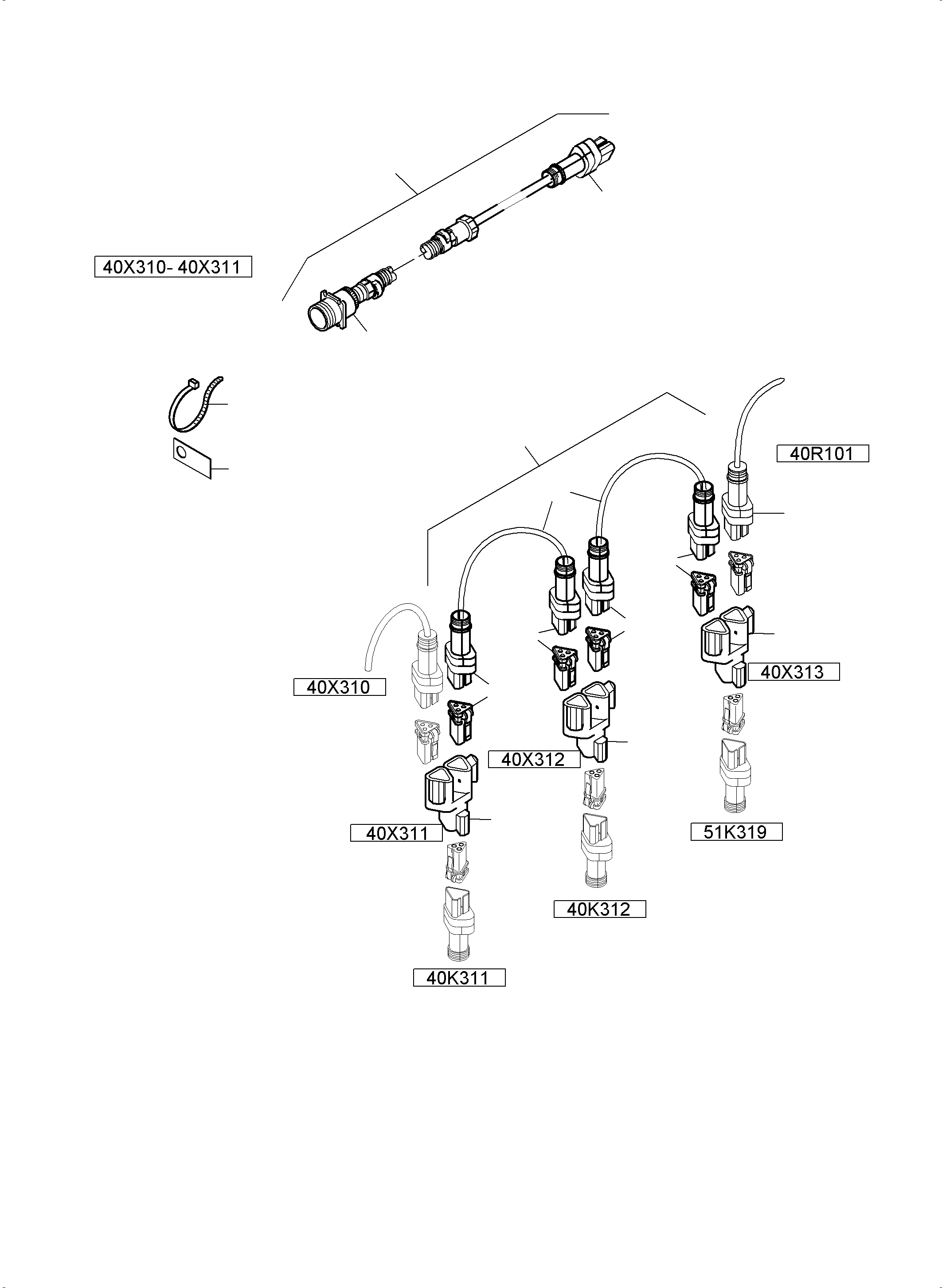

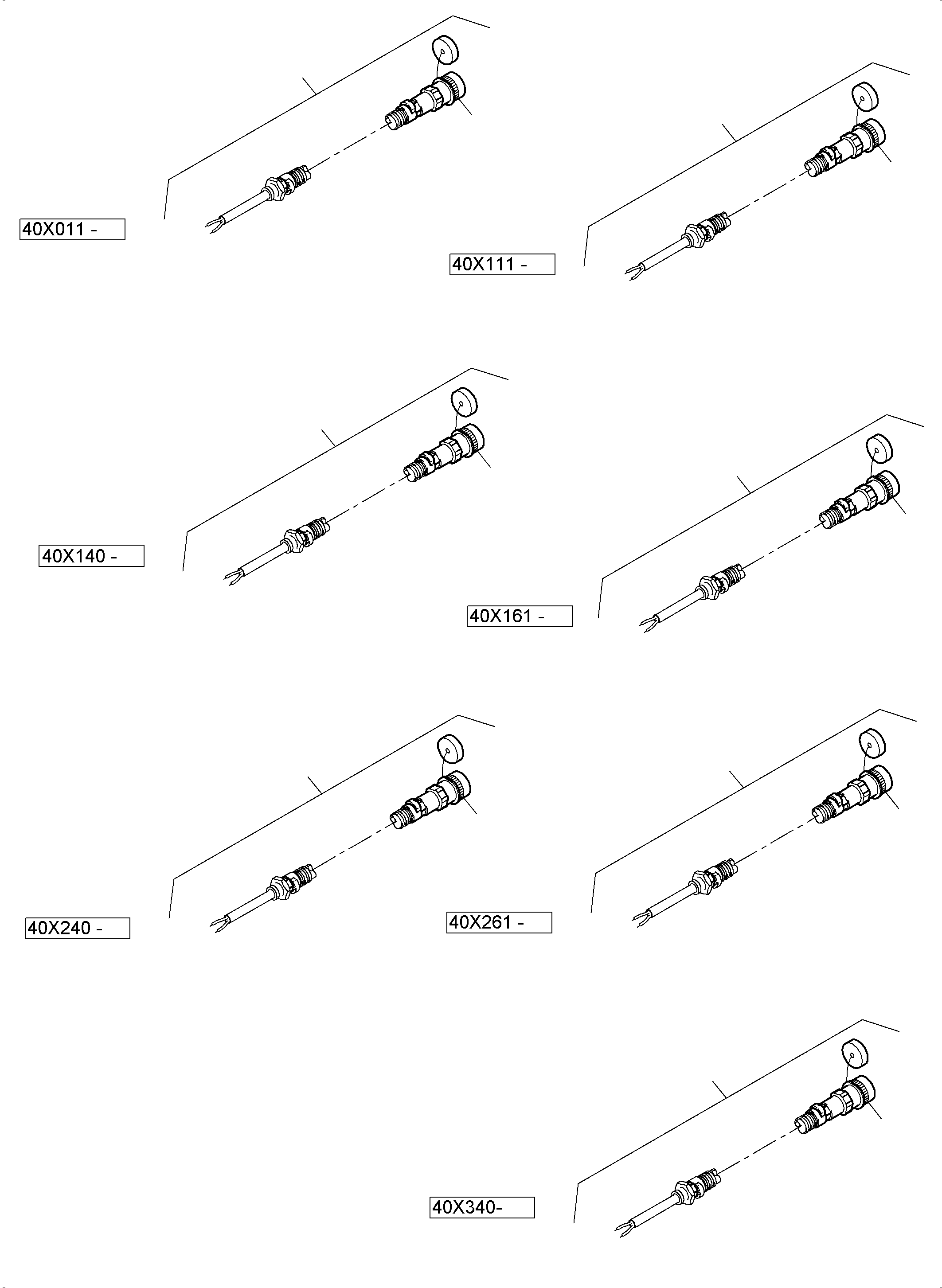

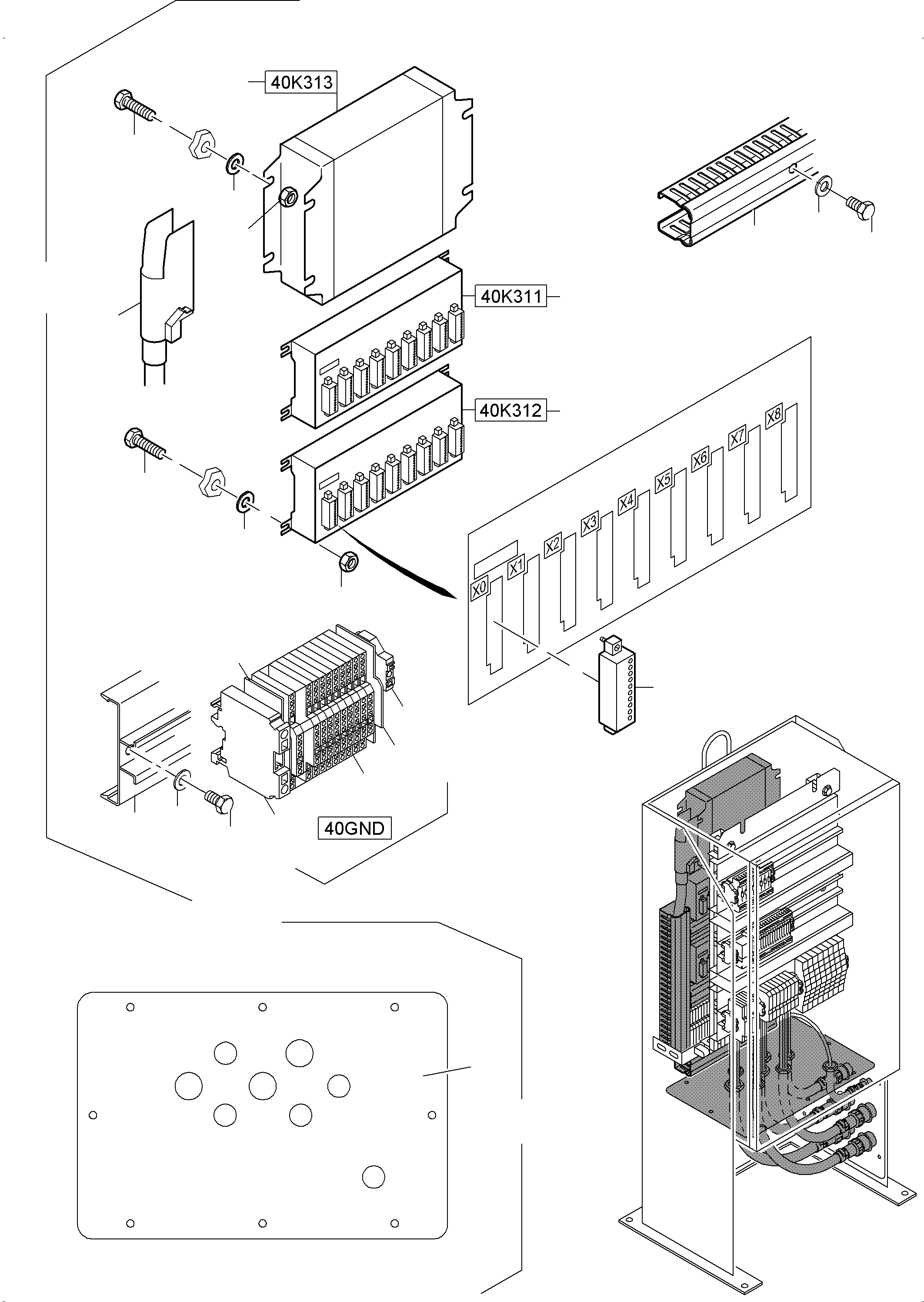

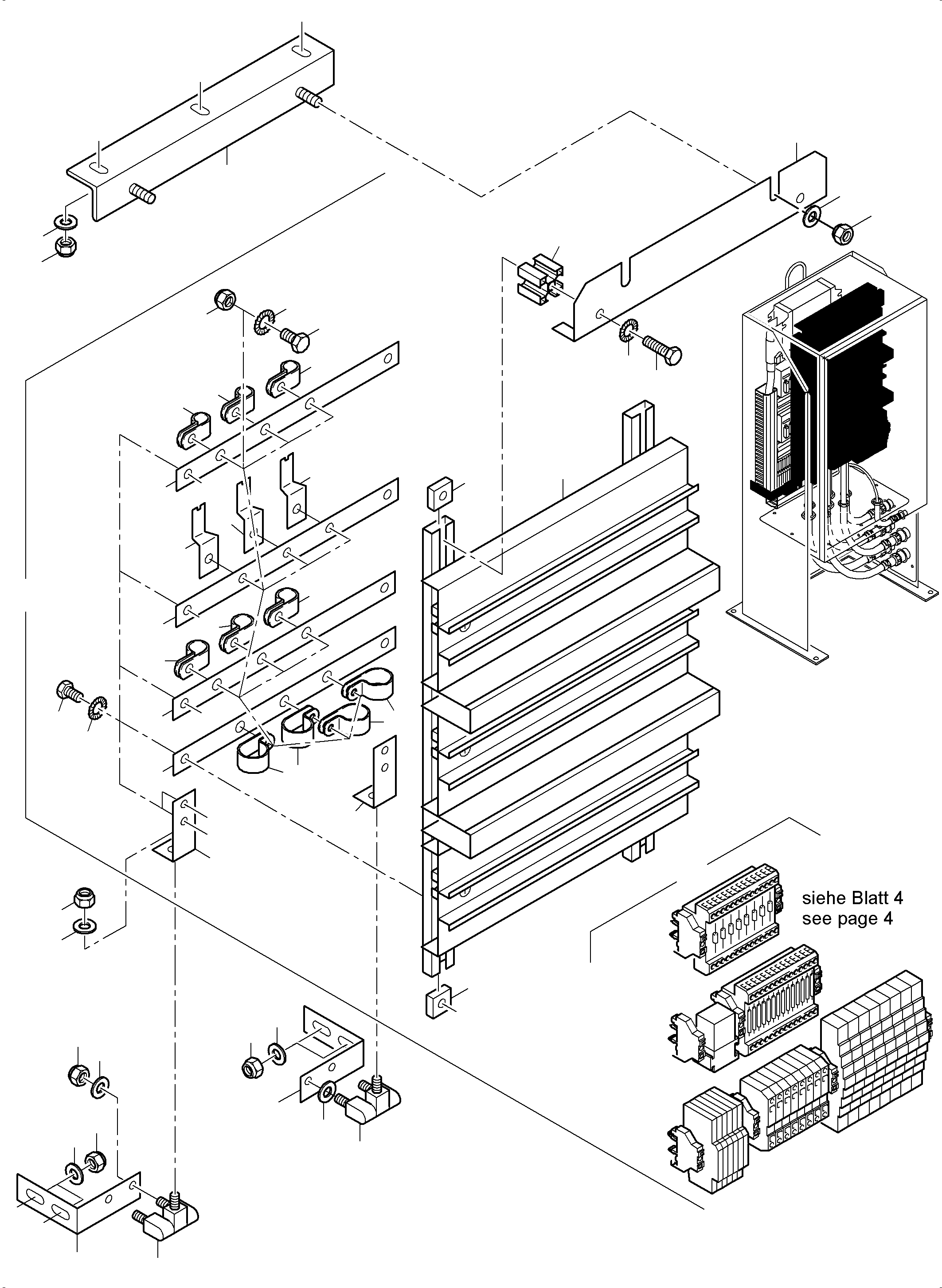

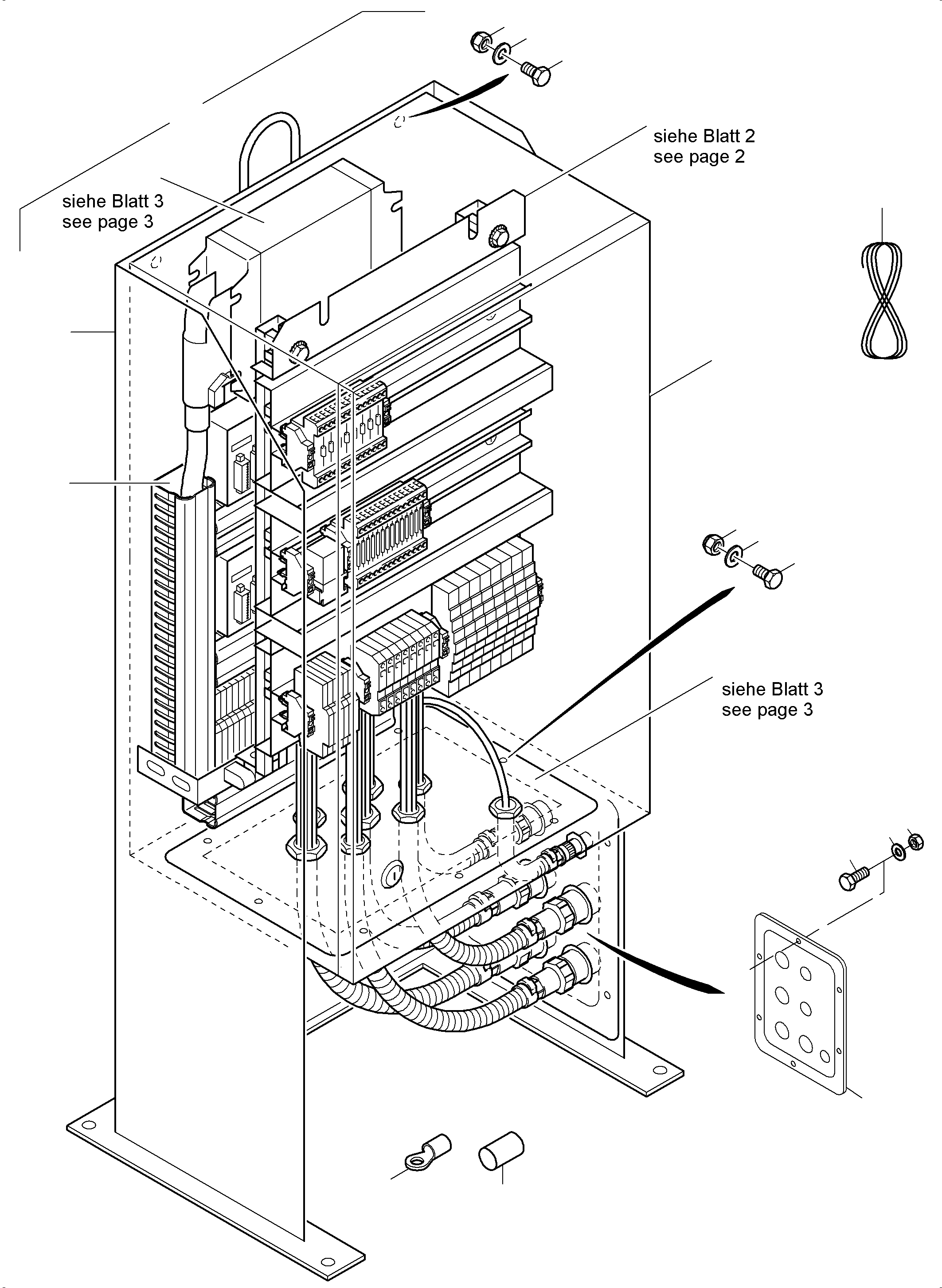

Diagram image 1 of 6

PC4000-6 S/N 08210

10 11 12 13 14 15 16 17 18 25 26 27 28 29 39 40 41 42 43 44 45 47 48

PC4000-6 S/N 08210

13 26 33 33 34 35 36 36 36 36 36 37 37 37 37 37 38 46 46 50 51 52 52 53 54 55 56 56 57 58 59 60 60 61 62 63 63 64 64 65 66 66 66 67 67 67 68 68 69 69 69

PC4000-6 S/N 08210

102 103 104 105 110 27 28 29 80 81 82 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97

PC4000-6 S/N 08210

100 101 11 120 121 122 123 124 124 125 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 141 141 142 142 32 40 50 96 97 97 97 97 97 97 97 97 97 97 98 99

PC4000-6 S/N 08210

111 112 113 114 115 116 117 145 150 155 160 160 160 165 40 40 40 40 40 40 40

PC4000-6 S/N 08210

118 170 175 175 175 176 176 177 178 179 30 31 31 31 32

#	Part Number	Partname	Quantity
10	960 126 40	Switch cabinet assy. ORT 40	-2
11	957 410 40	Switch cabinet retainer	1
12	307 773 99	Bolt	4
13	512 476 98	Nut	8
14	340 465 99	Washer	4
15	957 494 40	Socket plate	1
16	307 646 99	Bolt	6
17	512 465 98	Nut	6
18	340 463 99	Washer	6
25	950 188 40	Switch cabinet	1
26	960 168 40	Switch framing assy.	1
27	960 572 40	Mounting plate assy.	1
28	960 124 40	Switch cabinet plate assy. with harnesses	1
29	949 128 40	Seal	1
30	957 462 40	Cable can bus H-tank	1
31	958 955 40	Bushing assy. with rubber grommet	6
32	950 435 40	Cable	-2
33	950 187 40	Hinge	2
34	957 071 40	Angle	1
35	957 413 40	Angle	1
36	334 599 99	Nut	11
37	340 507 99	Washer	11
38	957 072 40	Angle	1
39	515 253 40	Cord 500lg	-2
40	517 487 98	Cable shoe	1
41	906 947 40	Cable shoe	1
42	940 913 40	Warmth shrink hose	-2
43	318 603 99	Bolt	8
44	518 546 98	Washer	8
45	332 331 99	Nut	8
46	340 508 99	Washer	4
47	941 844 40	Protection hose	-2
48	950 211 40	End Grommet	4
50	960 169 40	Switch framing assy.	1
51	950 241 40	Frame	1
52	957 439 40	Retainer	2
53	957 440 40	Retainer	1
54	957 441 40	Retainer	1
55	957 442 40	Stop	1
56	957 073 40	Angle	2
57	307 748 99	Bolt	12
58	307 445 99	Bolt	12
59	505 383 98	Bolt	2
60	518 594 98	Lock washer	14
61	518 547 98	Lock washer	12
62	507 037 98	Nut	12
63	950 242 40	Sliding Nut	14
64	950 243 40	Sliding nut cage	14
65	950 244 40	Assembly rail 60lg	-2
66	0819320010	Clip	3
67	0443451010	Clamp	3
68	0443452110	Clamp NW17	4
69	0443550810	Clamp	3
80	941 431 40	Contoller housing	1
81	960 566 40	Plug aasy	1
82	941 430 40	Modul	2
83	941 412 40	Plug connector	18
84	270 873 40	Cable channel	-2
85	655 518 40	Cable channel	-2
86	307 671 99	Bolt	8
87	332 202 99	Nut	8
88	518 314 98	Washer	8
89	307 730 99	Bolt	4
90	332 331 99	Nut	8
91	518 546 98	Washer	4
92	505 955 99	Mounting rail	-2
93	950 339 40	Clip	1
94	950 185 40	Protective wire clip	35
95	906 773 40	Cover plate	1
96	906 613 40	Cover plate	1
97	940 673 40	Clamp	1
98	906 624 40	Marker	7
99	906 625 40	Marker	2
100	906 626 40	Marker	2
101	906 627 40	Marker	3
102	501 670 98	Bolt	15
103	145 743 40	Washer	15
104	320 816 99	Bolt	2
105	518 560 98	Lock washer	2
110	960 162 40	Switch cabinet plate	1
111	960 141 40	Harness 40X011 - 40	1
112	960 142 40	Harness 40X111 - 40	1
113	960 143 40	Harness 40X140 - 40	1
114	960 144 40	Harness 40X161 - 40	1
115	960 145 40	Harness 40X240 - 40	1
116	960 147 40	Harness 40X261 - 40	1
117	960 146 40	Harness 40X340 - 40	1
118	957 461 40	Harness 40X310-40X311	1
120	901 392 40	Resistor array assy.	1
121	655 748 40	Diode array	1
122	941 734 40	Relay	1
123	941 686 40	Relay socket	1
124	941 502 40	Potencial clamp	10
125	941 503 40	Cover plate	10
126	906 612 40	Through clamp 2.5	12
127	906 772 40	Cover plate	1
128	906 768 40	Through clamp 6,0	8
129	906 775 40	Bridge	6
130	906 628 40	Marker	2
131	515 213 40	Cable 1,0	-2
132	515 214 40	Cable 2,5	-2
133	655 873 40	Cable 1,5	-2
134	940 169 40	Cable 4x1	-2
135	907 554 40	Cable 2x0,75	-2
136	500 090 98	Wire end ferrule 0,75-6	13
137	635 042 40	Wire end ferrule 1,5	70
138	907 640 40	Wire end ferrule 2,5	1
139	269 078 40	Wire end ferrule	2
140	941 640 40	Cable 1x0,75	-2
141	941 685 40	Ground plate	8
142	906 614 40	Briding comb	1
145	950 118 40	Socket	1
150	950 121 40	Socket	1
155	950 140 40	Socket	1
160	950 125 40	Socket	3
165	950 124 40	Socket	1
170	950 170 40	Socket	1
175	906 647 40	T-Splitter	3
176	958 956 40	Bushing assy.	2
177	941 144 40	End resistor 120OHM	1
178	941 777 40	Plate	8
179	174 411 40	Cable strap	16

Komatsu PC4000-6 S/N 08210 parts catalog PDF

SWITCH CABINET ORT 40 (355-2272-1) in PC4000-6 S/N 08210. Diagram image and parts list.
