Diagram image 1 of 3

PC4000-6 S/N 08210

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08210

? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08210

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	960 539 40	Harness control plates	1
?	960 538 40	Harness pump pressure	1
?	957 354 40	Plate	4
?	937 352 40	Cable retainer	4
?	937 328 40	Retainer assy.	1
?	937 333 40	Bracket	1
?	955 627 40	Plug assy. with rubber grommet	4
?	955 671 40	Pressure measuring transducer 500 bar with plug	4
?	0443451210	Clip NW10	7
?	0443451610	Clip	21
?	0443452711	Clip NW23	8
?	0443453211	Clip NW29	16
?	0443453411	Clip	13
?	910 715 40	Clamp assy.	2
?	516 143 98	Resilient sleeve 25 lg	5
?	510 746 98	Resilient sleeve 35 lg	24
?	607 492 40	Resilient sleeve 40 lg	1
?	0819320010	Clip	46
?	307 772 99	Bolt	4
?	307 773 99	Bolt	12
?	307 445 99	Bolt	42
?	308 576 99	Bolt	10
?	308 624 99	Screw	2
?	307 804 99	Bolt	2
?	319 126 99	Bolt	8
?	507 037 98	Nut	90
?	340 508 99	Washer	112
?	507 596 98	Washer	70
?	340 467 99	Washer	2
?	952 675 40	Plug assy. with rubber grommet	42
?	950 112 40	Plug	3
?	0819105320	Pin contact	110
?	950 132 40	Protection cap	3
?	955 670 40	Socket assy with rubber grommet	8
?	958 963 40	Socket assy. with rubber grommet	4
?	346 524 40	Elbow plug	1
?	950 126 40	Socket	1
?	940 852 40	Plug	5
?	950 130 40	Protection cap	1
?	949 191 40	Hood plug protection	1
?	949 188 40	Mounting plate	1
?	340 465 99	Washer	2
?	307 775 99	Bolt	2
?	952 651 40	Plug assy.	4
?	941 791 40	Rubber grommet	8
?	941 799 40	Pressure measuring transducer 500 bar	4
?	950 189 40	Plug	42
?	950 190 40	Rubber grommet	42
?	955 669 40	Socket assy.	8
?	502 367 98	Clamp	1
?	509 875 98	Thread pin	1
?	334 599 99	Nut	1
?	958 962 40	Socket assy.	4
?	950 190 40	Rubber grommet	4

Komatsu PC4000-6 S/N 08210 parts catalog PDF

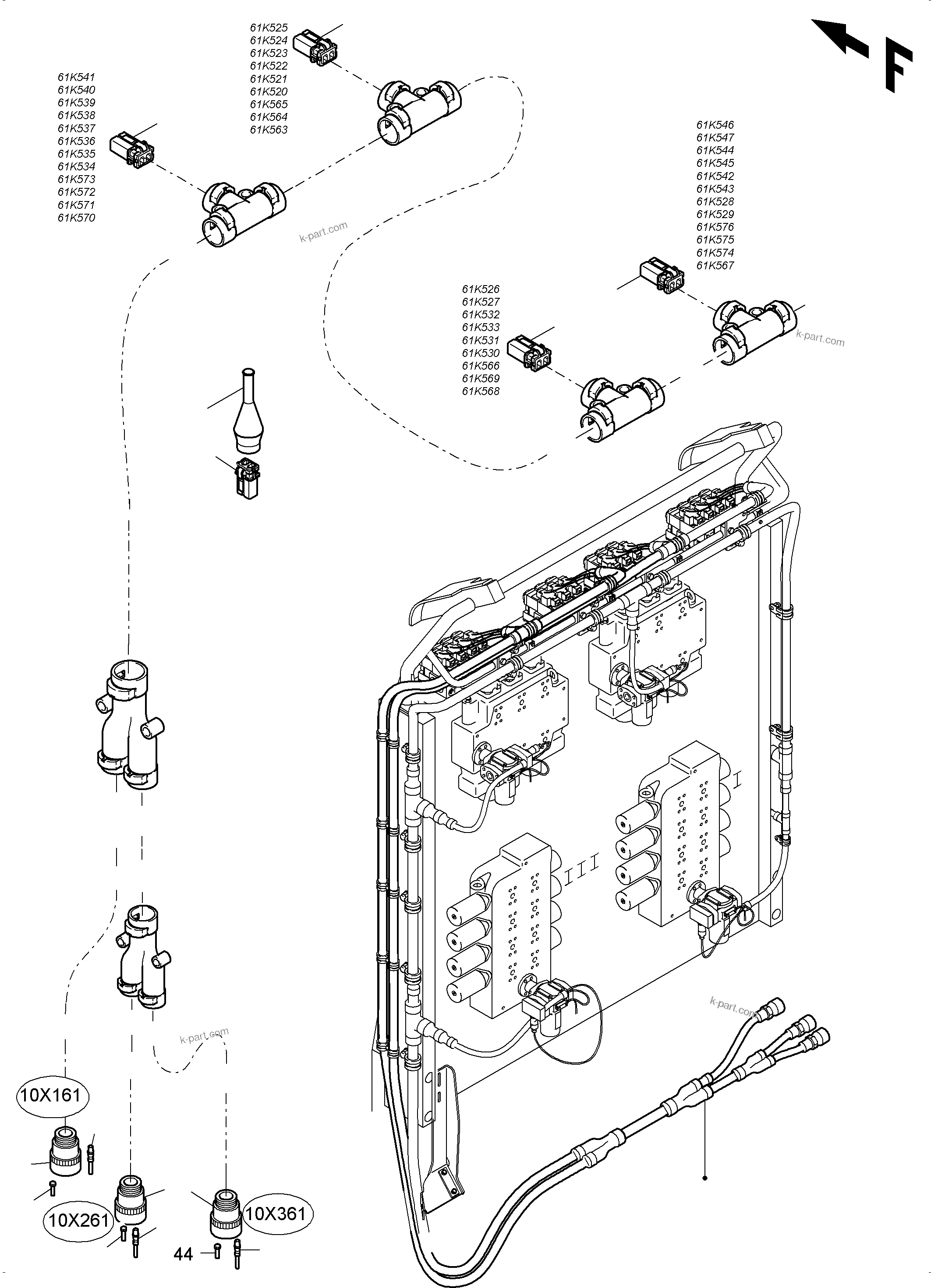

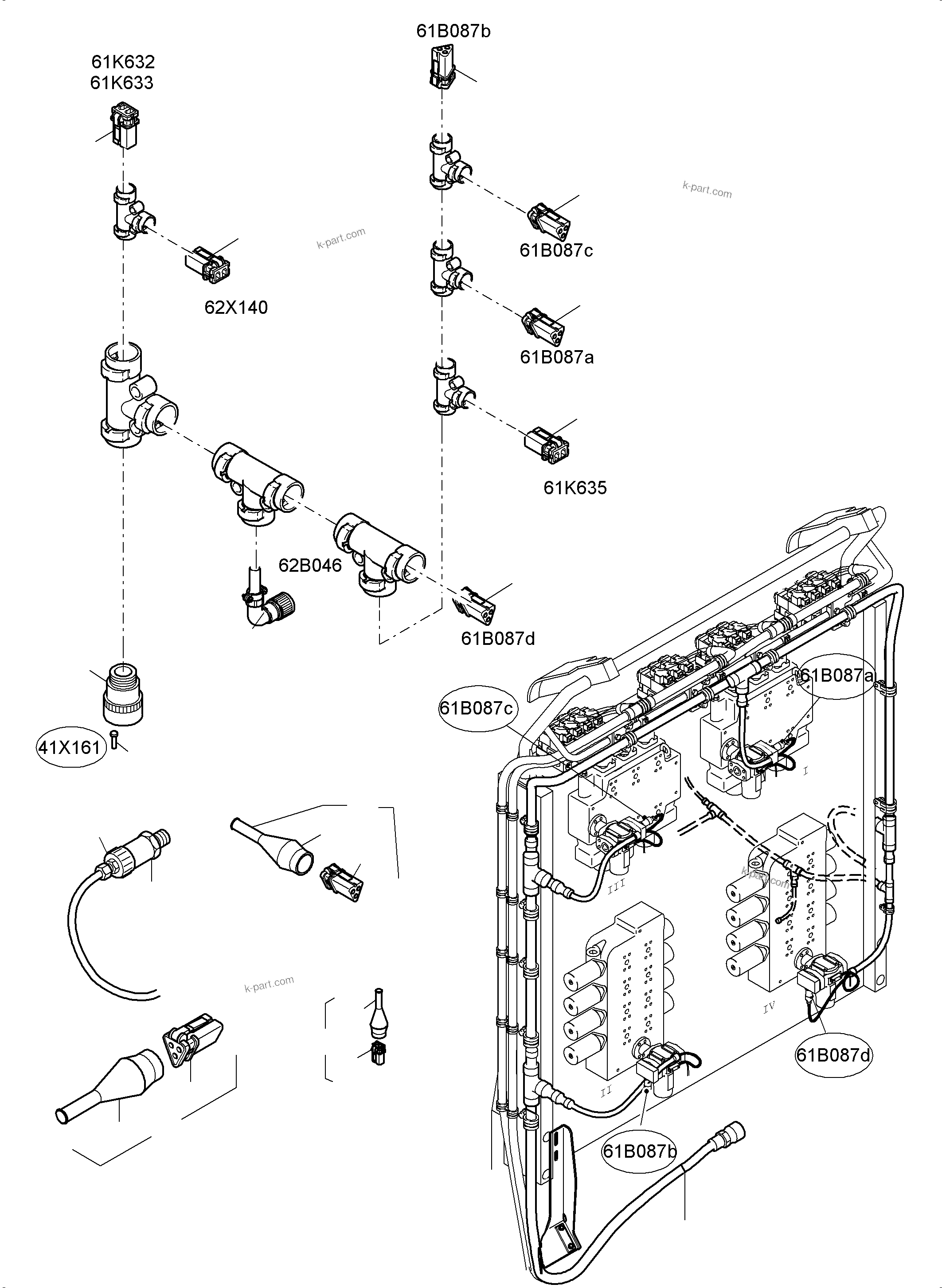

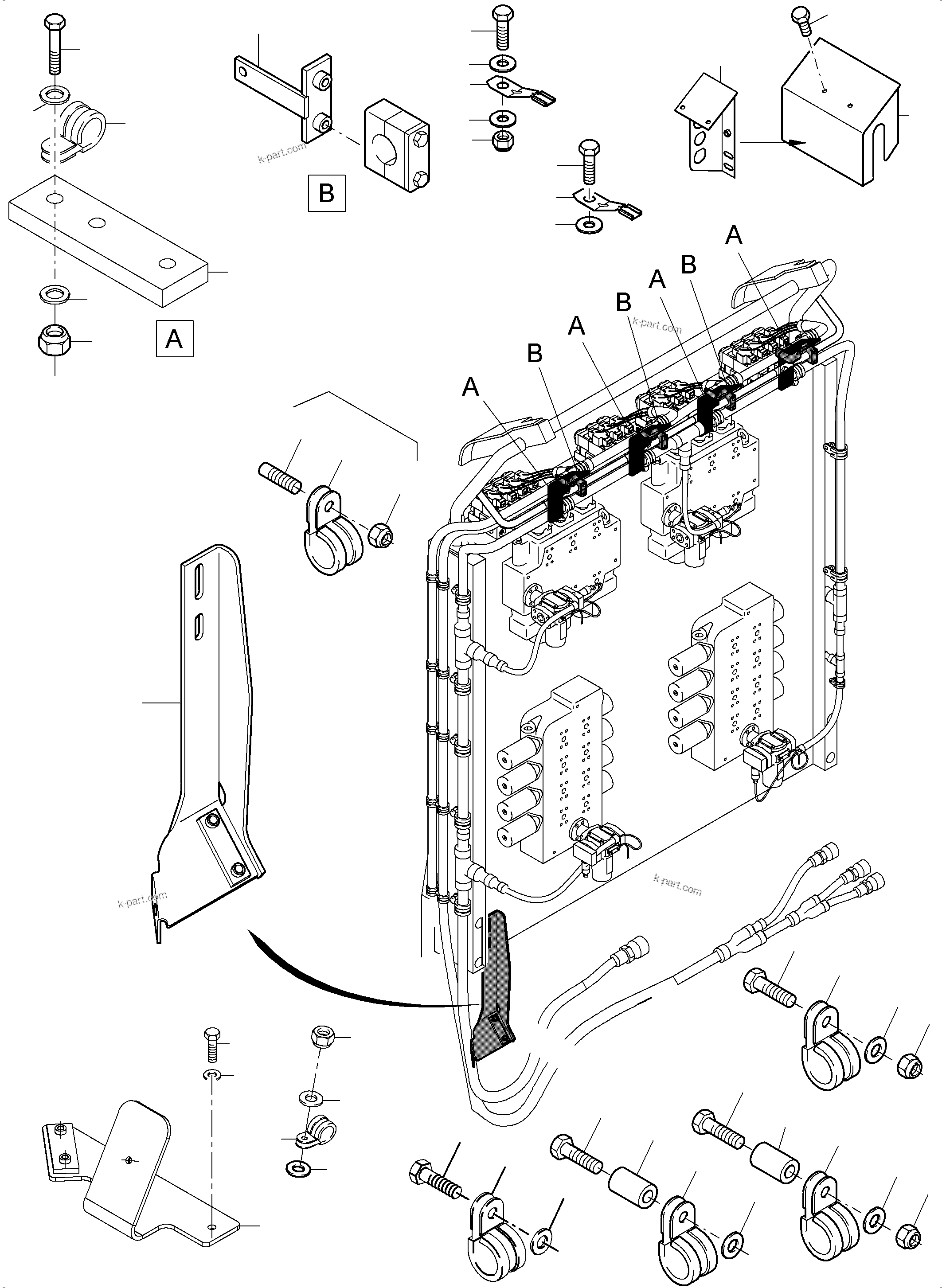

CABLES - CONTROL BLOCKS - H.P.-FILTER (355-2281b) in PC4000-6 S/N 08210. Diagram image and parts list.
