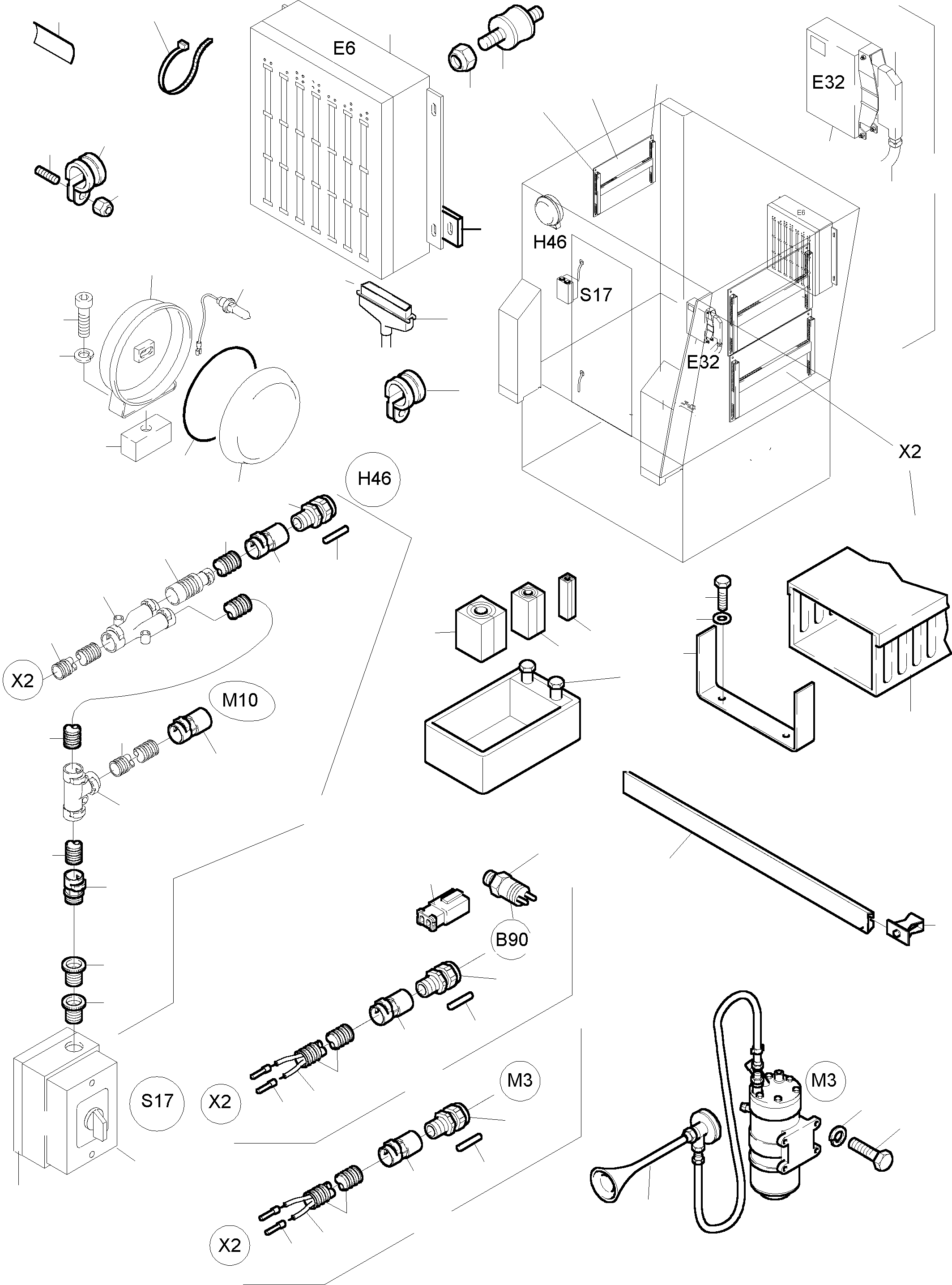

ELECTRIC - CAB SUPPORT | PC5500-6 S/N 15017 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Reference
01		Switch framing	1	515-2165h
02	634 009 40	Spotlight	1
03	440 373 40	Camswitch	1
04		Horn	1	113-2150
05	896 579 40	Temperature sensor	1
06	006 302 98	Clamp 15/15	2
07	915 510 40	Holding device	2
08	514 072 98	Bolt	4
09	902 412 40	Thread plate	4
10	350 763 99	Washer	4
11	896 742 40	Cable channel Bulk ware, state length required	-2
12	343 108 99	Lock washer	1
13	319 143 99	Screw	1
14	320 975 99	Screw	2
15	006 301 98	Clamp 12/15	3
16	507 025 98	Nut	15
17	302 030 99	Bolt	4
18	346 499 99	Lock washer	4
19	510 210 98	Thread pin	11
20	006 339 98	Clamp 18/15	3
21	551 474 40	Rail Bulk ware, state length required	-2
22	358 273 40	Series clamping	20
23	323 232 40	Sectional plate	2
24	635 007 40	Assembly rail	2
25	323 237 40	Wiring terminal	4
26	323 233 40	Wiring profile Bulk ware, state length required	-2
27	270 288 40	Wiring channel 40x25 Bulk ware, state length required	-2
28	655 517 40	Cover Bulk ware, state length required	-2
29	317 319 40	Threaded block	9
30	340 464 99	Washer	8
31	346 510 99	Lock washer	4
32	923 159 40	Harness - pedestal	1
33	916 614 40	Harness - horn	1
34	916 621 40	Harness - temperature transmitter - outer temperature	1
35	655 651 40	Cable protection hose DN 17 Bulk ware, state length required	-2
36	655 622 40	Cable union DN 12	2
37	655 622 40	Cable union DN 12	1
38	600 812 99	Reducing HPG 13,5 - PG 11	1
39	600 813 99	Reducing HPG 16 - PG 13,5	1
40	655 649 40	Cable protection hose DN 10 Bulk ware, state length required	-2
41	655 805 40	Fitting PG 9	3
42	655 799 40	Cable union PG 9	3
43	896 521 40	End pin	3
44	515 194 40	Cable 2,5 Bulk ware, state length required	-2
45	056 070 40	Cable sleeve 1,0 - 1,5	11
46	891 051 40	Plug assy.	1
47	635 677 40	Cable 4x1 Bulk ware, state length required	-2
48	906 420 40	T-Distributor DN 12	1
49	896 520 40	End pin	2
50	634 173 40	E/A - Cable, binear	5
51	603 368 40	E/A - Cable, analog	3
52	655 626 40	Distributor DN 17/12	1
53	655 631 40	Pipe adapter DN 12/10	1
54	655 650 40	Cable protection hose DN 12 Bulk ware, state length required	-2
56	056 292 40	Cable strap	10
57	635 043 40	Name plate	10
58	769 155 73	Seal	1
59	769 156 73	Glass, white	1
60	507 383 99	Halogen lamp 24V /70W	1
61	906 231 40	Circular bearing	3
62	340 506 99	Washer	4
63	006 303 98	Clamp 22/15	3
64	500 486 98	Clamp 51/25	1
65		SPC-Control	1
66	659 872 40	Data cable	1
67	906 759 40	Rubber clamp	2
68	906 760 40	Rubber clamp	8
69	906 761 40	Rubber clamp	7
70	906 758 40	Key seal	8
71	906 762 40	Shim	1
72	910 741 40	Load limitation valve	1
73	655 490 40	Plug housing 55-pole	1
74	907 196 40	Cable 20x00,5 Bulk ware, state length required	-2
75	655 642 40	Circular bearing	4
76	056 071 40	Cable sleeve 2,5	5
77	923 573 40	Harness - plug MC 7	1
78	515 213 40	Cable 1,0 Bulk ware, state length required	-2
79	655 491 40	Male contact	8
80	655 492 40	Male contact	47
81	455 766 99	Insulating tube 16x1 Bulk ware, state length required	-2
82	655 493 40	Rubber grommet	1
83	346 508 99	Lock washer	-2
84	340 904 99	Washer	-2
85	910 023 40	Plate to fig-no. 03	1
