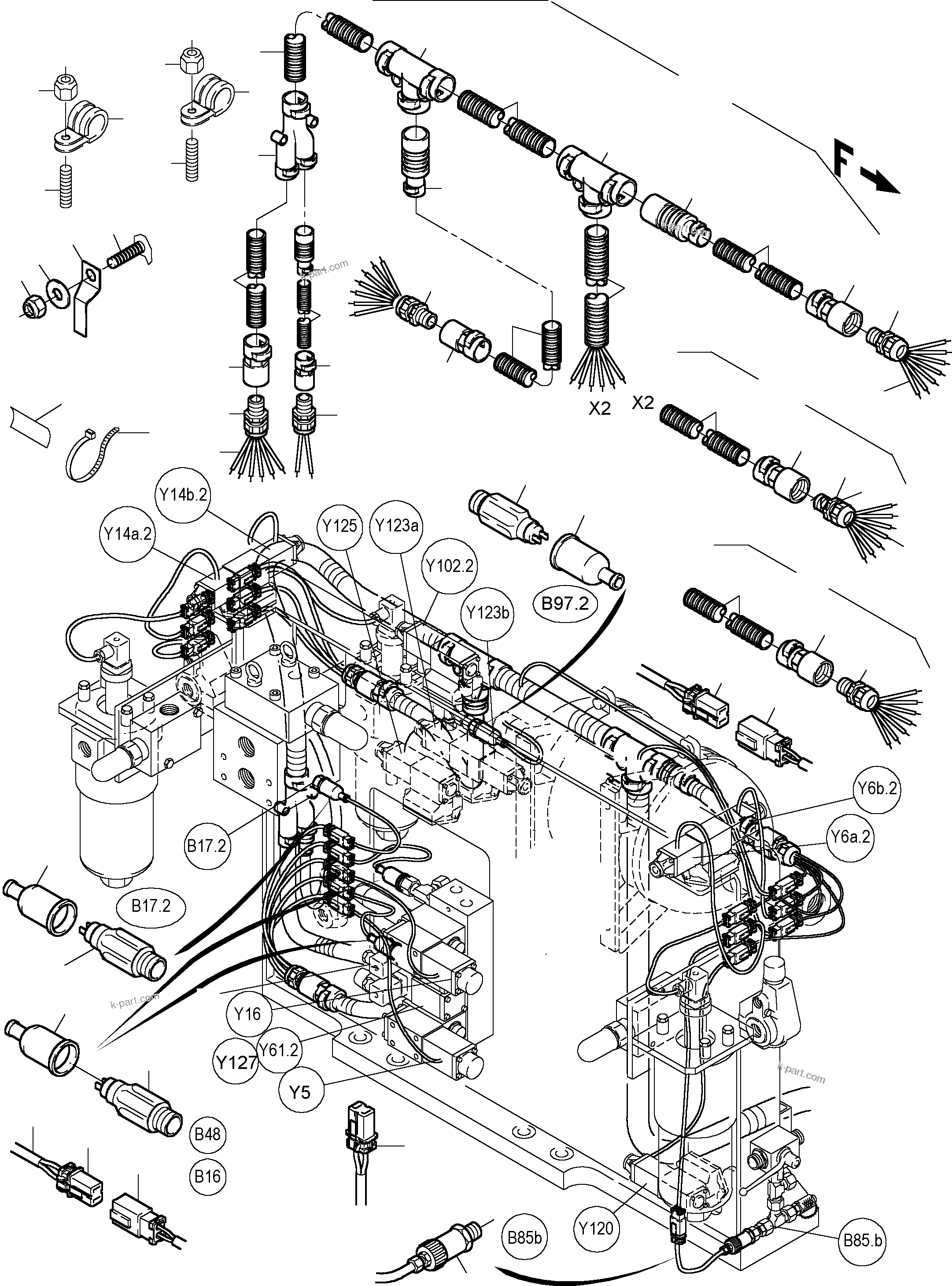

CABLES - CONTROL- AND FILTER PLATE, FRONT | PC5500-6 S/N 15017

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC5500-6 S/N 15017

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	655 651 40	Protecting hose DN 17 Bulk ware, state length required	-2
?	655 652 40	Protecting hose DN 23 Bulk ware, state length required	-2
?	655 696 40	Protecting hose DN 29 Bulk ware, state length required	-2
?	655 649 40	Protecting hose DN 10 Bulk ware, state length required	-2
?	655 630 40	T-Distributor DN 29/23	2
?	655 627 40	Distributor DN 23/17	1
?	655 634 40	Pipe adapter DN 23/17	1
?	655 635 40	Pipe adapter DN 29/17	1
?	655 632 40	Pipe adapter DN 17/10	1
?	515 189 40	Cable 1.0 Bulk ware, state length required	-2
?	635 677 40	Cable 4x1 Bulk ware, state length required	-2
?	655 808 40	Fitting PG 16	3
?	896 489 40	Cable union PG 16	2
?	891 031 40	Plug with pins assy.	16
?	891 039 40	Plug with bushings assy.	16
?	891 084 40	Plug assy.	3
?	654 904 40	Pressure switch	1
?	592 669 40	Pressure switch	3
?	003 670 79	Clip	26
?	896 529 40	Press. measuring transducer	1
?	910 055 40	Protection cap assy.	4
?	655 805 40	Fitting PG 9	1
?	655 798 40	Cable union PG 9	1
?	896 520 40	End pin	5
?	056 070 40	Cable sleeve 1.0-1.5	52
?	256 514 40	Name plate	22
?	056 292 40	Cable strap	22
?	923 155 40	Harness - control carrier	1
?	510 210 98	Thread pin	21
?	507 025 98	Nut	21
?	350 762 99	Washer	13
?	006 301 98	Clamp 12/15	1
?	006 304 98	Clamp 20/25	3
?	510 363 98	Clamp 29/15	4
?	006 306 98	Clamp 30/25	3
?	509 875 98	Thread pin	3
?	334 599 99	Nut	3
?	923 177 40	Harness - control plate	1
?	600 812 99	Reduction HPG 13,5-Pg11	1
?	655 636 40	Fitting PG 13,5	1
?	655 802 40	Cable union PG 11	1
?	906 483 40	Valve plug	2
?	655 804 40	Cable union PG 16	1
?	923 559 40	Harness -Pessure transducer	1
?	655 650 40	Protecting hose DN 12 Bulk ware, state length required	-2
?	655 806 40	Fitting PG 11	1
?	600 790 99	Reduction HPG 11-Pg9	1
?	891 032 40	Plug with pins assy.	1
?	455 756 99	Insulating tube Bulk ware, state length required	-2
?	891 040 40	Plug with bushings assy.	1
