WB140PS-2N S/N A40034-UP

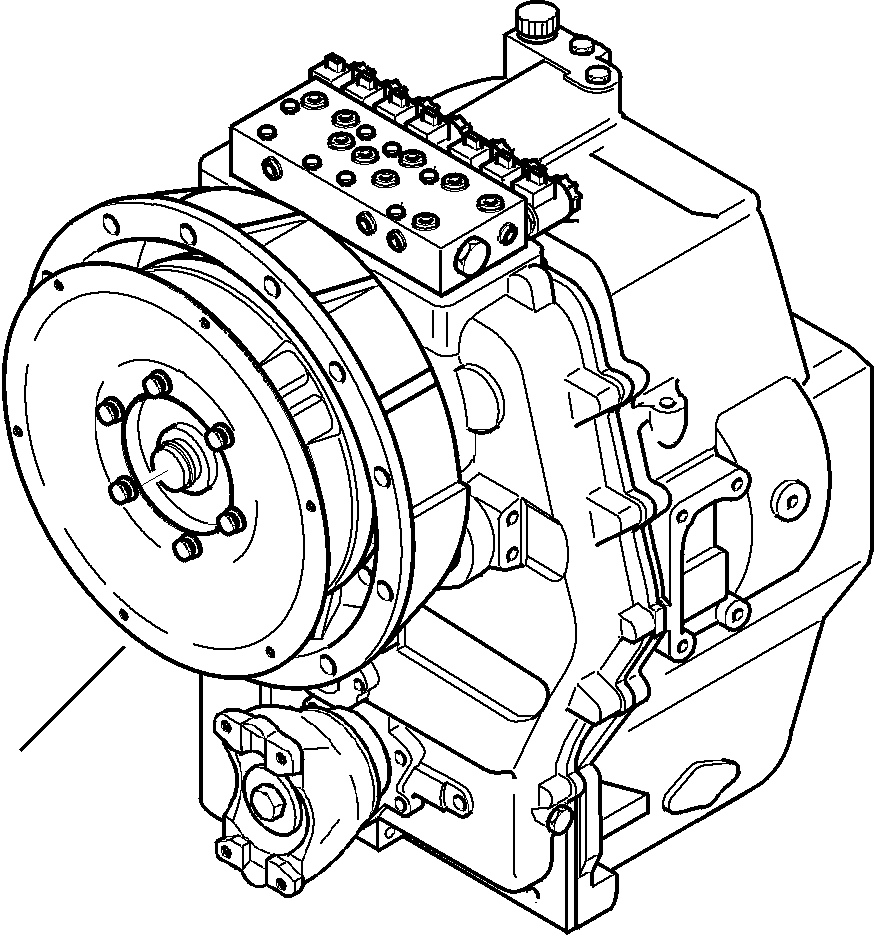

Komatsu parts book diagram for WB140PS-2N S/N A40034-UP: FIG. F3300-11A0 TRANSMISSION - COMPLETE ASSEMBLY

1

	#	Part Number	Partname	Quantity	Options	Reference
	1	200120077	TRANSMISSION	1	SN: A40053--UP
	\|$1		OIL FILTER (SEE FIG. F3300-11A1)	-1	SN: A40053--UP	F3300-11A1
	\|$2		HOUSINGS (SEE FIG. F3300-11A1)	-1	SN: A40053--UP	F3300-11A1
	\|$3		F & R CLUTCH (SEE FIG. F3300-11A2)	-1	SN: A40053--UP	F3300-11A2
	\|$4		REV IDLER SHAFT (SEE FIG. F3300-11A3)	-1	SN: A40053--UP	F3300-11A3
	\|$5		2ND GEAR CLUTCH (SEE FIG. F3300-11A3)	-1	SN: A40053--UP	F3300-11A3
	\|$6		1 3 & 4 CLUTCHES (SEE FIG. F3300-11A4)	-1	SN: A40053--UP	F3300-11A4
	\|$7		FRONT OUTPUT SHAFT (SEE FIG. F3300-11A5)	-1	SN: A40053--UP	F3300-11A5
	\|$8		TRANS PUMP (SEE FIG. F3300-11A6)	-1	SN: A40053--UP	F3300-11A6
	\|$9		TORQUE CONVERTER (SEE FIG. F3300-11A7)	-1	SN: A40053--UP	F3300-11A7
	\|$10		SHIFT SYSTEM (SEE FIG. F3300-11A8)	-1	SN: A40053--UP	F3300-11A8
	\|$11		TUBING SENSORS (SEE FIG. F3300-11A9)	-1	SN: A40053--UP	F3300-11A9
	\|$12			-1
	\|$13		F1 REFER TO PSN AA04165 FOR ADDITIONAL S/N BREAKS.	-1
	\|$14			-1
