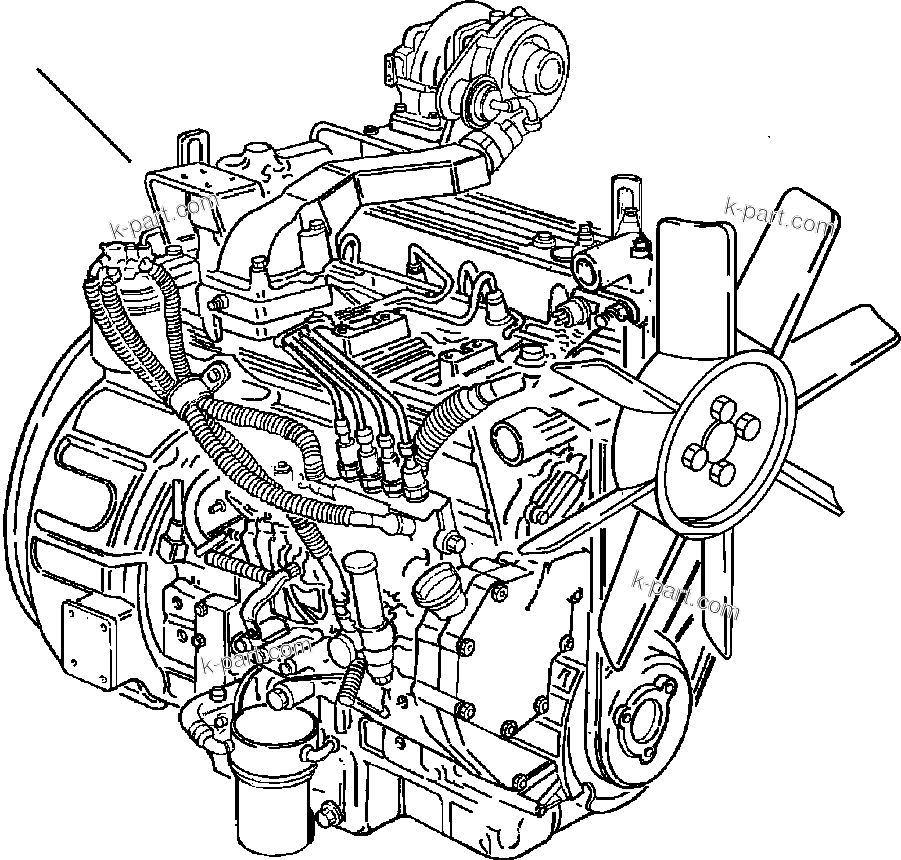

FIG. A0100-01A0 ENGINE - COMPLETE ASSEMBLY | WB140PS-2N S/N A40034-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
?	871070049	TURBO ENGINE, TIER I	1	SN: A40034-A40042-UP
?		VALVE COVER (SEE FIG. A0101-01A0)	-1	SN: A40034-A40042-UP	A0101-01A0
?		PCV BREATHER (SEE FIG. A0102-01A0)	-1	SN: A40034-A40042-UP	A0102-01A0
?		CYLINDER HEAD (SEE FIG. A0103-01A0)	-1	SN: A40034-A40042-UP	A0103-01A0
?		VALVE TRAIN (SEE FIG. A0103-01A0)	-1	SN: A40034-A40042-UP	A0103-01A0
?		ROCKER ARMS (SEE FIG. A0104-01A0)	-1	SN: A40034-A40042-UP	A0104-01A0
?		INTAKE MANIFOLD (SEE FIG. A0105-01A0)	-1	SN: A40034-A40042-UP	A0105-01A0
?		EXHAUST MANIFOLD (SEE FIG. A0106-01A0)	-1	SN: A40034-A40042-UP	A0106-01A0
?		TURBOCHARGER (SEE FIG. A0106-01A0)	-1	SN: A40034-A40042-UP	A0106-01A0
?		MUFFLER (SEE FIG. A0106-01A0)	-1	SN: A40034-A40042-UP	A0106-01A0
?		CYLINDER BLOCK (SEE FIG. A0110-01A0)	-1	SN: A40034-A40042-UP	A0110-01A0
?		GEAR HOUSING (SEE FIG. A0111-01A0)	-1	SN: A40034-A40042-UP	A0111-01A0
?		OIL PUMP (SEE FIG. A0111-01A0)	-1	SN: A40034-A40042-UP	A0111-01A0
?		FLYWHEEL HOUSING (SEE FIG. A0112-01A0)	-1	SN: A40034-A40042-UP	A0112-01A0
?		OIL PAN (SEE FIG. A0112-01A0)	-1	SN: A40034-A40042-UP	A0112-01A0
?		CAMSHAFT (SEE FIG. A0113-01A0)	-1	SN: A40034-A40042-UP	A0113-01A0
?		DRIVE GEAR (SEE FIG. A0113-01A0)	-1	SN: A40034-A40042-UP	A0113-01A0
?		CRANKSHAFT (SEE FIG. A0114-01A0)	-1	SN: A40034-A40042-UP	A0114-01A0
?		PISTONS (SEE FIG. A0114-01A0)	-1	SN: A40034-A40042-UP	A0114-01A0
?		FLYWHEEL (SEE FIG. A0114-01A0)	-1	SN: A40034-A40042-UP	A0114-01A0
?		LUBE OIL SYSTEM (SEE FIG. A0120-01A0)	-1	SN: A40034-A40042-UP	A0120-01A0
?		OIL COOLER (SEE FIG. A0120-01A0)	-1	SN: A40034-A40042-UP	A0120-01A0
?		COOLER HOUSING (SEE FIG. A0120-01A2)	-1	SN: A40034-A40042-UP	A0120-01A2
?		TURBO LUBE LINES (SEE FIG. A0121-01A0)	-1	SN: A40034-A40042-UP	A0121-01A0
?		FUEL LINES (SEE FIG. A0130-01A1)	-1	SN: A40034-A40042-UP	A0130-01A1
?		WATER SEPARATOR (SEE FIG. A0130-01A2)	-1	SN: A40034-A40042-UP	A0130-01A2
?		FUEL PIPING (SEE FIG. A0131-01A0)	-1	SN: A40034-A40042-UP	A0131-01A0
?		FUEL INJECTOR (SEE FIG. A0132-01A0)	-1	SN: A40034-A40042-UP	A0132-01A0
?		INJECTION PUMP (SEE FIG. A0133-01A0)	-1	SN: A40034-A40042-UP	A0133-01A0
?		GOVERNOR (SEE FIG. A0133-01A1)	-1	SN: A40034-A40042-UP	A0133-01A1
?		FEED PUMP (SEE FIG. A0133-01A2)	-1	SN: A40034-A40042-UP	A0133-01A2
?		COOLING SYSTEM (SEE FIG. A0140-01A0)	-1	SN: A40034-A40042-UP	A0140-01A0
?		THERMOSTAT (SEE FIG. A0141-01A0)	-1	SN: A40034-A40042-UP	A0141-01A0
?		ALTERNATOR MTG (SEE FIG. A0150-01A0)	-1	SN: A40034-A40042-UP	A0150-01A0
?		ALTERNATOR (SEE FIG. A0150-01A1)	-1	SN: A40034-A40042-UP	A0150-01A1
?		STARTER MOUNT (SEE FIG. A0151-01A0)	-1	SN: A40034-A40042-UP	A0151-01A0
?		STARTER (SEE FIG. A0151-01A1)	-1	SN: A40034-A40042-UP	A0151-01A1
?		STOP SOLENOID (SEE FIG. A0152-01A0)	-1	SN: A40034-A40042-UP	A0152-01A0
?		GASKET SET (SEE FIG. A0160-01A0)	-1	SN: A40034-A40042-UP	A0160-01A0
?			-1
?		F1 WHEN ORDERING A SERVICE ENGINE, GIVE THE COMPLETE SERIAL NUMBER AND INCLUDE ALL LETTERS AND NUMERALS SHOWN ON THE ENGINE TO BE REPLACED	-1
?			-1
