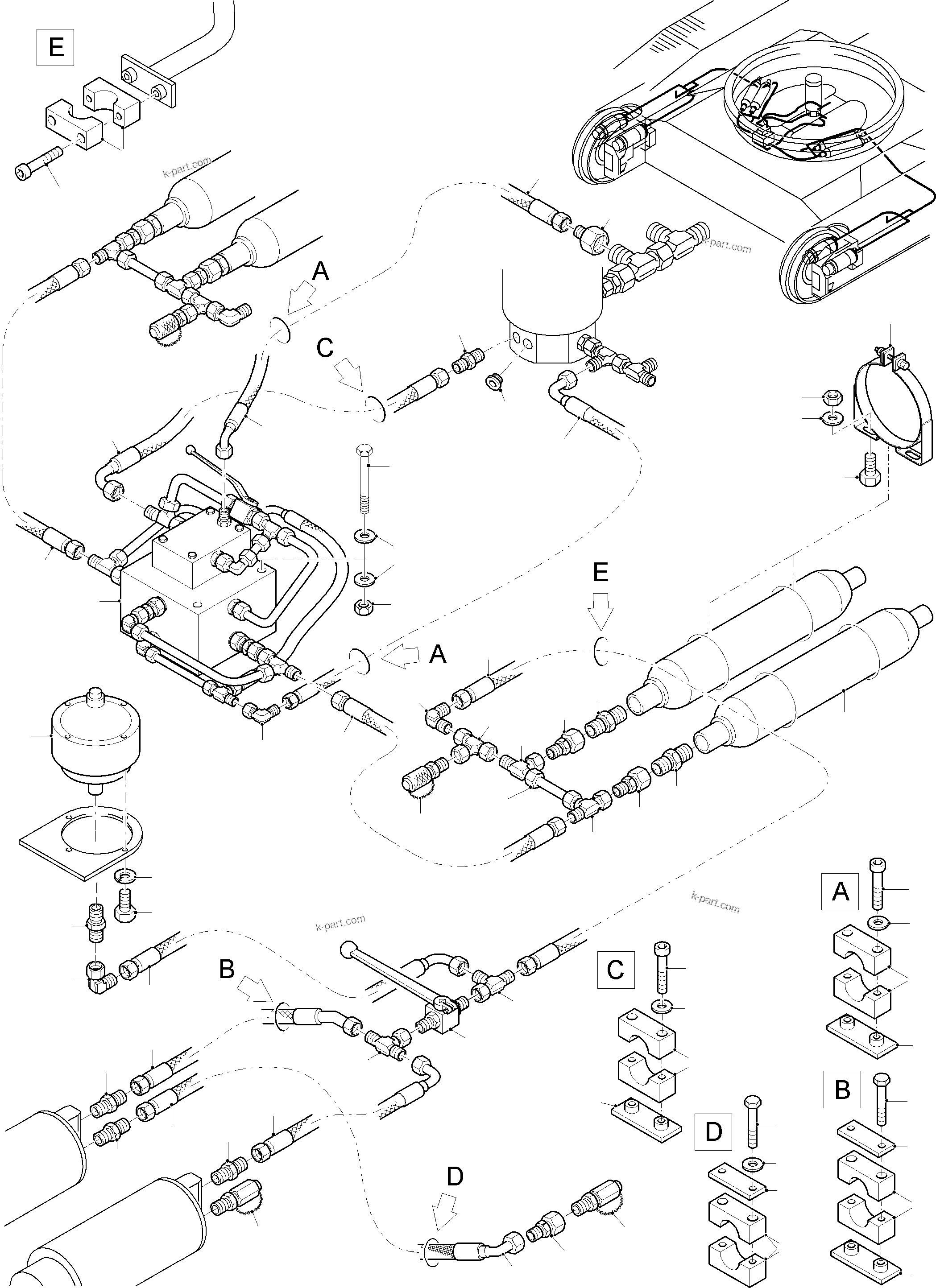

HYFR. TRACK ADJUSTING | PC8000-11 S/N 12117 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC8000-11 S/N 12117

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	332 334 99	Nut	4
?	308 621 99	Bolt	4
?	517 118 98	Lock washer	8
?		see parts page Valve block	1
?	516 957 98	Hose assy. DN 16x750	2
?	374 419 99	Socket	4
?	634 297 40	Union	4
?	516 180 98	Socket	6
?	371 260 99	Union nut	4
?	906 351 40	Olive	4
?	215 219 99	Pipe 20x2x97	2
?	516 172 98	Socket	4
?	004 132 98	Test coupling	2
?	635 991 40	Clamp	8
?	308 560 99	Bolt	16
?	340 464 99	Washer	16
?	334 599 99	Nut	16
?	173 415 40	Plug	1
?	509 058 98	Clamp set	1
?	340 405 99	Washer	6
?	518 065 98	Clamp set	2
?	514 125 98	Hose assy. DN 16x1550	1
?	641 555 40	Hose assy. DN 12x2600	1
?	906 870 40	Union	1
?	509 057 98	Clamp set	2
?	533 992 99	Weld-on plate	3
?	319 133 99	Bolt	6
?	513 208 98	Hose assy. DN 12x1900	1
?	516 158 98	Socket	1
?	517 499 98	Hose assy. DN 05x500	2
?	308 581 99	Bolt	4
?	517 122 98	Lock washer	4
?	518 378 98	Union	2
?	374 418 99	Union	1
?	461 133 40	Ball cock	2
?	515 812 98	Test socket	4
?	374 413 99	Socket	5
?	516 165 98	Socket	4
?	517 864 98	Hose assy. DN 16x1000	2
?	518 470 98	Hose assy. DN 16x1200	2
?	551 715 40	Hose assy. DN 16x390	2
?	502 682 98	Clamp set	2
?	534 002 99	Weld-on plate	2
?	534 001 99	Cover plate	6
?	307 752 99	Bolt	8
?	517 121 98	Lock washer	8
?	374 461 99	Union	2
?	509 062 98	Clamp set	2
?	515 676 98	Hose assy. DN 16x4800	2
?	308 579 99	Bolt	4
?		Accumulator	4
?	907 305 40	Accumulator TT	-2
?	932 349 40	Accumulator TT	-2
?	906 279 40	Accumulator TT	-2
?	551 735 40	Accumulator TT	-2
?	949 577 40	Accumulator TT	-2
?		Accumulator	4
?	945 120 40	Accumulator NT	-2
?	932 346 40	Accumulator NT	-2
?	932 347 40	Accumulator NT	-2
?	551 743 40	Accumulator NT	-2
?	936 686 40	Accumulator NT	-2
?	655 002 40	Accumulator NT	-2
?		Diaphragm-type accumulator	2
?	907 304 40	Diaphragm-type accumulator TT	-2
?	932 359 40	Diaphragm-type accumulator TT	-2
?	906 280 40	Diaphragm-type accumulator TT	-2
?	551 747 40	Diaphragm-type accumulator TT	-2
?	949 578 40	Diaphragm-type accumulator TT	-2
?		Diaphragm-type accumulator	2
?	945 119 40	Diaphragm-type accumulator NT	-2
?	946 677 40	Diaphragm-type accumulator NT	-2
?	932 353 40	Diaphragm-type accumulator NT	-2
?	932 357 40	Diaphragm-type accumulator NT	-2
?	551 753 40	Diaphragm-type accumulator NT	-2
?	936 685 40	Diaphragm-type accumulator NT	-2
?			-2
?	792 288 73	Repair kit Acumulator NT	1
?	769 824 73	Repair kit Acumulator TT	1
?	792 289 73	Repair kit Diaphragm-type accumulator	1
?		Deviations of the machine record acc. to regional prescription	-1
