PC8000-11 S/N 12117

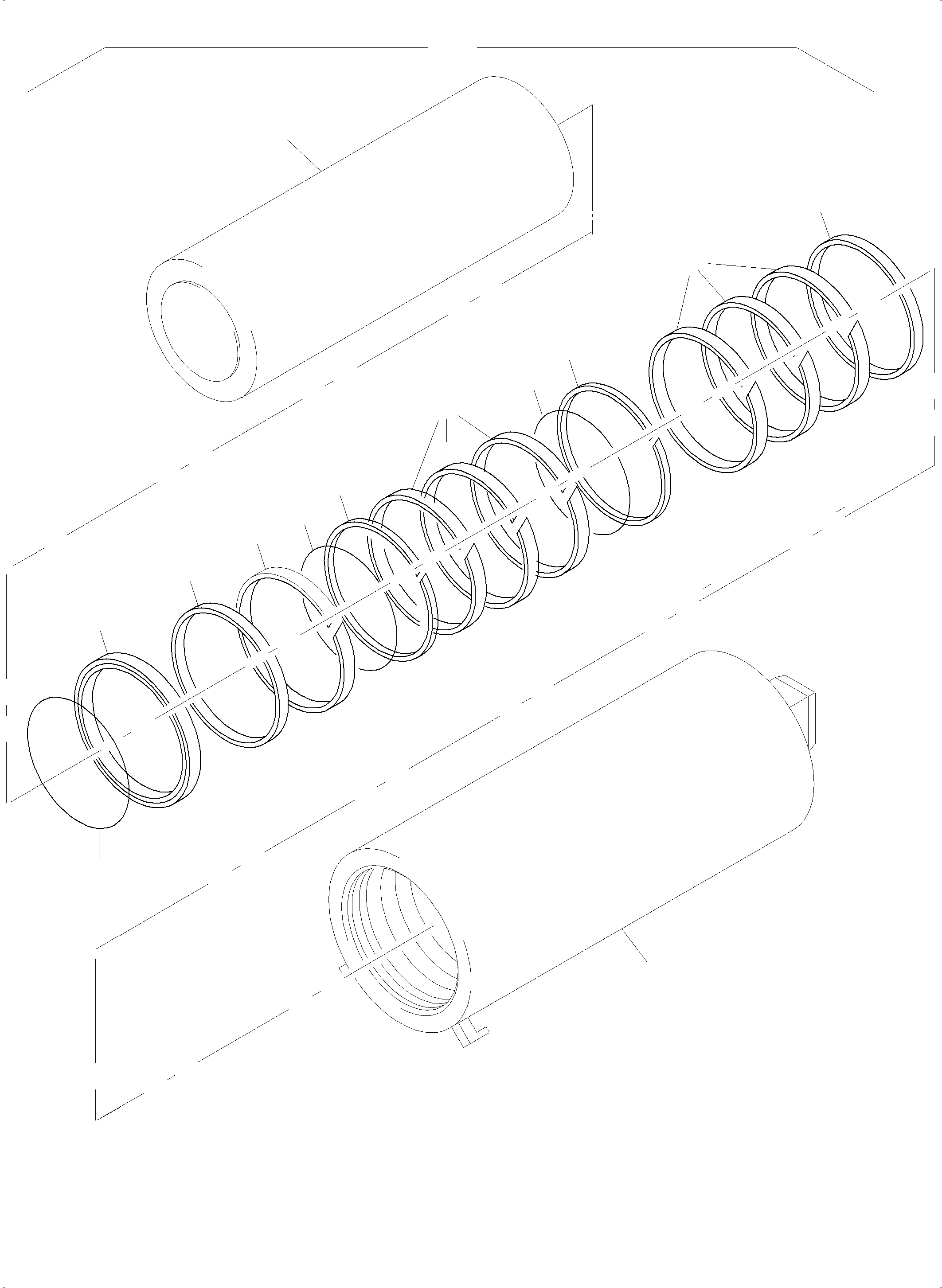

Komatsu parts book diagram for PC8000-11 S/N 12117: HYDRAULIC TENSIONER

01 02 03 04 04 04 05 06 06 07 07 08 09 10

	#	Part Number	Partname	Quantity	Options	Reference
	01	948 430 40	Tensioner assy.	1
	02	948 416 40	Cilinder	1
	03	948 417 40	Piston	1
	04	461 764 40	Piston guid ring	7
	05	461 765 40	Seal ring	1
	06	796 759 73	Piston guid strap	2
	07	461 766 40	O-ring	2
	08	950 184 40	Scraper	1
	09	461 767 40	Seal ring	1
	10	907 603 40	O-ring	1
	\|$$11	797 431 73	Seal kit consist. of fig-nos: 04-10	-2
	\|$$12			-2
	\|$$13			-2
	\|$$14			-2
	\|$$15			-2
	\|$$16			-2
	\|$$17			-2

Komatsu PC8000-11 S/N 12117 parts catalog PDF

HYDRAULIC TENSIONER (113-3212b) in PC8000-11 S/N 12117. Diagram image and parts list.
