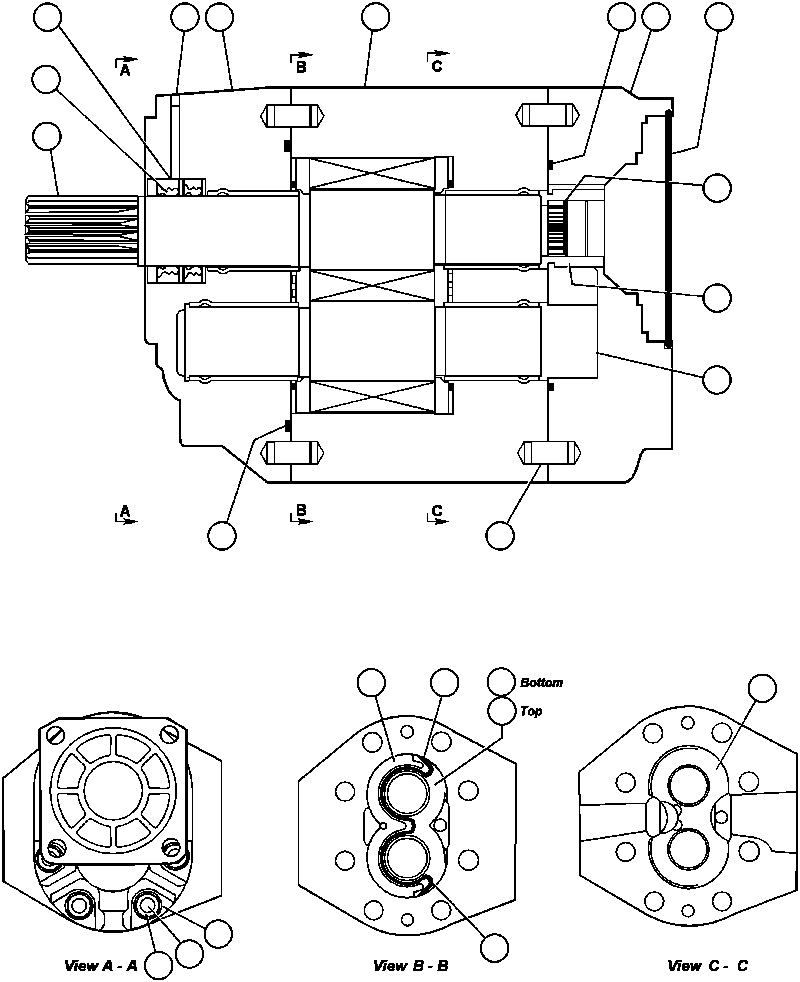

AFP49-A thru E 530M S/N A30001-A30008 (DH627-0)

6 7 8 9 3 4 5 2 1 10 11 12 14 13 21 18 19 23 20 17 22 16 15

#	Part Number	Partname	Quantity
1	BF3208	GEAR, DRIVE	1
2	LA1163	SEAL (1)(2)	2
3	LA1164	RING, SNAP (1)(2)	1
4	VE1783	PLUG	1
5		FLANGE	1
6	BF3205	BODY (3)	1
7	VK1255	O-RING (1)	1
8	BF3207	PLATE, TRANSITION	1
9	BF3211	O-RING (1)	1
10	VE3600	RING, SNAP	1
11	VK1257	COUPLING	1
12	BF3209	GEAR, IDLER	1
13	VS0629	DOWEL	4
14	LA0057	O-RING (1)(2)	1
15	25528R1	NUT, 5/8"	8
16	VJ7392	STUD	8
17	WA0361	FLATWASHER - 5/8" (HARDENED)	8
18	VJ6472	RING, RETAINER (1)	2
19	VK1254	SEAL, VITON (1)	2
20	VJ6470	PLATE, ISOLATION (TOP)	1
21	VJ6471	PLATE, ISOLATION (BOTTOM)	1
22	BF3210	RING, BACK-UP (1)	2
23	VJ6469	PLATE, PRESSURE	2
NS\|24	BF3218	NOTE: (1) INCLUDED IN SEAL KIT BF3218.	65535
NS\|25	BF3219	(2) INCLUDED IN SEAL KIT BF3219.	65535
NS\|26		(3) NOT SERVICED SEPARATELY.	65535

Komatsu AFP49-A thru E 530M S/N A30001-A30008 (DH627-0) parts catalog PDF

TRANSMISSION PUMP (MODIFIED) (EG3548) (50117) in AFP49-A thru E 530M S/N A30001-A30008 (DH627-0). Diagram image and parts list.
