AFP49-A thru E 530M S/N A30001-A30008 (DH627-0)

21 22 24 20 5 19 28 18 29 17 1 2 3 4 5 14 11 6 10 9 8 7 23 16 25 15 26 13 12 27 28

#	Part Number	Partname	Quantity
1	BF3046	HOUSING, INLET	1
2	VJ1988	POPPET	2
3	VJ1985	SPRING	2
4	VE3533	O-RING (1)(2)	4
5	VE3568	COVER	1
6	VJ0011	PLUG	1
7	VJ0435	O-RING (1)(2)	1
8	VE3562	COVER, RELIEF VALVE	1
9	BF3255	ASSM., RELIEF VALVE	1
10	VJ1990	SPRING	1
11	1133800C1	RING, BACK-UP (1)(2)	2
12	VE3526	O-RING (1)(2)	1
13	BF3254	POPPET, RESTRICTION (2)	1
14	VE3554	RING, BACK-UP (1)(2)	2
15	VE3552	O-RING (1)(2)	1
16	VE3560	SLEEVE (2)	1
17	VE3561	FITTING	1
18	VE3803	CAPSCREW, SOCKET HEAD	2
19	VE3551	PLUG	1
20	DF6928	CAPSCREW	8
21	VE3528	O-RING (1)(2)	2
22	VE3534	O-RING (1)(2)	1
23	BF3188	SCREW, RESTRICTION	1
24	VJ2002	CAPSCREW	8
25	VE3565	O-RING (1)(2)	3
26	VE3559	FITTING	1
27	VE3564	TUBE	1
28	VE3563	CAP, FLANGE	1
29	VE3553	O-RING (1)(2)	1
NS\|30	BF3252	NOTE: (1) INCLUDED IN MINOR SERVICE KIT BF3252.	1
NS\|31	BF3253	(2) INCLUDED IN MAJOR SERVICE KIT BF3253.	1

Komatsu AFP49-A thru E 530M S/N A30001-A30008 (DH627-0) parts catalog PDF

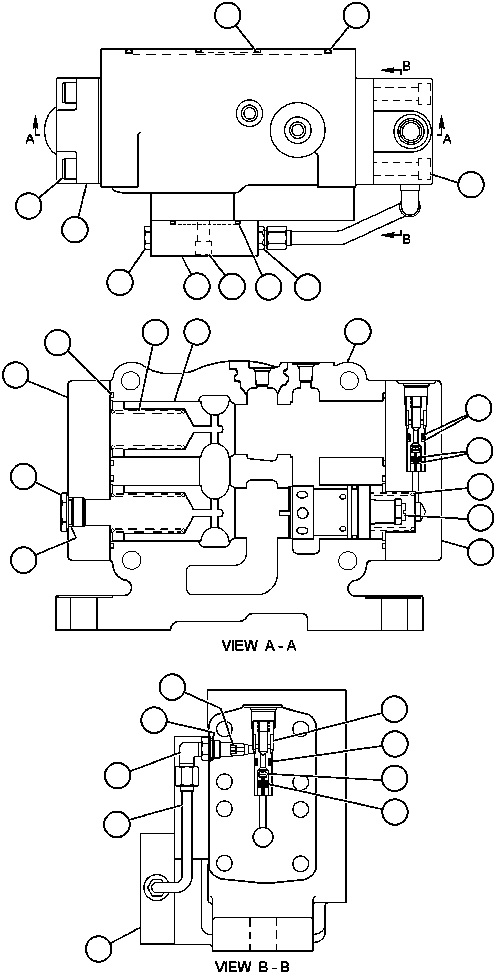

INLET SECTION (BF3251) (50121) in AFP49-A thru E 530M S/N A30001-A30008 (DH627-0). Diagram image and parts list.
