#	Part Number	Partname	Quantity	Reference
?		Battery switch box assy.	1	991-1645
?	996 363 40	Harness 71X_71.2.1/73X_73.1.2	1
?	996 365 40	Harness 71X_71.2.1/73X_73.1.3	1
?	996 366 40	Harness 71X_71.3.1/73X_73.1.4	1
?	996 367 40	Harness 71X_71.3.1/73X_73.1.5	1
?	996 364 40	Harness 71X_71.5.1/73X_73.3.2	1
?	996 368 40	Harness 71X_71.5.1/73X_73.3.3	1
?	996 369 40	Harness 71X_71.6.1/73X_73.3.4	1
?	996 370 40	Harness 71X_71.6.1/73X_73.3.5	1
?	996 371 40	Harness 73X_73.4.4/11X_73.001	1
?	996 372 40	Harness 73X_73.4.3/52G005-1+	1
?	996 373 40	Harness 73X_73.4.3/52G005-1+	1
?	996 374 40	Harness 73X_73.4.2/52G005-2+	1
?	996 375 40	Harness 73X_73.4.2/52G005-2+	1
?	996 376 40	Harness 73X_73.2.2/50GND_31_a	1
?	996 377 40	Harness 73X_73.2.2/50GND_31_b	1
?	996 378 40	Harness 73X_73.6.3/52M001-1	1
?	996 379 40	Harness 73X_73.6.3/52M001-1	1
?	996 380 40	Harness 73X_73.6.4/52M002-1	1
?	996 381 40	Harness 73X_73.6.4/52M002-1	1
?	996 382 40	Harness 73X_73.6.5/52M001-2	1
?	996 383 40	Harness 73X_73.6.5/52M001-2	1
?	996 384 40	Harness 73X_73.6.6/52M002-2	1
?	996 385 40	Harness 73X_73.6.6/52M002-2	1
?	103 300 42	Harness 13GND_31-50GND_31	1
?	996 394 40	Harness 50GND_31-1/52GND_31-1	1
?	996 395 40	Harness 50GND_31-2/52GND_31-2	1
?	996 396 40	Harness 52G005-1.-/50GND_31-1	1
?	996 397 40	Harness 52G005-1.-/50GND_31-1	1
?	996 398 40	Harness 52G005-2.-/50GND_31-2	1
?	996 399 40	Harness 52G005-2.-/50GND_31-2	1
?	100 600 42	Harness 52M001-1.-/50GND_31-1	1
?	100 601 42	Harness 52M001-1.-/50GND_31-1	1
?	100 602 42	Harness 52M001-2.-/50GND_31-2	1
?	100 603 42	Harness 52M001-2.-/50GND_31-2	1
?	100 604 42	Harness 52M002-1.-/50GND_31-1	1
?	100 605 42	Harness 52M002-1.-/50GND_31-1	1
?	100 606 42	Harness 52M002-2.-/50GND_31-2	1
?	100 607 42	Harness 52M002-2.-/50GND_31-2	1
?	100 608 42	Harness 52G006-1-/50GND_31-1	1
?	100 609 42	Harness 52G006-1+/52Q030A-1	1
?	100 610 42	Harness 52G006-2-/50GND_31-2	1
?	100 611 42	Harness 52G006-2+/52Q030A-2	1
?	0443451910	Clamp Ш19	10
?	0443452711	Clamp Ш27	62
?	0443453211	Clamp Ш32	5
?	0443451510	Clamp Ш15	20
?	961 124 40	Angle	4
?	307 577 99	Bolt	2
?	534 008 99	Cover plate	4
?	504 446 98	Clamp set	10
?	504 787 98	Locking plate	4
?	504 786 98	Screw	8
?	518 547 98	Lock washer	90
?	519 581 98	Nut	98
?	507 596 98	Washer	77
?	518 200 98	Lock washer	4
?	307 779 99	Bolt	28
?	308 201 99	Screw	6
?	308 613 99	Bolt	8
?	944 664 40	Cable channel 110/200	2
?	906 802 40	Cable channel 110/150	5
?	957 086 40	Hinge assy.	6
?	655 530 40	Strab	48
?	340 465 99	Washer	113
?	340 461 99	Washer	6
?	307 727 99	Bolt	24
?	340 463 99	Washer	24
?	0443452110	Clamp Ш21,5	23
?	0443451210	Clamp Ш12,0	43
?	507 037 98	Nut	13
?	985 844 40	Chain assy.	2
?	514 340 98	Screw	8
?	947 400 40	Pull switch assy.	2
?	081 320 40	Hinge	6
?	081 480 40	Hinge pin	6
?	472 688 99	Chain	-2
?	098 955 40	Ring	2
?	941 210 40	Shrinkdown tubing, red	-2
?	941 669 40	Pull switch, without LED	1
?	941 592 40	Light emitting diode, red	1
?	941 765 40	Cable shoe	1
?	055 140 40	Cable shoe	1
?	600 209 99	Cable lug	40
?	999 203 40	Cable shoe	8
?	906 492 40	Cable union	68
?	056 076 40	Protection cap	30
?	600 221 99	Cable lug	8
?	906 493 40	Cable union	6
?	950 210 40	End grommet	1
?	600 212 99	Cable lug	20
?	517 324 98	Nut	1
?	906 491 40	Cable union	8

Komatsu PC8000-11 S/N 12118 parts catalog PDF

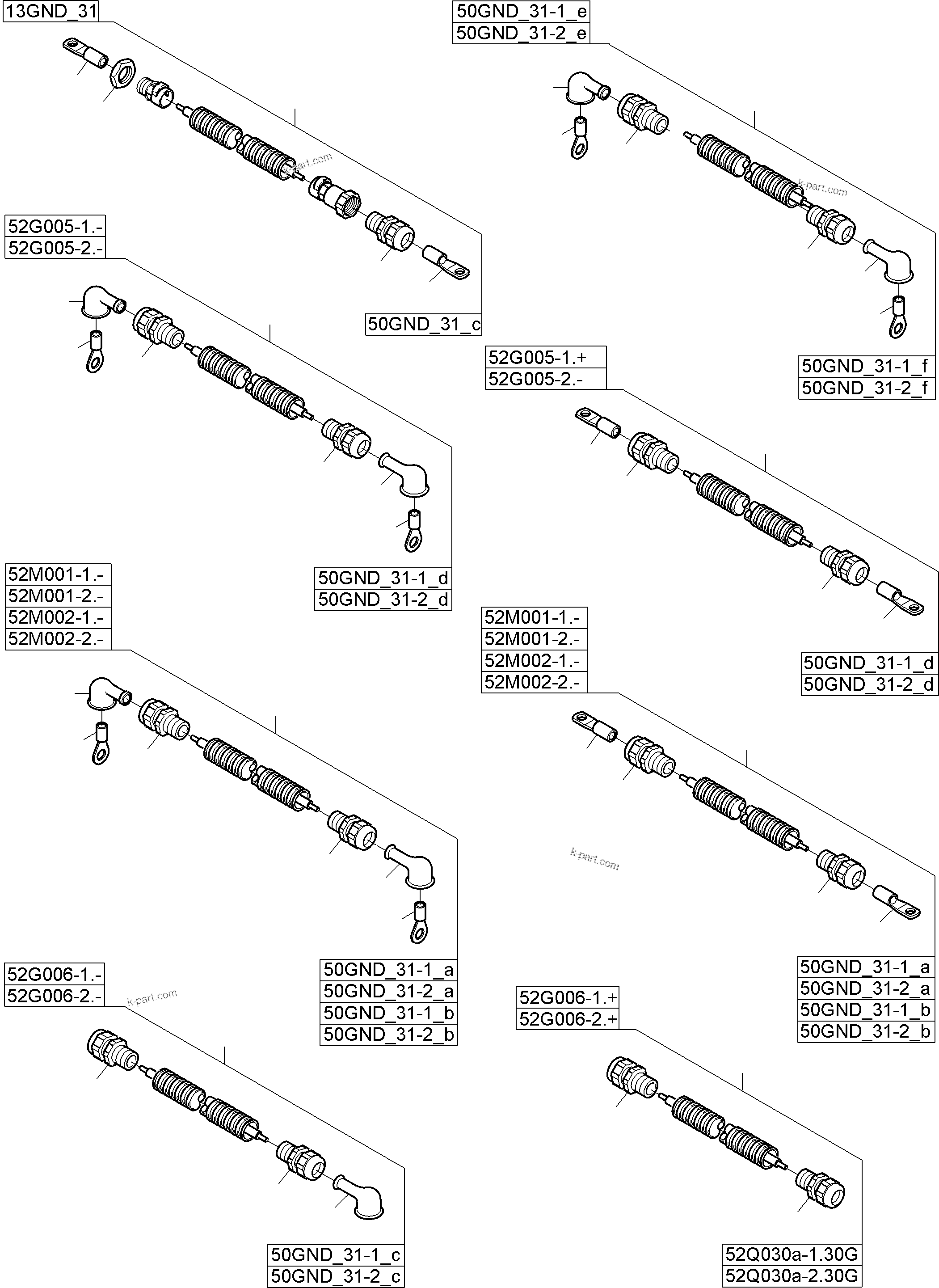

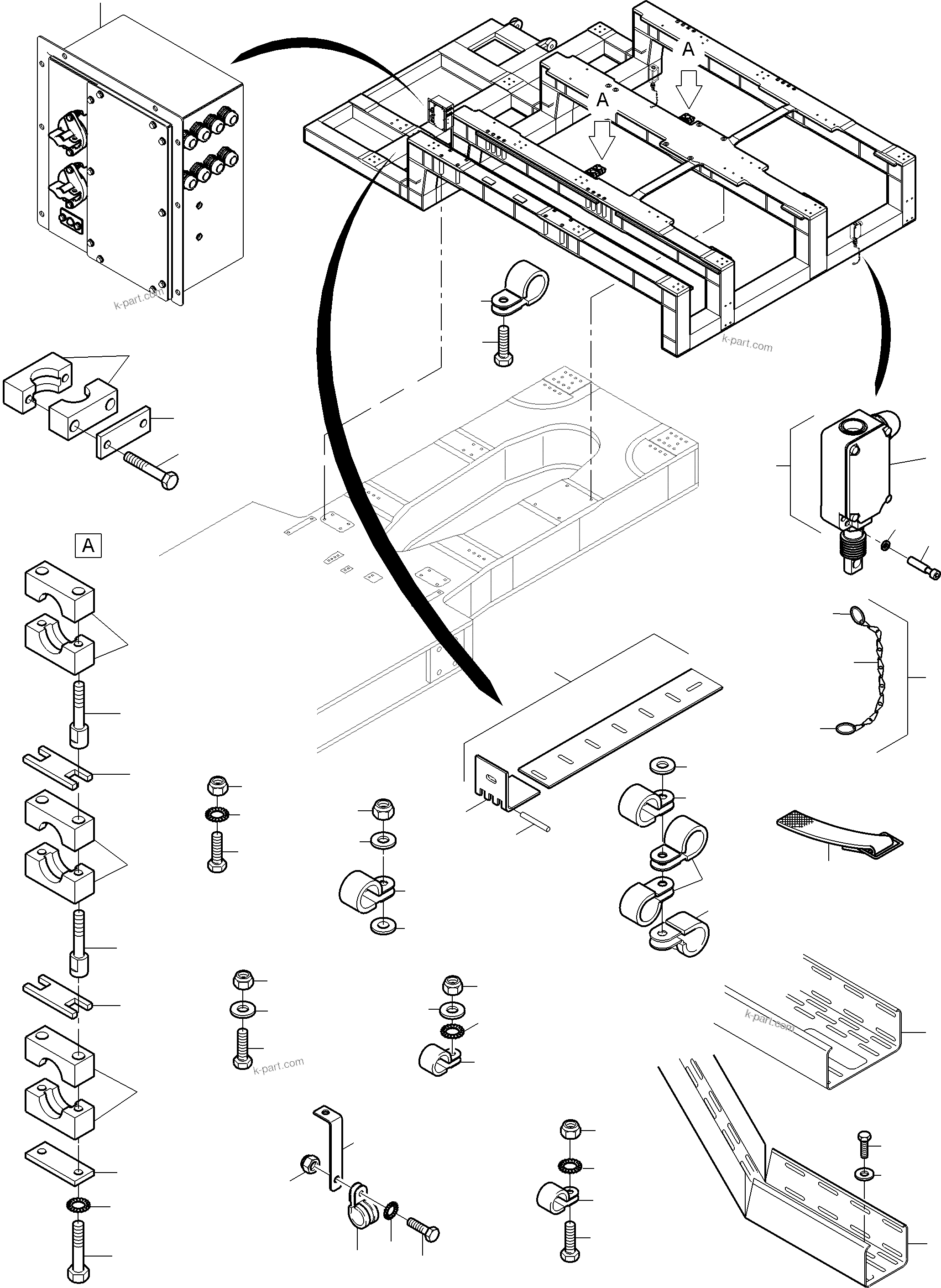

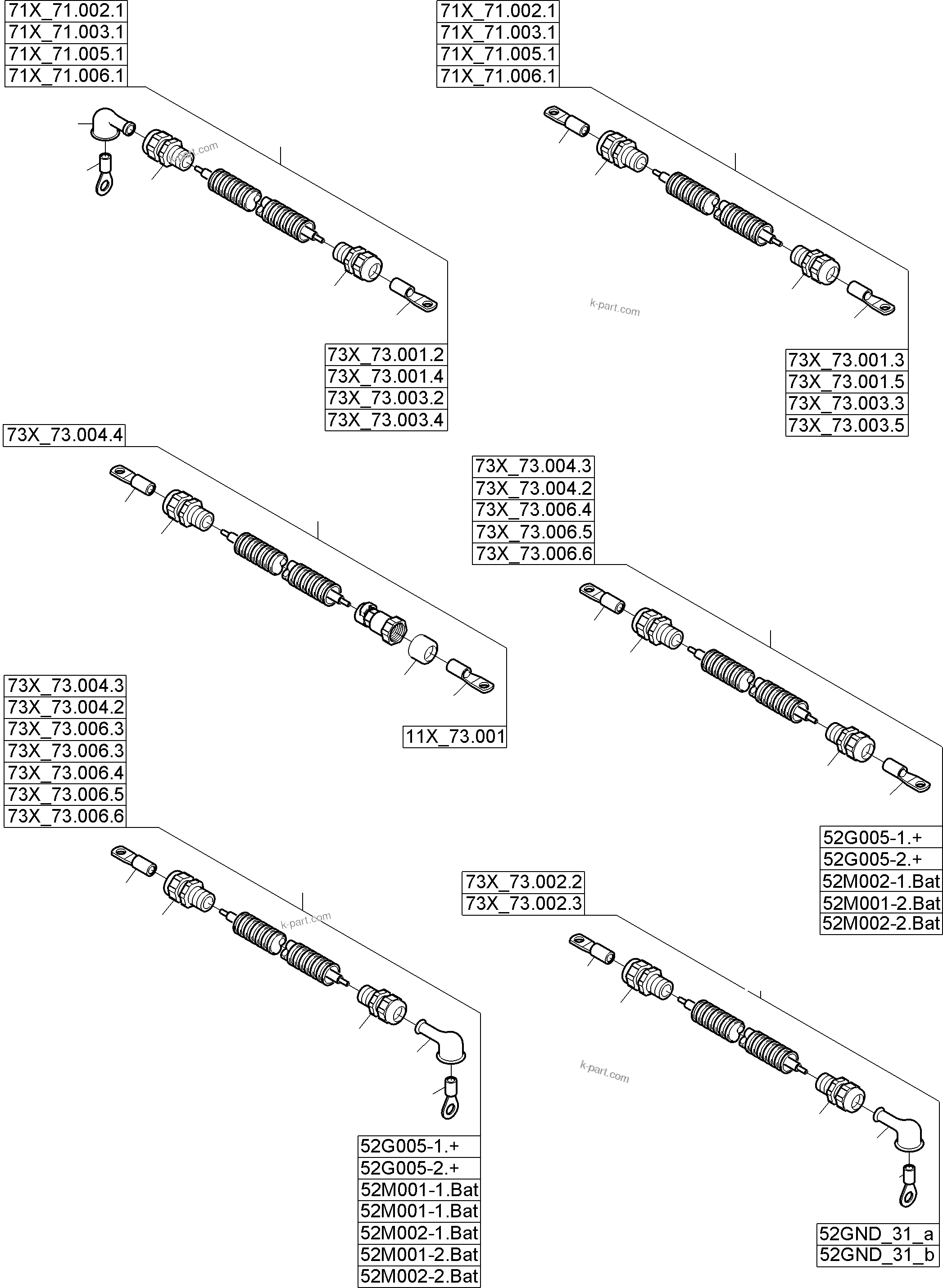

BATTERY SWITCH BOX WITH CABLES (213-2231) in PC8000-11 S/N 12118. Diagram image and parts list.
