PC70-8 S/N DBBT0001~-up

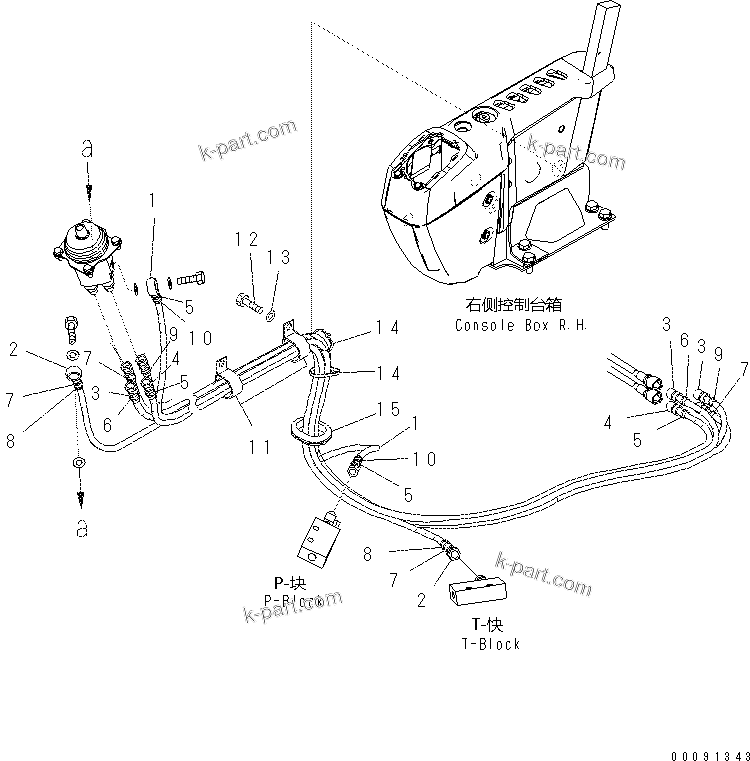

Komatsu parts book diagram for PC70-8 S/N DBBT0001~-up: OPERATOR'S CAB (FLOOR) (P.P.C. VALVE PIPING, R.H.)

	#	Part Number	Partname	Quantity	Options	Reference
	?	201-62-83160	HOSE	1	Field_1: HOSE \| Field_2: DBBT0001~
	?	201-62-83261	HOSE	1	Field_1: HOSE \| Field_2: DBBT0001~
	?	201-62-83211	HOSE	3	Field_1: HOSE \| Field_2: DBBT0001~
	?	201-62-83231	HOSE	1	Field_1: HOSE \| Field_2: DBBT0001~
	?	20Y-62-22790	BAND, RED	4	Field_1: BAND, RED \| Field_2: DBBT0001~
	?	20Y-62-22810	BAND, YELLOW	2	Field_1: BAND, YELLOW \| Field_2: DBBT0001~
	?	20Y-62-22820	BAND, BLUE	4	Field_1: BAND, BLUE \| Field_2: DBBT0001~
	?	20Y-62-22830	BAND, WHITE	2	Field_1: BAND, WHITE \| Field_2: DBBT0001~
	?	20Y-62-22840	BAND, BLACK	2	Field_1: BAND, BLACK \| Field_2: DBBT0001~
	?	20Y-62-22850	BAND, GREEN	2	Field_1: BAND, GREEN \| Field_2: DBBT0001~
	?	208-06-19170	CLIP	2	Field_1: CLIP \| Field_2: DBBT0001~
	?	01010-81020	BOLT	2	Field_1: BOLT \| Field_2: DBBT0001~
	?	01643-31032	WASHER	2	Field_1: WASHER \| Field_2: DBBT0001~
	?	08034-20536	BAND	3	Field_1: BAND \| Field_2: DBBT0001~
	?	426-09-11230	GROMMET	1	Field_1: GROMMET \| Field_2: DBBT0001~

Komatsu PC70-8 S/N DBBT0001~-up parts catalog PDF

OPERATOR'S CAB (FLOOR) (P.P.C. VALVE PIPING, R.H.) (|K00108) in PC70-8 S/N DBBT0001~-up. Diagram image and parts list.
