AFE78-AF 930E-5 S/N A40128 - A40129 LOMAS BAYAS

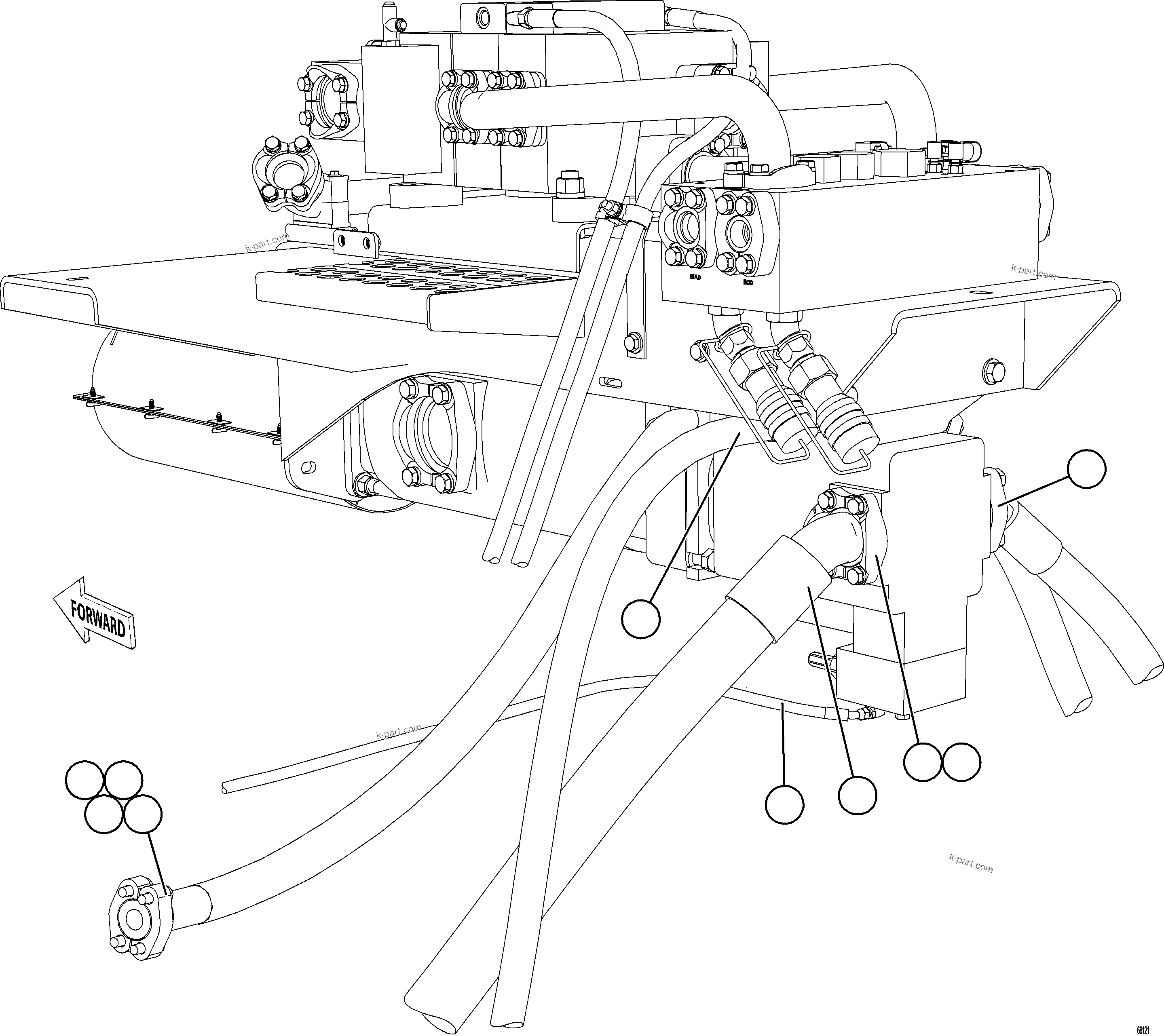

Komatsu parts book diagram for AFE78-AF 930E-5 S/N A40128 - A40129 LOMAS BAYAS: HYDRAULIC TANK PIPING - STEERING CIRCUIT 1/2

? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	8
	?	C1540	LOCKWASHER - 1/2"	8
	?	WA5630	CLAMP, SPLIT FLANGE - 1 1/4"	2
	?	VG9096	O-RING	1
	?	58F-60-50500	HOSE (CASE DRAIN)	1
	?	HA8626	HOSE (SUCTION)	1
	?	58F-60-50380	HOSE (UNLOADER FEEDBACK)	1
	?	VH6718	CLAMP, SPLIT FLANGE - 2 1/2"	2
	?	WA0232	O-RING	1
	?	VG9095	O-RING	1

Komatsu AFE78-AF 930E-5 S/N A40128 - A40129 LOMAS BAYAS parts catalog PDF

HYDRAULIC TANK PIPING - STEERING CIRCUIT 1/2 (68121) in AFE78-AF 930E-5 S/N A40128 - A40129 LOMAS BAYAS. Diagram image and parts list.
