AFE78-AF 930E-5 S/N A40128 - A40129 LOMAS BAYAS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	20
?	C1540	LOCKWASHER - 1/2"	28
?	TF8090	CLAMP, SPLIT FLANGE - 1 1/2"	2
?	VG9095	O-RING	1
?	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	4
?	WA5630	CLAMP, SPLIT FLANGE - 1 1/4"	2
?	VG9096	O-RING	1
?	TF3231	CLAMP, SPLIT FLANGE - 2"	8
?	WA0187	O-RING	4
?	WA4712	CLAMP, HYDRA ZORB - 2"	3
?	58F-60-50030	HOSE	1
?	WB0375	FITTING, ELBOW - 90 DEG	1
?	WB0557	FITTING, TEE	1
?	PB6769	COUPLING, MALE	1
?	WB0508	FITTING, ELBOW - 90 DEG	2
?	EK6183	ADAPTER, FLANGE	1
?	WB0604	FITTING, STRAIGHT	1
?	SR7215	CAPSCREW - 1/2" - 13NC X 7 1/2"	4
?	EK2612	TUBE	1
?	EH8492	TUBE	1
?	C1662	CAPSCREW - 7/8" - 9NC X 3"	3
?	WA4731	FLAT WASHER, HARDENED - 7/8"	3
?	VC6293	LOCKWASHER - 7/8"	3
?	VN9693	NUT - 7/8" - 9NC	3

Komatsu AFE78-AF 930E-5 S/N A40128 - A40129 LOMAS BAYAS parts catalog PDF

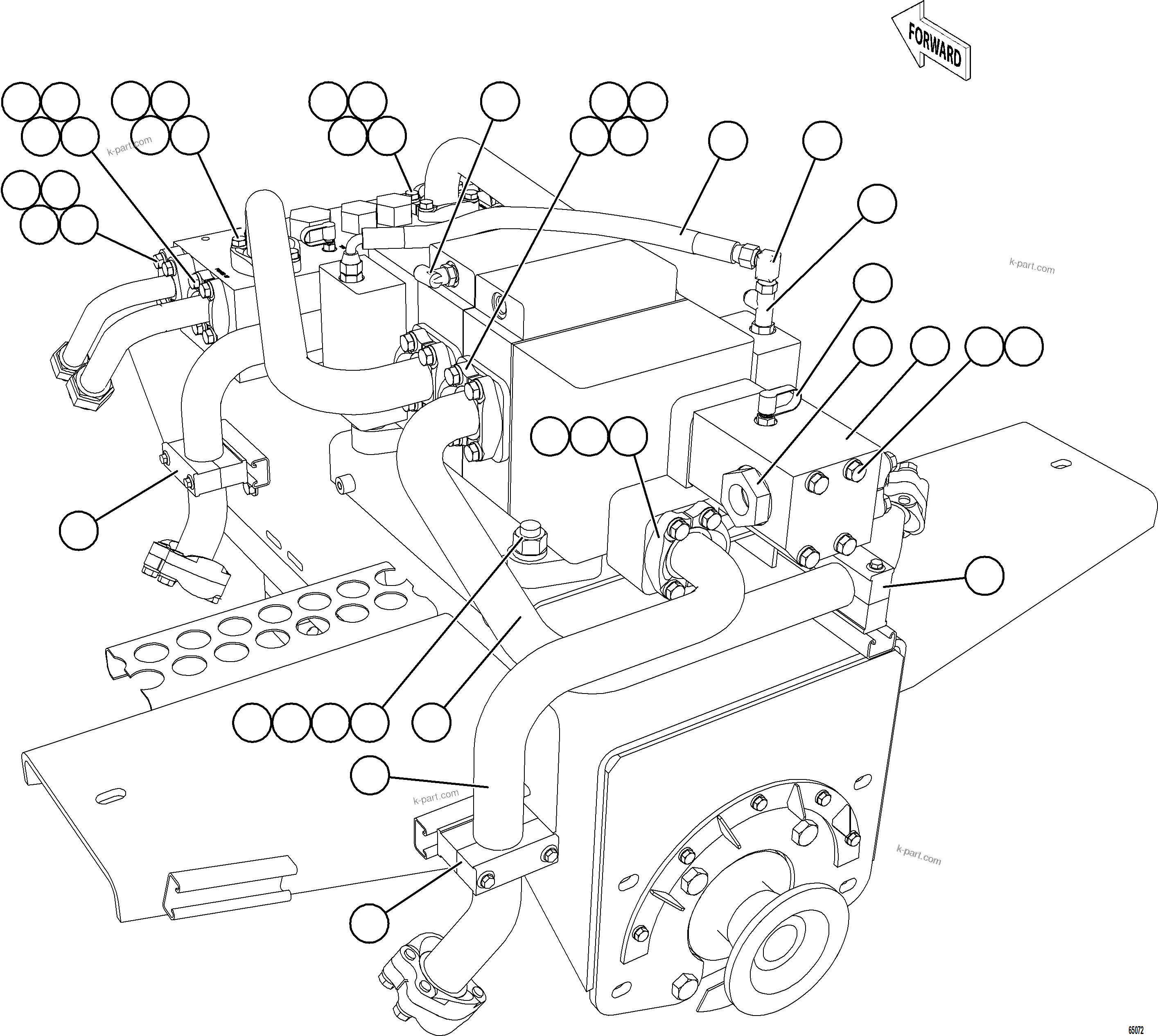

VALVE/PUMP MODULE PIPING 2/3 (65072) in AFE78-AF 930E-5 S/N A40128 - A40129 LOMAS BAYAS. Diagram image and parts list.
