AFE78-AH 930E-5 S/N A40131 - A40132 THEISS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58F-60-21400	HOSE (FROM HEAT EXCHANGER)	1
?	58F-60-50540	HOSE (TO BRAKE COOLING MANIFOLD)	1
?	58F-03-40190	HOSE (FLEX FROM HEAT EXCHANGER)	1
?	58F-60-50560	HOSE (FROM RIGHT BRAKE)	1
?	58F-60-50530	HOSE (FLEX FROM RIGHT BRAKE)	1
?	WB0671	FITTING, ELBOW - 90 DEG	1
?	MM0461	FLAT WASHER - M10	9
?	MM0471	LOCKWASHER - M10	9
?	MM0606	CAPSCREW - M10 X 1.50 X 30	4
?	58F-80-04850	BRACKET	1
?	58F-46-40731	BRACKET	1
?	WB0447	FITTING, BULKHEAD	1
?	WB0380	FITTING, ELBOW - 90 DEG	1
?	WB3858	CLAMP, CUSHIONED - 1 13/16"	4
?	426-06-11570	BRACKET	2
?	MM0604	CAPSCREW - M10 X 1.50 X 20	2
?	EG0554	ADAPTER, FLANGE	1
?	VC6500	CAPSCREW - 1/2" - 13NC X 2"	4
?	TR5445	LOCKWASHER - 1/2"	8
?	WA0232	O-RING	2
?	WB0526	FITTING, ELBOW - 90 DEG	1
?	WB0601	FITTING, STRAIGHT	1
?	WB0524	FITTING, ELBOW - 90 DEG	1
?	EG0555	ADAPTER, FLANGE	1
?	58F-09-00350	CAPSCREW - 1/2" - 13NC X 4"	4
?	WB3859	CLAMP, CUSHIONED	5
?	MM0605	CAPSCREW - M10 X 1.50 X 25	3
?	EM1393	SPACER	1
?	MM0178	NUT - M10 X 1.50	2
?	WA4711	CLAMP, HYDRA ZORB - 1 3/4"	1
?	WA4712	CLAMP, HYDRA ZORB - 2"	6
?	WB1053	CLAMP, HEAVY DUTY	5
?	EK9883	SPACER	1

Komatsu AFE78-AH 930E-5 S/N A40131 - A40132 THEISS parts catalog PDF

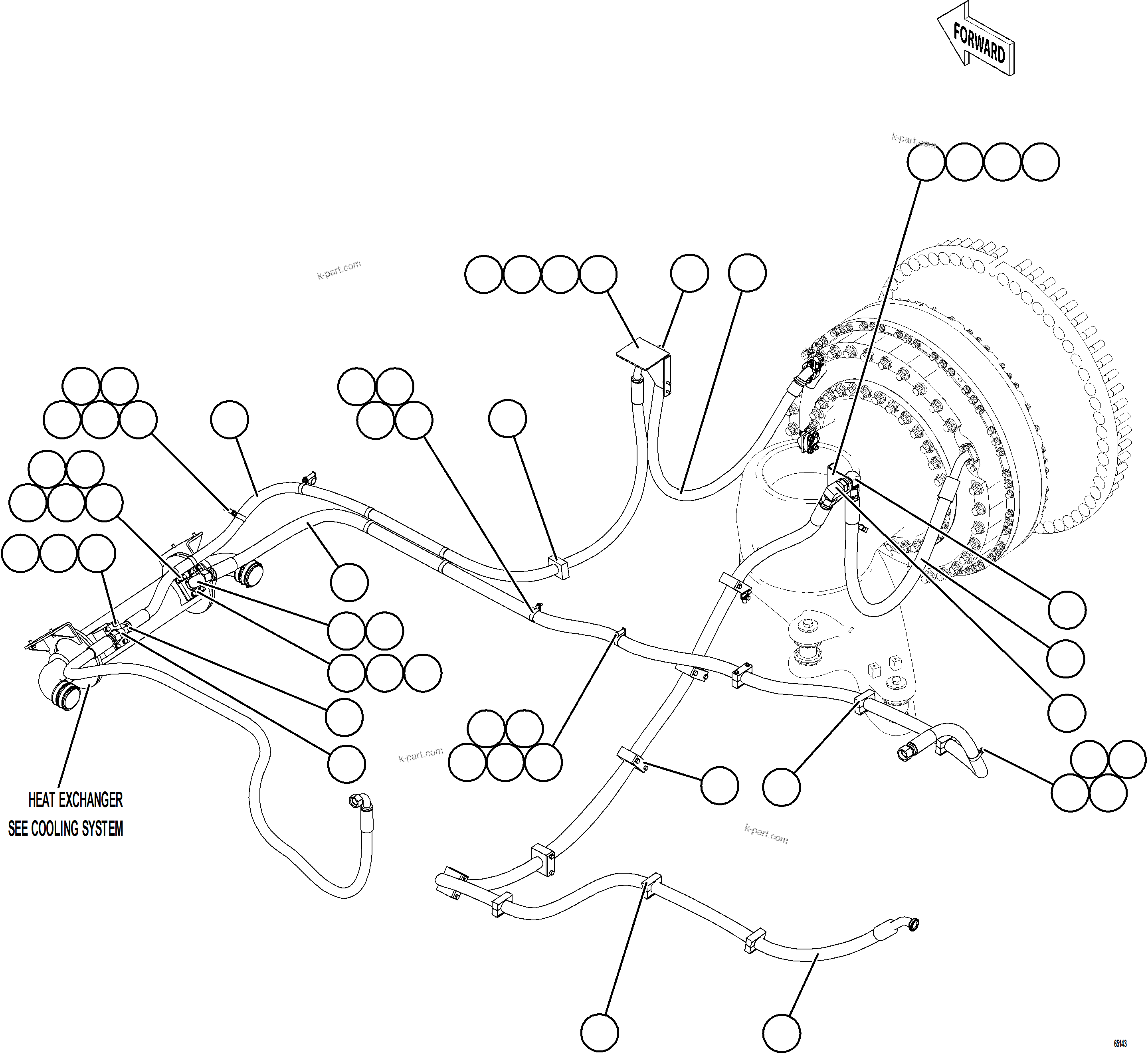

BRAKE COOLING PIPING - RIGHT FRONT (65143) in AFE78-AH 930E-5 S/N A40131 - A40132 THEISS. Diagram image and parts list.
