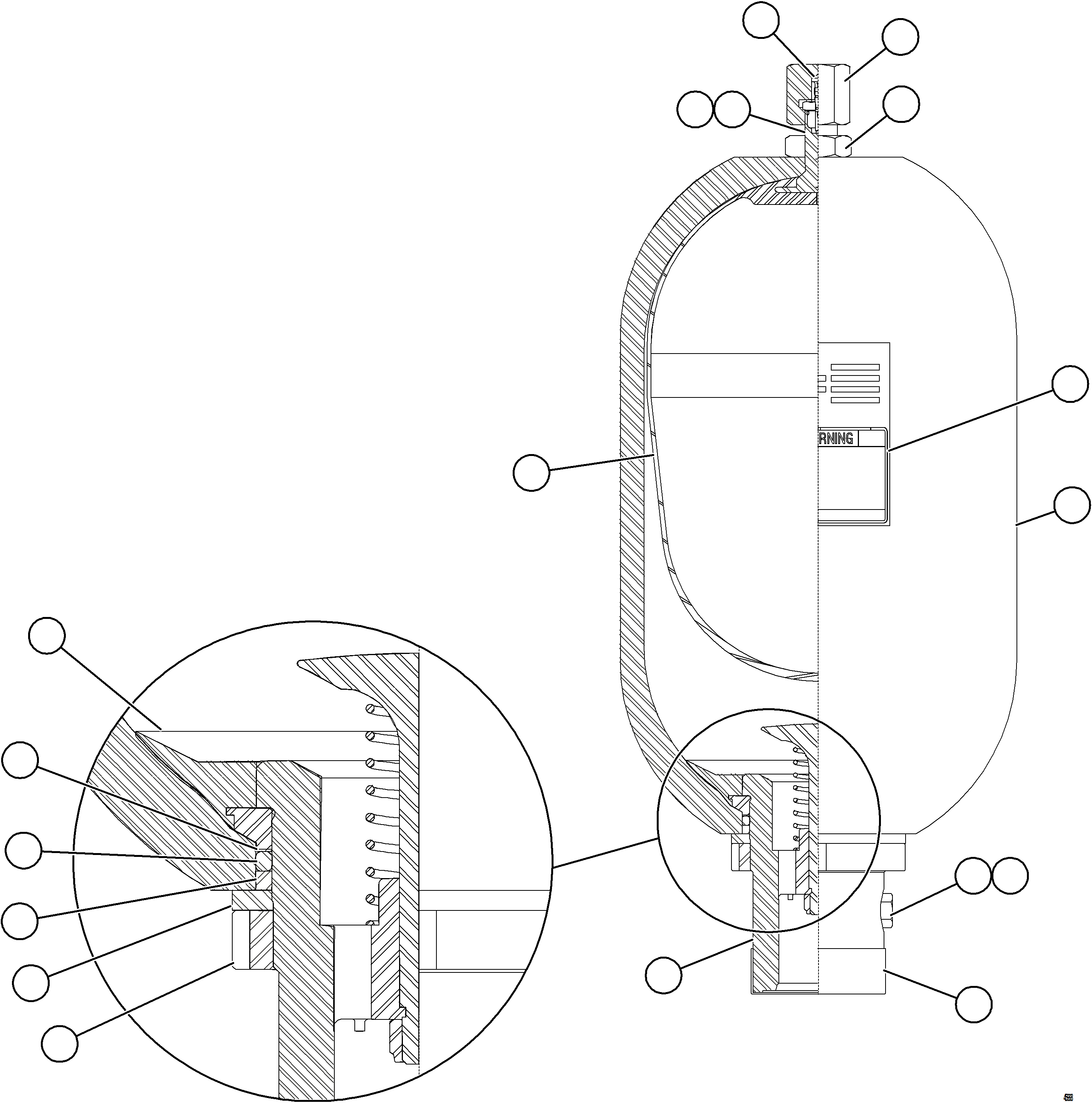

AFE78-AH 930E-5 S/N A40131 - A40132 THEISS

14 16 1 3 13 6 7 8 9 5 11 17 10 15 12 1 4 2

#	Part Number	Partname	Quantity
1	58E-98-07000	BLADDER AND GAS VALVE ASSEMBLY (2)/(3)	1
2	58E-98-51000	VALVE, PORT (1)	1
3	XA0067	RING, ANTI-EXTRUSION (1)/(3)	1
4	XA1981	DYNASEAL (2)/(3)	1
5	XA1932	JAM NUT (3)	1
6	XA0071	O-RING (1)/(2)/(3)	1
7	XA0072	RING, BACKUP (1)/(2)/(3)	1
8	XA0073	SPACER (1)	1
9	XA0074	RING, LOCKING (1)	1
10	XA0077	PLUG, BLEED (1)	1
11	58D-98-50100	LABEL, ACCUMULATOR	3
11	58D-98-50110	LABEL, CE/PED	1
12	XA1931	GAS VALVE ASSEMBLY (2)/(3)	1
13	XA1929	WASHER, BACKUP (1)/(2)/(3)	1
14	XA2482	PROTECTOR, PORT (1)	1
15	XA4897	O-RING (1)	1
16	TV9940	PROTECTOR, VALVE (3)	1
17		SHELL (4)	1
NS\|19	58E-98-51010	NOTE: (1) INCLUDED IN 58E-98-51010 VALVE KIT.	-1
NS\|20	58E-98-07010	(2) INCLUDED IN 58E-98-07010 BLADDER REPAIR KIT.	-1
NS\|21	58E-98-07020	(3) INCLUDED IN 58E-98-07020 BLADDER REBUILD KIT.	-1
NS\|22		(4) NOT SERVICED SEPARATELY.	-1

Komatsu AFE78-AH 930E-5 S/N A40131 - A40132 THEISS parts catalog PDF

BLADDER ACCUMULATOR ASSM (2.5 GAL) 58E-60-07010 (45968) in AFE78-AH 930E-5 S/N A40131 - A40132 THEISS. Diagram image and parts list.
