Diagram image 1 of 3

PC3000-6E S/N 06361

01 02 03 04 05 06 07 08 09 09 10 105 106 107 111 112 14 15 16 58 58 59 60 61 62 62 63 63 64 65 65 65 66 67 68 68 69 70 70 72 88 89 90 93 94 95

PC3000-6E S/N 06361

01 02 03 04 05 06 07 08 09 09 10 105 106 107 111 112 14 15 16 58 58 59 60 61 62 62 63 63 64 65 65 65 66 67 68 68 69 70 70 72 88 89 90 93 94 95

PC3000-6E S/N 06361

01 02 03 04 05 06 07 08 09 09 10 105 106 107 111 112 14 15 16 58 58 59 60 61 62 62 63 63 64 65 65 65 66 67 68 68 69 70 70 72 88 89 90 93 94 95

#	Part Number	Partname	Quantity	Reference
01	925 716 40	Control- filter plate	1
02		Valve block	1	612-1837
03		Cartridge block	1	991-1546
04		Pressure filter	1	991-0499c
05		Inline filter	1	991-0424c
06		Inline filter	1	991-0498c
07	907 438 40	Diaphragm-type accumulator	1
08	940 730 40	4/2 way directional spool valve	2
\|$9	797 167 73	Solenoid for fig-no.8 and 15	-2
\|$10	796 627 73	Sealkit	-2
09	180 325 40	Base plate	2
10	951 787 40	Pressure relief valve	1	991-0470a
11	517 698 98	Hose assy.	2
13	517 631 98	Hose assy.	1
14	928 849 40	Cover	1
15	940 732 40	4/3-Directional spool valve	1
16	951 794 40	Pressure relief valve	1
17	516 182 98	Socket	3
18	374 427 99	Socket	3
19	374 430 99	Socket	4
20	371 459 99	Socket	5
21	374 420 99	Socket	1
22	374 438 99	Socket	1
23	374 431 99	Socket	3
24	374 439 99	Socket	2
25	374 419 99	Socket	1
26	517 225 98	Socket	1
27	516 173 98	Socket	1
29	517 226 98	Socket	1
30	516 157 98	Socket	3
31	516 174 98	Socket	3
32	516 742 98	Socket	1
33	517 240 98	Union	1
34	906 930 40	Union	2
35	907 149 40	Union	3
36	516 192 98	Socket	5
37	576 405 40	Reducing union	1
38	551 379 40	Reducing union	1
40	517 242 98	Socket	1
42	517 444 98	Union	1
44	592 069 40	Union	2
46	516 740 98	Socket	1
47	512 371 98	Coupling	1
48	004 684 98	Coupling	1
50	255 694 40	Plug	2
51	180 113 40	Plug	1
52	255 171 40	Plug	1
54	906 346 40	Olive	12
55	371 258 99	Union nut	3
56	371 273 99	Union nut	9
57	374 471 99	Union	1
58	514 340 98	Screw	8
59	308 538 99	Bolt	4
60	308 560 99	Bolt	2
61	304 322 99	Bolt	4
62	307 734 99	Bolt	4
63	308 579 99	Bolt	12
64	514 532 98	Nut	1
65	507 025 98	Nut	4
66	334 599 99	Nut	2
67	334 682 99	Nut	4
68	340 506 99	Washer	4
69	340 510 99	Washer	4
70	607 492 40	Resilient sleeve	12
71	214 768 99	Pipe Ш10	-2
72	308 657 99	Bolt	4
73	513 141 98	Hose assy. DN 25x450	1
74	513 692 98	Hose assy. DN 25x800	1
76	517 699 98	Hose assy. DN 20x610	1
77	517 073 98	Union	4
78	517 090 98	Union	1
79	604 762 40	Union	1
81	655 426 40	Union	2
82	510 537 98	Socket	2
84	374 409 99	Socket	1
85	551 483 40	Union	1
86	798 453 73	Seal for item 78	1
88	507 037 98	Nut	6
89	340 465 99	Washer	6
90	167 693 40	Header ca. 1400mm	-2
91	510 741 98	Resilient sleeve	3
92	0443451510	Clamp Ш15	6
93	502 006 98	Bolt	10
94	510 741 98	Resilient sleeve	10
95	332 353 99	Nut	10
96	517 736 98	Hose assy. DN 10x2800	1
97	517 035 98	Socket	1
100	636 374 40	Hose assy. DN 25x2800	1
101	516 161 98	Socket	1
102	374 431 99	Union	1
105	958 963 40	Plug assy. with rubber grommet	3
106	941 777 40	Plate	3
107	174 411 40	Cable strap	6
111	958 962 40	Plug	3
112	950 190 40	Rubber grommet	3

Komatsu PC3000-6E S/N 06361 parts catalog PDF

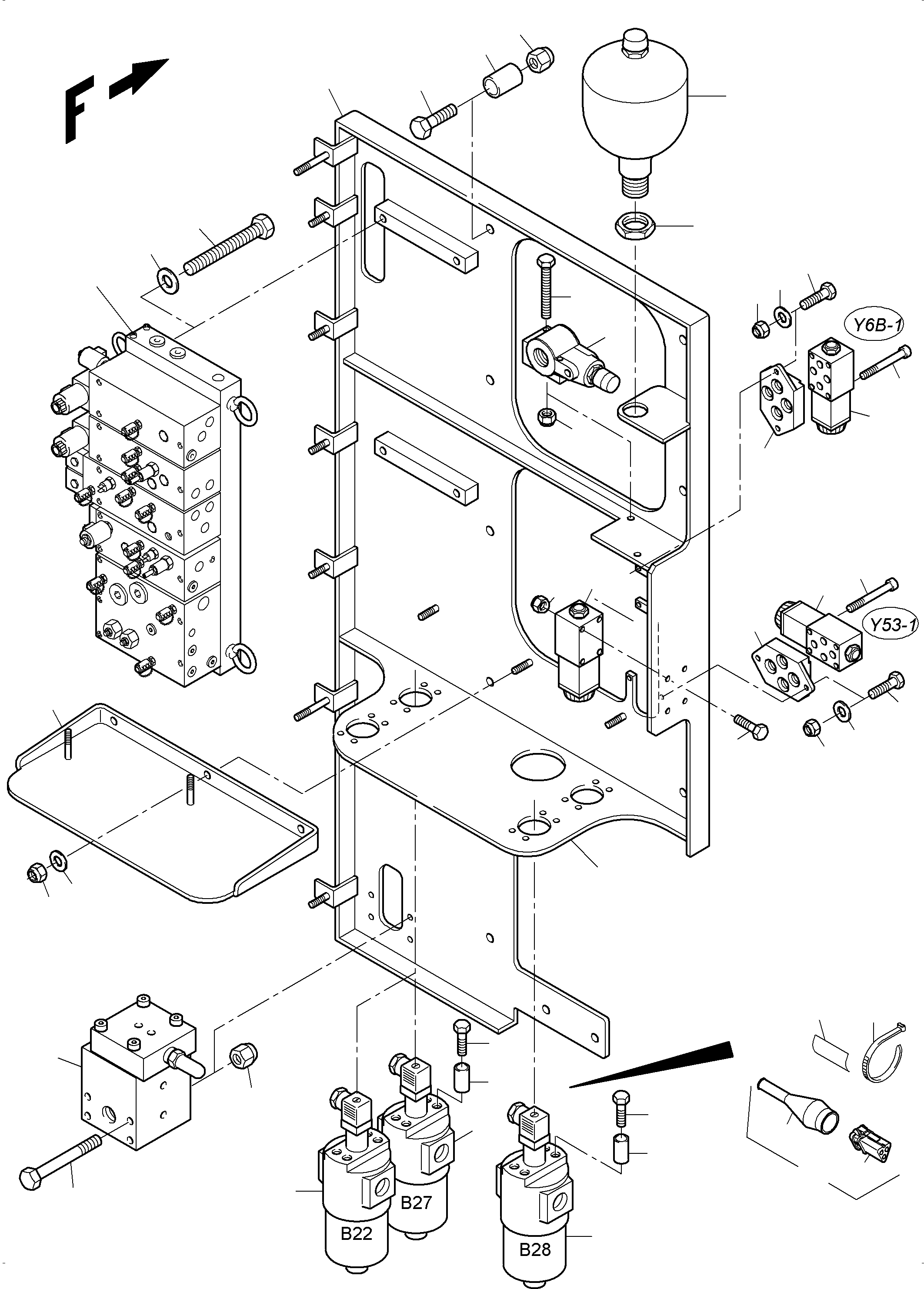

CONTROL- AND FILTER PLATE (255-1841g) in PC3000-6E S/N 06361. Diagram image and parts list.
