PC3000-6E S/N 06361

01 02 04 07 08 09 10 11 12 12 13 14 15 15 15 16 17 17 17 18 18 18 18 19 20 20 22 25 27 28 29 32 33 34 38 38 38 41 42 44 44 46 49 50 51 53 53 53 55 60 71 71 71 71 71 71 71 72 72 81 82 82 84 84 84 84 84 85 85 85 85 85 85 86 87 88 88

PC3000-6E S/N 06361

#	Part Number	Partname	Quantity	Options
01	926 983 40	Bridge	3	InternBDB: 1 1/2"-S /2"-S 140x340 \| InternKon: 926 984 40 / 6
02	926 982 40	Socket	3	InternBDB: L 35 /M42x1,5 \| InternKon: 926 984 40 / 7
03	928 831 40	Block	1	InternBDB: 95x241 \| InternKon: 926 984 40 / 8
04	940 895 40	Filter	3	InternBDB: NW 120 03016902 Hydac \| InternKon: 926 984 40 / 10
05	941 101 40	Filter	1	InternBDB: NW 80 03365553 Hydac \| InternKon: 926 984 40 / 11
06	340 652 99	Washer	8	InternBDB: B 13,0 \| InternKon: 926 984 40 / 15
07	517 568 98	Bolt	24	InternBDB: M14x140 / DIN 931 \| InternKon: 926 984 40 / 16
08	308 615 99	Bolt	2	InternBDB: M12x130 / DIN 931 \| InternKon: 926 984 40 / 17
09	907 675 40	Flange adapter	1	InternBDB: GFS 35/35 L A3C X \| InternKon: 926 984 40 / 18
10	654 502 40	Intermediate flange	1	InternBDB: SAE 1 1/4" 3000 PSI \| InternKon: 926 984 40 / 19
11	356 209 40	Flange seal	6	InternBDB: 1 1/2 NBR 90 WN 341 986 40 Busak + Shamb. \| InternKon: 926 984 40 / 20
12	356 210 40	Flange seal	2	InternBDB: 1 1/4 NBR 90 \| InternKon: 926 984 40 / 21
13	006 633 98	Half flange	2	InternBDB: 32 /210 \| InternKon: 926 984 40 / 22
14	319 430 99	Screw	4	InternBDB: ZYLSHR M10 X 50 8.8 DIN 00912 \| InternKon: 926 984 40 / 23
15	180 113 40	Plug	5	InternBDB: Vsti R 1/4 ED \| InternKon: 926 984 40 / 24
16	635 933 40	Intermediate flange	1	InternBDB: SAE 2" 3000 PSI \| InternKon: 926 984 40 / 25
17	006 635 98	Half flange	6	InternBDB: 50 /210 \| InternKon: 926 984 40 / 26
18	385 243 40	Flange seal	4	InternBDB: 2 NBR 90 \| InternKon: 926 984 40 / 27
19	319 437 99	Bolt	4	InternBDB: ZYLSHR M12 X 55 8.8 DIN 00912 \| InternKon: 926 984 40 / 28
20	319 156 99	Bolt	8	InternBDB: ZYLSHR M12 X 30 8.8 DIN 00912 \| InternKon: 926 984 40 / 29
21	374 415 99	Union	1	InternBDB: SDS-L42XM48x2 \| InternKon: 926 984 40 / 33
22	374 422 99	Union	2	InternBDB: SDS-L35XM42x2 \| InternKon: 926 984 40 / 34
23	007 136 98	Union	1	InternBDB: Voss 35-LM \| InternKon: 926 984 40 / 35
24	516 283 98	Hose assy. DN32x2100	1	InternBDB: 025 DOL 35 /DOL 35-45 \| InternKon: 926 984 40 / 36
25	517 654 98	Hose assy. DN32x2100	1	InternBDB: 025 DOL 35 /DOL 35-90 \| InternKon: 926 984 40 / 37
26	517 391 98	Hose assy. DN32x1300	1	InternBDB: 025 DOL 35 /DOL 35-90 \| InternKon: 926 984 40 / 38
27	517 655 98	Hose assy. DN50x1300	1	InternBDB: 025 FL2 /FL2-90 \| InternKon: 926 984 40 / 39
28	517 656 98	Hose assy. DN50x1700	1	InternBDB: 025 FL2 /CEL 42 \| InternKon: 926 984 40 / 40
29	517 170 98	Socket	1	InternBDB: GZR 42/35-PL \| InternKon: 926 984 40 / 41
30	907 683 40	Elbow	2	InternBDB: Interhydraulik Pumpe 1+2 \| InternKon: 926 984 40 / 42
31	907 684 40	Socket	2	InternBDB: Pumpe 1+2 \| InternKon: 926 984 40 / 43
32	907 685 40	Elbow	1	InternBDB: Pumpe 3 oben \| InternKon: 926 984 40 / 44
33	907 686 40	Elbow	1	InternBDB: Pumpe 3 unten \| InternKon: 926 984 40 / 45
34	932 885 40	Suction hose	1	InternBDB: Interhydraulik 304-140x385 \| InternKon: 926 984 40 / 46
35	907 687 40	Elbow	1	InternBDB: Lьfterpumpe unten \| InternKon: 926 984 40 / 47
36	907 688 40	Elbow	1	InternBDB: Lьfterpumpe oben \| InternKon: 926 984 40 / 48
37	907 508 40	Suction hose	-2	InternBDB: 0,250 m 304-75 \| InternKon: 926 984 40 / 49
38	517 582 98	O-ring	9	InternBDB: 136,12x3,53B NB 90 \| InternKon: 926 984 40 / 50
39	508 105 98	O-ring	2	InternBDB: 98,02x3,53B NB 90 \| InternKon: 926 984 40 / 51
40	517 583 98	O-ring	1	InternBDB: 85,32x3,53B NB 90 \| InternKon: 926 984 40 / 52
41	517 558 98	O-ring	3	InternBDB: 38,70x3,40B NB 90 \| InternKon: 926 984 40 / 53
42	319 442 99	Bolt	16	InternBDB: ZYLSHR M16 X 40 8.8 DIN 00912 \| InternKon: 926 984 40 / 54
43	319 157 99	Bolt	4	InternBDB: ZYLSHR M12 X 35 8.8 DIN 00912 \| InternKon: 926 984 40 / 55
44	907 681 40	Clamp	6	InternBDB: Interhydraulik GBS NW 140 \| InternKon: 926 984 40 / 56
45	907 752 40	Clamp	2	InternBDB: Interhydraulik GBS 89/25 M8 \| InternKon: 926 984 40 / 57
46	928 811 40	Socket	3	InternBDB: L 15 /M24x1,5 \| InternKon: 926 984 40 / 58
47	928 298 40	Block	1	InternBDB: 65x145 \| InternKon: 926 984 40 / 59
48	512 938 98	Hose assy. DN12x1200	1	InternBDB: 240 DOL 15 /DOL 15-90 \| InternKon: 926 984 40 / 61
49	627 121 40	Hose assy. DN12x1700	1	InternBDB: 240 DOL 15 /DOL 15-90 \| InternKon: 926 984 40 / 62
50	514 034 98	O-ring	3	InternBDB: 20,70x3,40B NB 90 \| InternKon: 926 984 40 / 64
51	374 407 99	Union	3	InternBDB: SDS-L15XM18x1,5 \| InternKon: 926 984 40 / 66
52	517 791 98	Bolt	2	InternBDB: 6KTSHR M12X 65 8.8 DIN 00931 \| InternKon: 926 984 40 / 67
53	334 600 99	Nut	8	InternBDB: M 12 / DIN 985 \| InternKon: 926 984 40 / 68
54	906 983 40	Union	1	InternBDB: 15 LM /OMD \| InternKon: 926 984 40 / 69
55	319 188 99	Bolt	12	InternBDB: ZYLSHR M16 X 50 8.8 DIN 00912 \| InternKon: 926 984 40 / 76
56	517 771 98	Hose assy. DN12x850	1	InternBDB: 240 DOL 15 / DOL 15-90 \| InternKon: 926 984 40 / 63
57	932 886 40	Suction hose	2	InternBDB: Interhydraulik 304-140x480
60	928 841 40	Retainer	1	InternKon: 943 506 40 / 10
70	930 615 40	Retainer	1	InternBDB: 30x8x100 \| InternKon: 926 984 40 / 70
71	506 371 98	Clamp set	7	InternBDB: KLEMMHPAAR S-4-E PA DIN 03015 \| InternKon: 926 984 40 / 71
72	517 118 98	Lock washer	4	InternBDB: SG-SHB 12 STZN WN 65593840 \| InternKon: 926 984 40 / 72
73	0443452110	Clip	3	InternBDB: SCHELLE D=21,5 BLZ=10 77 KES 04434 \| InternKon: 926 984 40 / 73
74	340 465 99	Washer	1	InternBDB: SHB B 10,5 140HV DIN 00125 \| InternKon: 926 984 40 / 74
75	507 037 98	Nut	2	InternBDB: 6KTMU M10 8 DIN 00985 \| InternKon: 926 984 40 / 75
77	307 842 99	Bolt	1	InternBDB: 6KTSHR M20 X 35 8.8 DIN 00933 \| InternKon: 926 984 40 / 77
78	307 777 99	Bolt	2	InternBDB: 6KTSHR M10 X 25 8.8 DIN 00933 \| InternKon: 926 984 40 / 78
79	308 599 99	Bolt	2	InternBDB: 6KTSHR M12X 105 8.8 DIN 00931 \| InternKon: 926 984 40 / 79
80	517 124 98	Lock washer	1	InternBDB: SG-SHB 20 STZN WN 65593840 \| InternKon: 926 984 40 / 80
81	930 618 40	Half clamp retainer	1	InternBDB: SCHELLENHALTERUNG PC 3000- 6 \| InternKon: 926 984 40 / 81
82	308 613 99	Bolt	4	InternBDB: 6KTSHR M12X 110 8.8 DIN 00931 \| InternKon: 926 984 40 / 82
84	511 246 98	Grommet	5	InternBDB: ELASTOMEREINS S-4-43 GUMMI DIN 03015 \| InternKon: 926 984 40 / 84
85	534 008 99	Cover plate	6	InternBDB: D-PLATTE S-DP-A-4 W1 DIN 03015 \| InternKon: 926 984 40 / 85
86	506 701 98	Bolt	2	InternBDB: 6KTSHR M12X 230 8.8 DIN 00931 \| InternKon: 926 984 40 / 86
87	506 291 98	Bolt	2	InternBDB: 6KTSHR M12X 220 8.8 DIN 00931 \| InternKon: 926 984 40 / 87
88	502 626 98	Grommet	2	InternBDB: ELASTOMEREINS S-4-56,4 GUMMI DIN 03015 \| InternKon: 926 984 40 / 88

Komatsu PC3000-6E S/N 06361 parts catalog PDF

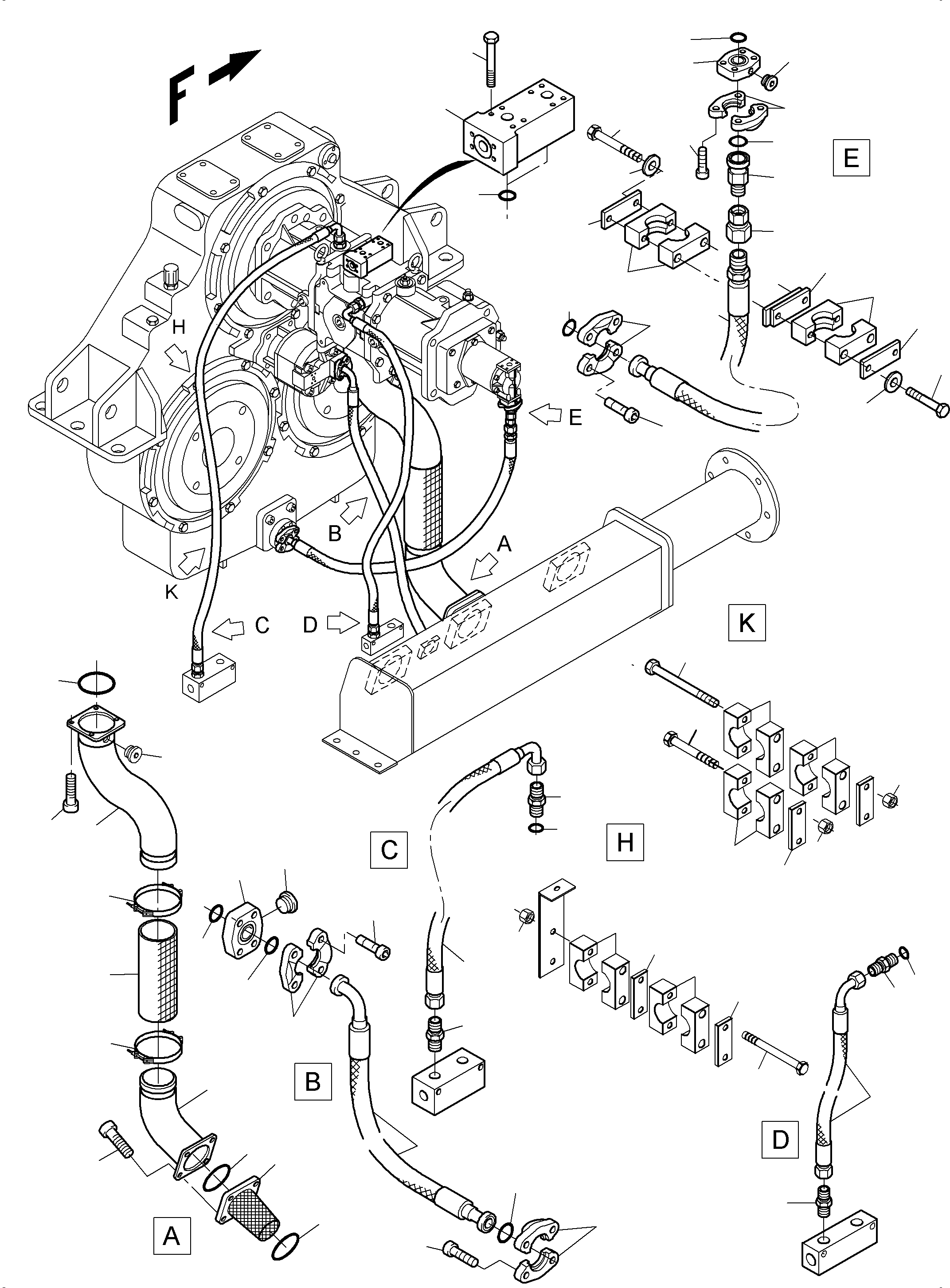

SUCTION LINES (485-1811e) in PC3000-6E S/N 06361. Diagram image and parts list.
