AFE69-Q 730E-8 S/N A40064, A40067 ASSMANG

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	BF5470	SCREW, FLAT HEAD	2
?	58F-98-40380	WEIGHT, COUNTER	2
?	BF5473	RING, RETAINING	2
?	BF5511	RING, RETAINING	2
?	BF5475	CRANK, ECCENTRIC	1
?	BF5476	BEARING, BALL	1
?	BF5474	CRANKROD	1
?	58F-90-00050	SCREW, PIVOT	2
?	58F-90-00130	BUSHING, PIN	2
?	BF5477	PIN, OUTLET	1
?		O-RING (1)	1
?	58F-90-00140	ANCHOR, WRIST PIN	1
?		O-RING (1)	1
?		WASHER, BACKUP	1
?		SEAL, CUP (1)	1
?	BF5478	UPPER BUSHING AND PLUNGER	1
?		RING, STEEL BACKUP (1)	1
?		O-RING (1)	1
?		CLIP, RETAINER (1)	1
?	58F-98-40630	ROD, PLUNGER	1
?		SPRING (1)	1
?	58F-98-40610	ROD, CHECK	1
?	LA0906	BALL, STEEL (1)	1
?	58F-90-00150	PLUNGER, PUMP	1
?	58F-98-40680	TUBE, RECIPROCATING	1
?		SEAL, CUP (1)	1
?		O-RING (1)	2
?	58F-90-00160	CAGE, BALL	1
?	BF3823	BALL, STEEL (1)	1
?	BF5488	SEAT, CHECK	1
?	58F-98-40740	NOTE: (1) NOT SERVICED SEPARATELY. INCLUDED IN	-1
?		58F-98-40740 SEAL KIT.	-1

Komatsu AFE69-Q 730E-8 S/N A40064, A40067 ASSMANG parts catalog PDF

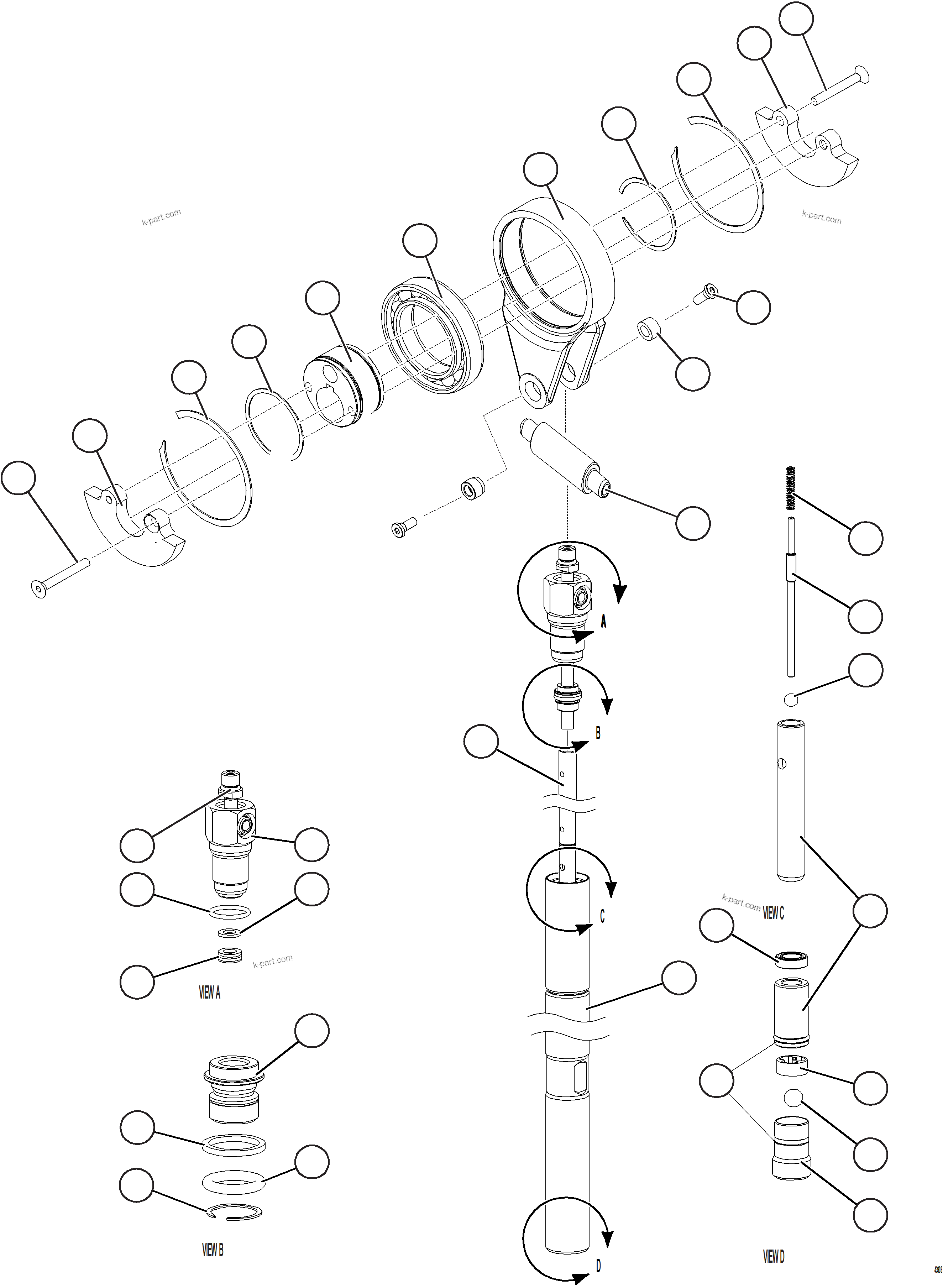

LUBE PUMP ASSEMBLY 3/3 58F-98-40240 (43903) in AFE69-Q 730E-8 S/N A40064, A40067 ASSMANG. Diagram image and parts list.
