AFE69-Q 730E-8 S/N A40064, A40067 ASSMANG

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58E-06-10020	RELAY	3
?	SG3408	NUT - #10 - 24NC	6
?	VC5344	FLAT WASHER - #10	3
?	58D-06-00243	HARNESS, WIRING - LADDER	1
?	MM0605	CAPSCREW - M10 X 1.50 X 25	8
?	MM0461	FLAT WASHER - M10	8
?	MM0471	LOCKWASHER - M10	8
?	58F-80-05040	COVER, SWITCH	1
?	58E-06-13190	SWITCH, PUSH-PULL	1
?	58F-80-05540	PLATE	1
?	MM0581	CAPSCREW - M6 X 1.00 X 16	3
?	MM0711	FLAT WASHER, HARDENED - M6	5
?	VP4693	GROMMET	1
?	58E-06-08400	HORN	1
?	MM0469	LOCKWASHER - M6	2
?	MM0583	CAPSCREW - M6 X 1.00 X 25	2
?	XB5184	SEAT	2
?	VY0876	GROMMET	2
?	WB1304	CLAMP, CUSHIONED - 9/16"	2
?	07020-00001	FITTING, GREASE	2
?	58E-09-10120	PIN	2
?	07145-00050	SEAL	4
?	SL8698	RING, RETAINER	4
?	MM0604	CAPSCREW - M10 X 1.50 X 20	2
?	08193-21012	CLIP	2
?	56B-06-15610	SWITCH, PROXIMITY	2
?	WB3524	SCREW, HEX HEAD - #12 - 14NC X 3/4"	4
?	MM0594	CAPSCREW - M8 X 1.25 X 25	2
?	XC3533	PLATE, COVER	1
?	XC3532	PLATE, HEADLIGHT MOUNTING	1
?	58B-54-04840	BUMPER	2
?	58B-09-00200	CAPSCREW - M6 X 1.00 X 25	4
?	01315-20612	SCREW	4
?	58D-54-11010	PLATE	1
?	58E-54-18950	SPACER	4
?	MM0460	FLAT WASHER - M8	2
?	MM0470	LOCKWASHER - M8	2

Komatsu AFE69-Q 730E-8 S/N A40064, A40067 ASSMANG parts catalog PDF

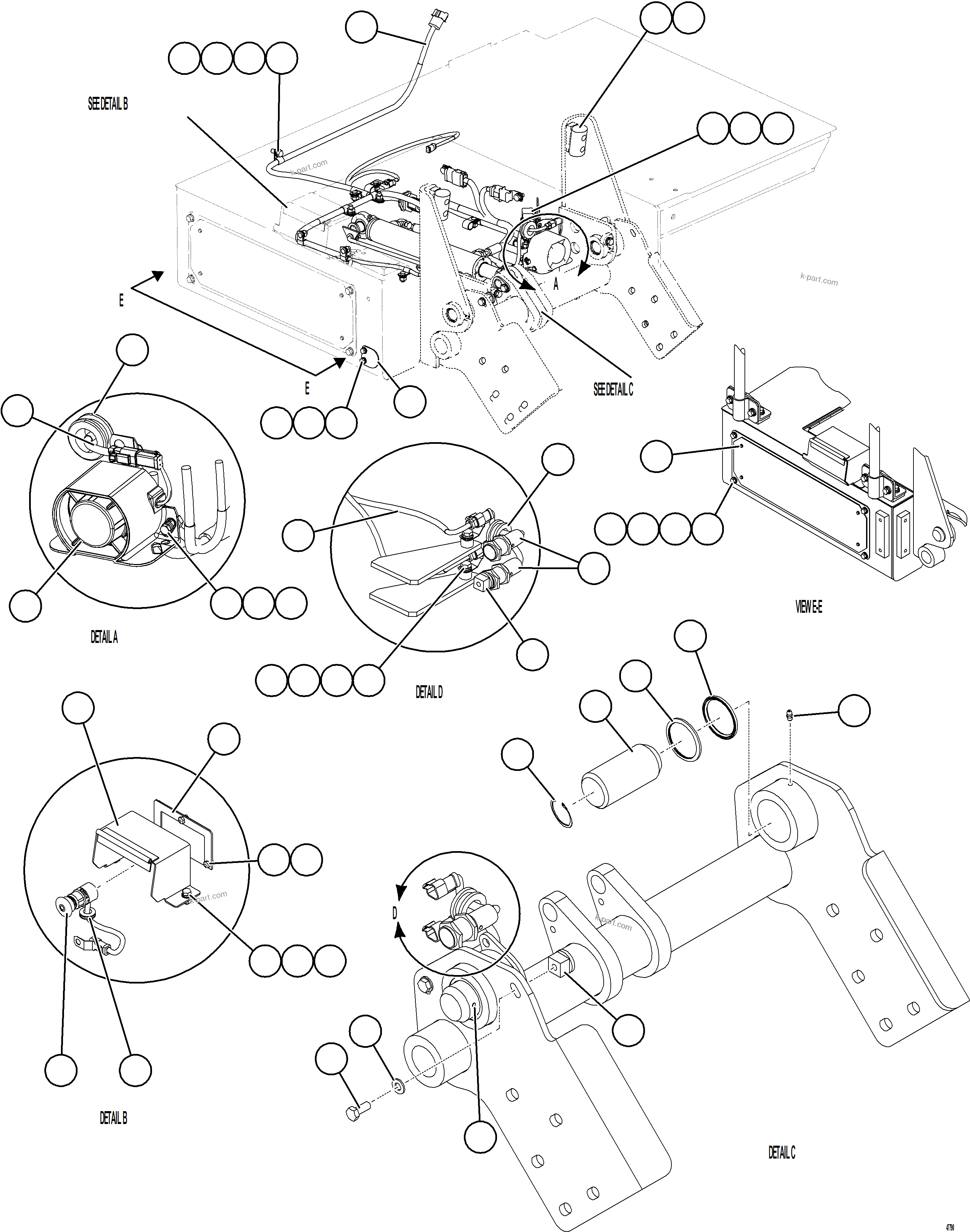

PLATFORM ASSEMBLY 2/2 58D-54-10632 (47790) in AFE69-Q 730E-8 S/N A40064, A40067 ASSMANG. Diagram image and parts list.
