AFE78-BB 930E-5 S/N A40173 - A40175, A40181 LOMAS BAYAS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EK2619	TUBE	1
?	VH6718	CLAMP, SPLIT FLANGE - 2 1/2"	4
?	WB0584	FITTING, STRAIGHT	1
?	EK2618	TUBE	1
?	EK2614	TUBE	1
?	EK2613	TUBE	2
?	EH3596	TUBE	2
?	VM0313	PLUG	1
?	PB6770	COUPLING, MALE QUICK DISCONNECT	6
?	TF5194	O-RING	6
?	162144	CAP, DUST	6
?	TA2968	PLUG, DUST	2
?	PB4685	COUPLING, HYDRAULIC	2
?	WA3568	FITTING, TUBE	2
?	WB0547	FITTING, ELBOW - 45 DEG	2
?	TV1918	CAPSCREW - 1/2" - 13NC X 1 3/4"	8
?	TR5445	LOCKWASHER - 1/2"	36
?	WA5630	CLAMP, SPLIT FLANGE - 1 1/4"	2
?	VG9096	O-RING	1
?	VC6561	CAPSCREW - 1/2" - 13NC X 1 1/2"	24
?	TF8090	CLAMP, SPLIT FLANGE - 1 1/2"	2
?	VG9095	O-RING	1
?	TF3231	CLAMP, SPLIT FLANGE - 2"	10
?	WA0187	O-RING	3
?	58F-09-00320	CAPSCREW - 1/2" - 13NC X 2 3/4"	4

Komatsu AFE78-BB 930E-5 S/N A40173 - A40175, A40181 LOMAS BAYAS parts catalog PDF

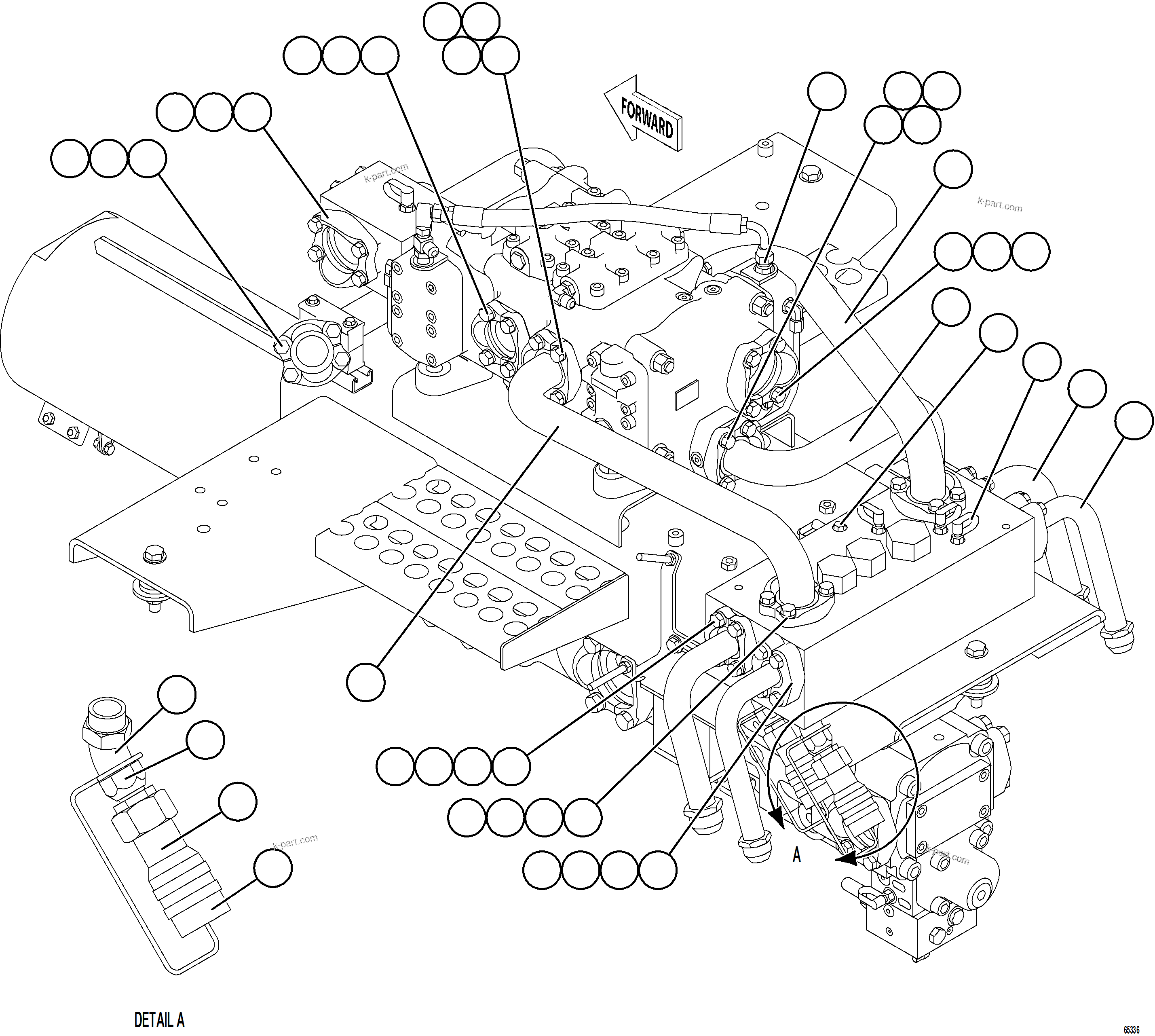

VALVE/PUMP MODULE PIPING 1/3 (65336) in AFE78-BB 930E-5 S/N A40173 - A40175, A40181 LOMAS BAYAS. Diagram image and parts list.
