AFE78-BB 930E-5 S/N A40173 - A40175, A40181 LOMAS BAYAS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	XA3749	POPPET	1
?	VJ2019	POPPET	1
?	VJ2020	PISTON	1
?	VE3610	SPRING (2)/(3)	1
?	VJ2016	BACKUP RING (1)/(2)/(3)	3
?	VJ2011	O-RING (1)/(2)/(3)	3
?	VJ2023	SNAP RING	1
?	VJ2015	SPRING (2)	1
?	VJ2017	NUT	1
?	XA3750	SCREW, ADJUSTING	1
?	VJ2018	PLUG	1
?	VJ2014	POPPET	1
?	VJ2010	BACKUP RING (1)/(2)/(3)/(4)	1
?	VJ2012	O-RING (1)/(2)/(3)/(4)	1
?	XA3747	NOTE: (1) INCLUDED IN XA3747 SEAL KIT.	-1
?	XA3748	(2) INCLUDED IN XA3748 SEAL & SPRING KIT.	-1
?	BF3048	(3) INCLUDED IN BF3048 MINOR SERVICE KIT.	-1
?	58B-98-50000	(4) INCLUDED IN 58B-98-50000 RELIEF VALVE KIT.	-1

Komatsu AFE78-BB 930E-5 S/N A40173 - A40175, A40181 LOMAS BAYAS parts catalog PDF

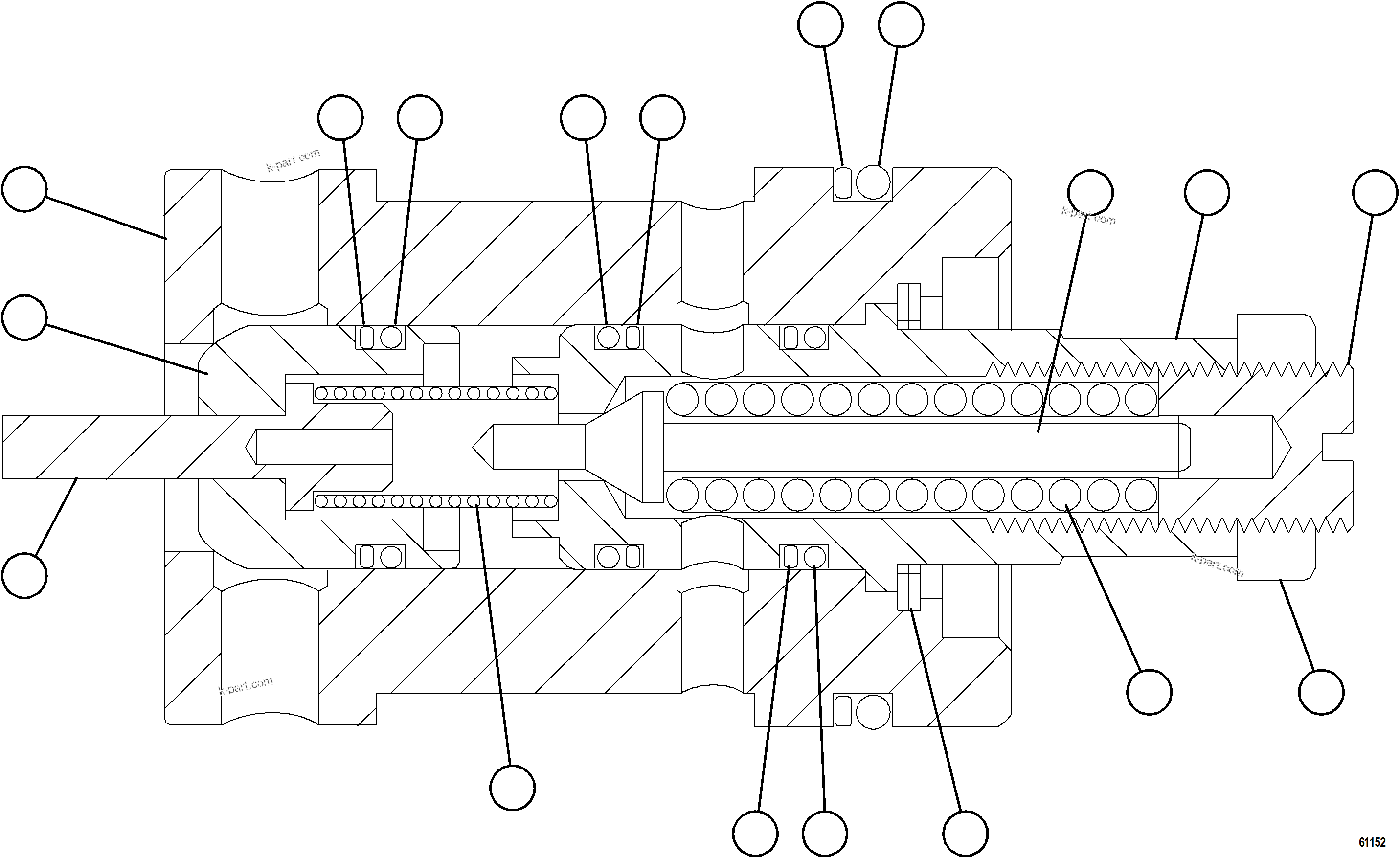

RELIEF VALVE ASSEMBLY 58B-98-01650 (61152) in AFE78-BB 930E-5 S/N A40173 - A40175, A40181 LOMAS BAYAS. Diagram image and parts list.
