Diagram image 1 of 2

PC3000-6 S/N 06375

01 02 03 04 05 06 07 08 09 10 11 12 120 120 121 122 122 123 124 125 127 128 128 128 13 130 14 15 16 17 17 18 19 20 21 22 23 23 24 24 25 26 27 28 29 30 32 33 33 34 35 35 36 36 37 37 37 38 38 38 39 40 40 41 42 43 43 43 44 45 46 47 47 47 47 48 48 50 51 51 51 51 52 52 52 52 53 54 54 54 55 55 55 55 55 56 57 59 60 61 62 63 64 65 65 66 67 71 72 73 74 75 75 76 76 81 83

PC3000-6 S/N 06375

#	Part Number	Partname	Quantity
01	939 251 40	Post 1	1
02	939 252 40	Post 2	1
03	957 368 40	Post 3	1
04	957 353 40	Post 4	1
05	957 374 40	Post 5	1
06	957 384 40	Post 6	1
07	957 371 40	Post 7	1
08	946 171 40	Door, radiator	1
09	957 377 40	Wall	1
10	957 380 40	Wall	1
11	927 264 40	Wall	1
12	996 207 40	Door PDG	1
13	957 396 40	Door	1
14	939 282 40	Door	1
15	957 389 40	Plate	1
16	957 390 40	Plate	1
17	946 165 40	Hinge consist. of fig nos. 71-74	5
18	946 164 40	Hinge consist. of fig nos. 75-76	2
19	946 151 40	Hinge consist. of fig nos. 75-77	2
20	949 385 40	Cotter pin	1
21	939 280 40	Cotter pin	1
22	939 281 40	Plate	1
23	940 906 40	Fastener, l.h.	1
24	940 907 40	Fastener	1
25	927 230 40	Handrail Tube	2
26	957 388 40	Plate	1
27	957 393 40	Retainer	1
28	957 387 40	Retainer	1
29	930 625 40	Cover assy.	1
30	167 693 40	Flex. Header	-2
32	510 741 98	Resilient sleeve	57
33	510 732 98	Resilient sleeve	28
34	307 775 99	Bolt	19
35	307 777 99	Bolt	4
36	307 779 99	Bolt	4
37	307 780 99	Bolt	10
38	307 802 99	Bolt	23
39	307 804 99	Bolt	9
40	307 805 99	Bolt	19
41	500 814 98	Bolt	1
42	308 608 99	Bolt	57
43	308 610 99	Bolt	56
44	304 197 99	Bolt to fig-nos. 01, 04-06	16
45	518 595 98	Bolt to fig-nos. 02, 03 + 07	12
46	513 252 98	Screw	1
47	340 467 99	Washer	51
48	340 007 99	Washer	32
50	340 510 99	Washer	1
51	517 122 98	Lock washer	9
52	517 118 98	Lock washer	39
53	506 129 98	Washer	1
54	507 037 98	Nut	10
55	334 600 99	Nut	48
56	957 395 40	Pipe	1
57	950 233 40	Profiled joint	-2
59	081 282 40	Silent block	1
60	592 259 40	Profiled joint	-2
61	957 318 40	Plate	1
62	946 184 40	Yoke	1
63	342 057 99	Split pin	1
64	340 465 99	Washer	4
65	950 523 40	Plug	22
66	307 822 99	Bolt	5
67	517 123 98	Lock washer	5
71	946 173 40	Pin	1
72	350 562 99	Grease nipple	1
73	340 612 99	Washer	2
74	342 061 99	Cotter pin	1
75	081 320 40	Hinge	4
76	081 480 40	Hinge pin	4
81	957 361 40	Roof frame	1
82	930 569 40	Retainer	1
83	180 889 40	Plug	4
84	318 603 99	Screw	2
85	517 120 98	Lock washer	2
91	958 211 40	Roof section 1	1
92	958 224 40	Roof section 2	1
93	958 260 40	Roof section 3	1
94	996 204 40	Roof section assy. 4 (with roof flap)	1
95	598 248 40	Threaded rail	4
96	958 285 40	Threaded rail	2
97	958 286 40	Threaded rail	2
98	958 287 40	Threaded rail	2
99	598 250 40	Threaded rail	2
100	948 275 40	Angle	1
101	953 238 40	Plate	1
102	958 223 40	Cover	1
107	307 949 99	Bolt	9
109	332 197 99	Nut	2
110	345 225 99	Sleeve	2
113	324 741 40	Plug	4
114	324 603 40	Plug	1
120	941 449 40	Accessory r.h.	1
121	941 444 40	Handle	2
122	941 448 40	Accessory l.h.	1
123	941 447 40	Collar	2
124	941 451 40	Collar	2
125	941 445 40	Handle	2
127	941 450 40	Closing cam	2
128	941 563 40	Axle	2
130	308 356 99	Bolt	7
131	996 202 40	Roof section 4 (w/o roof flap item 132)	1
132	967 366 40	Roof flap	1
133	390 199 40	Hinge	1
134	081 474 40	Hood fastener	1
141	621 108 40	Pin	1
144	340 612 99	Washer	1
145	342 061 99	Cotter pin	1
146	350 562 99	Grease nipple	1

Komatsu PC3000-6 S/N 06375 parts catalog PDF

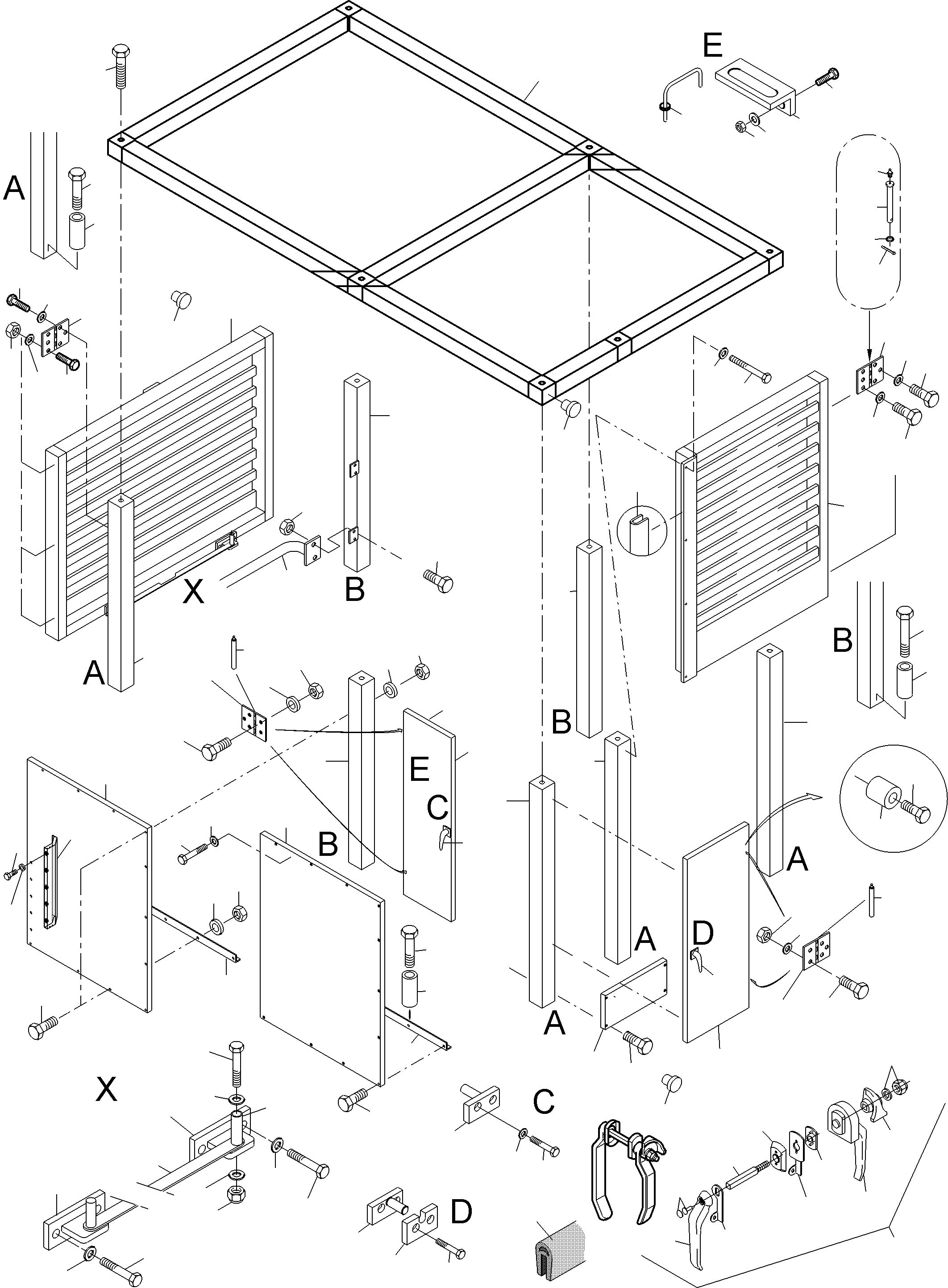

COVERING - ENGINE HOUSING (489-1032a) in PC3000-6 S/N 06375. Diagram image and parts list.
