PC3000-6 S/N 06377

01 02 101 102 103 104 105 106 108 109 110 111 112 120 121 122 123 125 126 15 21 22 27 28 29 33 33 35 36 37 38 39 40 40 42 42 46 47 48 50 51 51 60 61 62 63 63 63 63 75 76 77 78 78 80 81 81 81 81 82 82 82 90 91

PC3000-6 S/N 06377

#	Part Number	Partname	Quantity	Reference
01	105 774 42	Oil tank MB	1
02	933 882 40	Valve block, incl. fig-nos: 120, 121	1
03	100 167 97	Oil aerosol separator	1
04	910 951 40	Filter cover	4
05	930 078 40	Cover	4
06	975 150 40	Cover plate	1
07	436 040 40	U-bolt	2
08	366 504 40	Compression spring	4
09	910 954 40	Bushing	4
12	255 694 40	Plug	2
13		Return oil filter	3	991-0348
14		Aeration filter, assy.	1	090-5586
15	111 79842	Annular flap assy.	1
18	916 746 40	Seal	1
21	389 472 40	Seal	1
22	440 723 40	Compensator	1
23	502 119 98	O-ring	4
24	518 036 98	Clamp set	1
25	308 581 99	Bolt	2
26	304 309 99	Bolt	2
27	505 449 98	Bolt	4
28	307 845 99	Bolt	2
29	518 546 98	Lock washer	2
30	534 004 99	Cover plate	1
31	520 137 98	Bolt	38
33	813 413 73	O-ring	2
34	308 874 99	Bolt	4
35	334 686 99	Nut	6
36	907 594 40	Fluid level sensor with swimming ball fig.-nos.: 33,40,42	1
37	350 562 99	Grease nipple	1
38	316 213 99	Washer	2
39	769 653 73	Switch	1
40	511 602 98	Banjo bolt	2
41	517 121 98	Lock washer	38
42	972 009 00	O-ring	2
43	374 407 99	Socket	1
44	515 820 98	Hose DN 12 x 530	1
46	518 037 98	Clamp Set	1
47	319 417 99	Screw	2
48	105 794 42	Plug assy.	1
50	100 139 97	Oil level glass	1
51	515 812 98	Coupling	2
55	940 730 40	4/2 way directional spool valve	1
\|$44	797 167 73	Solenoid for fig-no.55	-2
\|$45	796 627 73	Sealkit	-2
56	180 325 40	Base plate	1
57	514 340 98	Screw	4
58	942 484 40	Retainer	1
59	319 132 99	Screw	2
60	308 670 99	Bolt	4
61	308 675 99	Bolt	6
62	500 716 40	Flange	1
63	515 298 98	Washer	12
64		Return oil filter, leak oil	1	991-1225
65	507 025 98	Nut	2
66	511 718 98	Clamp	2
67	511 196 98	Cover plate	2
68	515 553 98	Hose assy. DN 10x700	1
69	516 175 98	Socket	1
70	308 679 99	Bolt	4
71	551 987 40	Union	2
72	371 459 99	Socket	2
73	516 157 98	Socket	2
74	374 436 99	Socket	2
75	324 741 40	Plug	4
76	111 795 42	Guide	1
77	925 177 40	Extension	1
78	345 052 99	Dowel pin	3
79	926 952 40	Strainer	1
80	930 923 40	Plate	1
81	507 037 98	Nut	12
82	340 465 99	Washer	6
83	516 041 98	Hose assy.	1
84	942 441 40	Cap	1
85	520 174 98	Washer	4
86	943 689 40	Cable Cover	1
87	942 485 40	Angle	1
88	517 122 98	Lock washer	8
89	307 777 99	Bolt	2
90	307 779 99	Bolt	1
91	340 465 99	Washer	4
93	970 743 40	Cover	5
94	006 739 98	O-ring	5
97	324 550 40	Plug	1
98	518 546 98	Lock washer	4
99	319 129 99	Screw	4
100	961 832 40	Cover	1
101	510 741 98	Resilient sleeve	1
102	307 789 99	Bolt	1
103	307 777 99	Bolt	1
104	507 596 98	Washer	2
105	0443451210	Clamp Ш12	2
106	0819320010	Clip	1
108	933 852 40	Decal oil level	1
109	509 875 98	Thread pin	4
110	507 596 98	Washer	4
111	340 507 99	Washer	4
112	334 599 99	Nut	4
113	506 734 98	Washer	8
114	304 306 99	Bolt (standard)	4
114	511 747 98	Bolt (Cold weather design)	4
115	302 552 99	Bolt (standard)	4
115	500 982 98	Bolt (Cold weather design)	4
120	631 091 40	Valve block	1
121		Pressure relief valve	1	991-0413b
122	111 799 42	Annular flap	1
123	955 670 40	Socket assy. with rubber grommet	1
125	955 669 40	Socket assy.	1
126	941 791 40	Rubber grommet	1
130	799 975 73	Filter element with o-ring	1

Komatsu PC3000-6 S/N 06377 parts catalog PDF

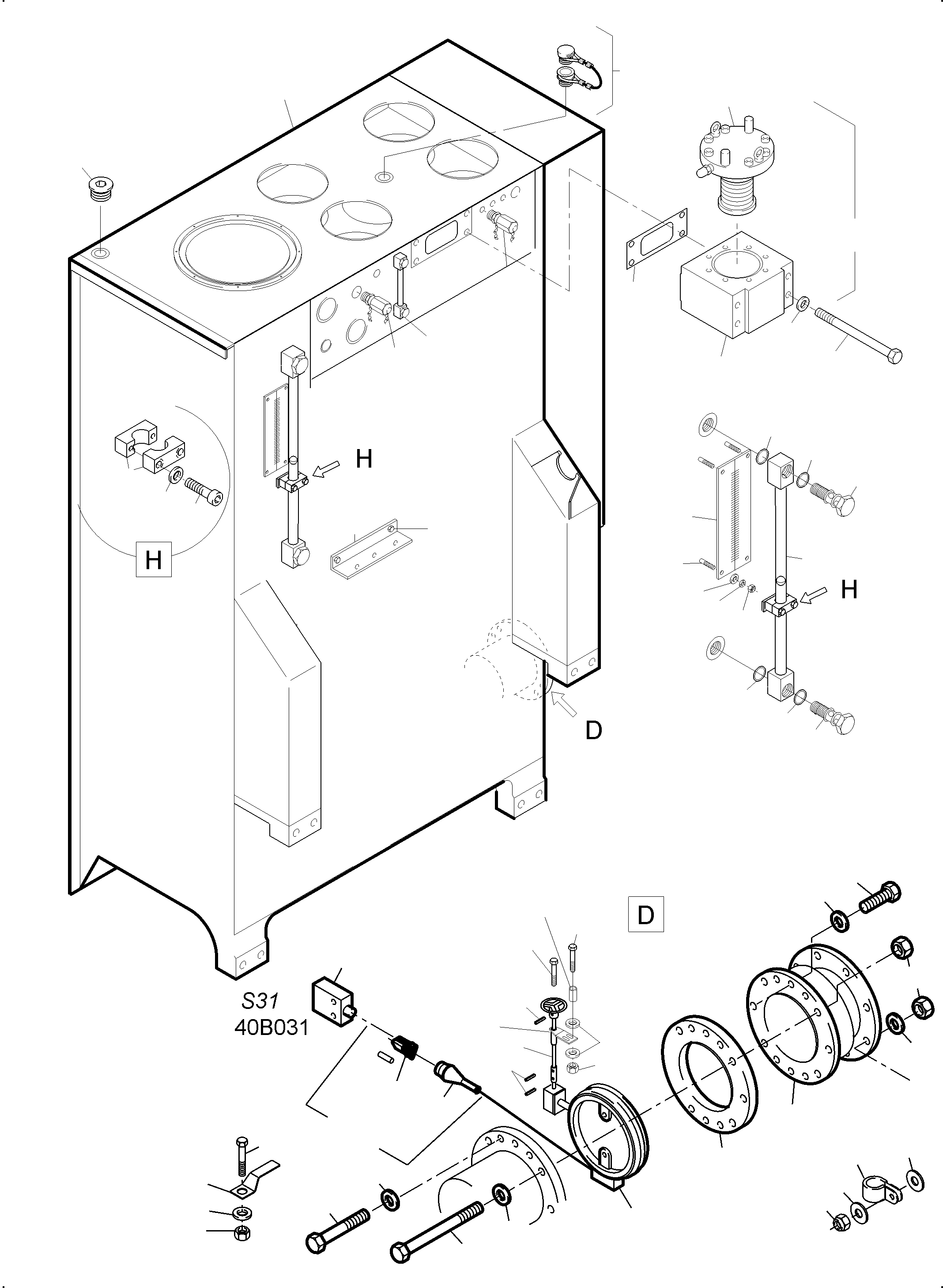

MAIN OIL TANK (485-1801j) in PC3000-6 S/N 06377. Diagram image and parts list.
