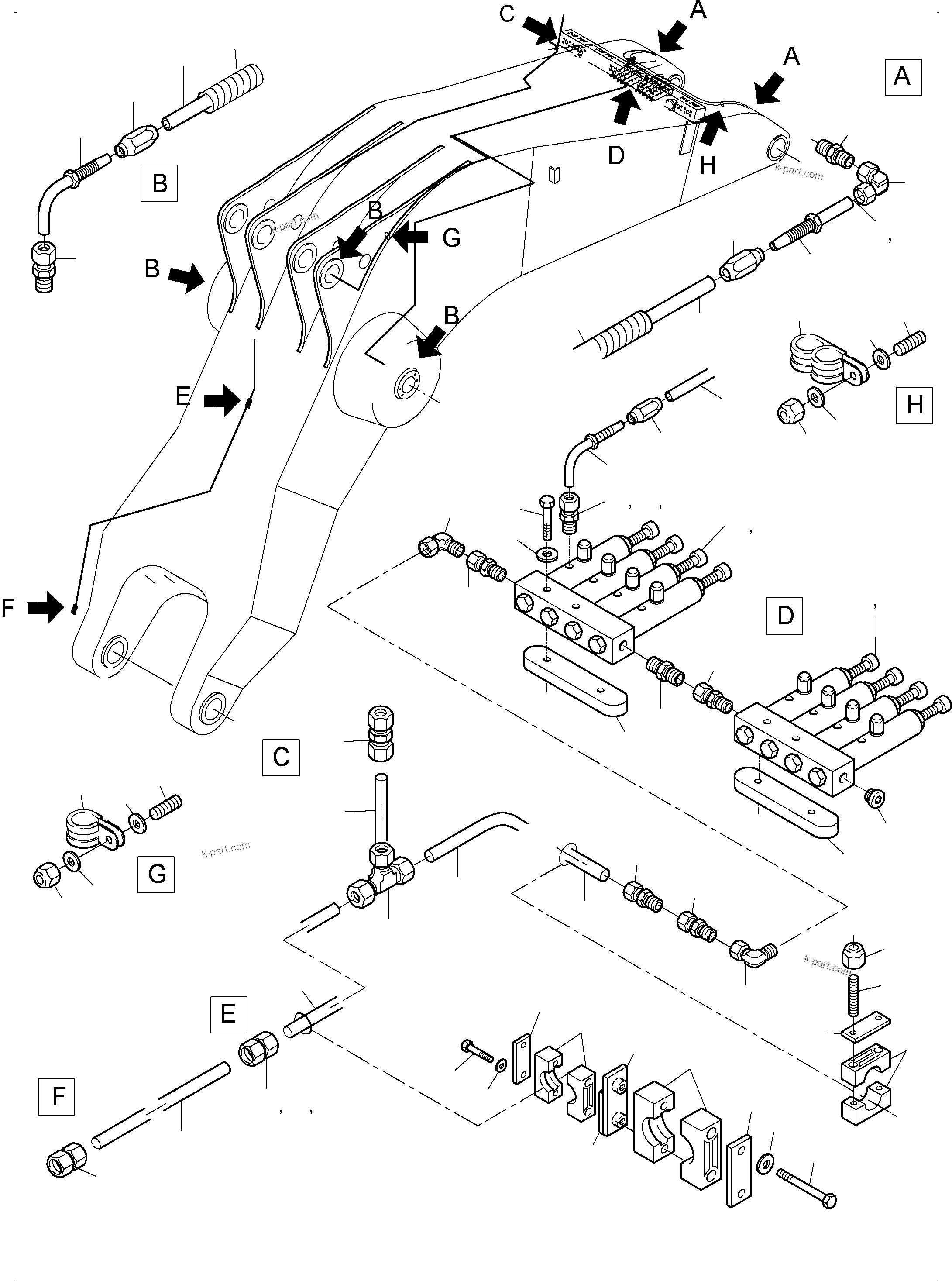

BOOM - CENTRAL LUBRICATION BH - 8.6 M | PC3000-6 S/N 06382

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 06382

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	269 880 40	Valve	2	991-0091
?	654 130 40	Protection cap with o-ring	8
?	936 979 40	Thread plate	2
?	308 555 99	Bolt	4
?	517 121 98	Lock washer	4
?	324 672 40	Plug	1
?	906 981 40	Union	8
?	512 273 98	Socket	2
?	906 984 40	Union	1
?	515 951 98	Union	1
?	516 834 98	Union	1
?	374 443 99	Union	4
?	515 029 40	Hose connection	12
?	576 160 40	Hose NW4	-2
?	655 649 40	Cable protection hose NW10	-2
?	515 027 40	Hose connection	4
?	515 028 40	Collet	16
?	340 111 99	Washer	50
?	340 465 99	Washer	50
?	443 451 210	Clip Ш12	28
?	443 551 210	Clip, double Ш12	30
?	907 854 40	Thread pin	50
?	507 037 98	Nut	50
?	517 292 98	Union	4
?	534 000 99	Clamp set	6
?	534 001 99	Cover plate	6
?	534 002 99	Weld on plate	6
?	308 579 99	Bolt	12
?	509 308 98	Locking plate	6
?	911 862 40	Pipe assy. Ш 25	1
?	911 863 40	Pipe assy. Ш 25	1
?	911 864 40	Pipe assy. Ш 25	1
?	516 741 98	Union	2
?	371 867 99	Breech block	2
?	215 787 99	Pipe assy. Ш25, lengh=140	-2
?	929 431 40	Clamp set	1
?	634 978 40	Cover plate	2
?	512 055 98	Thread pin	2
?	334 600 99	Nut	2
?	907 080 40	Olive	16
?	371 257 99	Union nut	8
?	906 347 40	Olive	3
?	371 259 99	Union nut	3
?	906 868 40	Olive	11
?	371 264 99	Union nut	11
?	371 271 99	Union nut	8
?	374 428 99	Union	8
?	504 445 98	Clamp set	2
?	534 008 99	Cover plate	2
?	534 009 99	Weld on plate	2
?	308 612 99	Bolt	4
?	509 310 98	Locking plate	2
?			-2
?			-2
?			-2
?			-2
?			-2
