#	Part Number	Partname	Quantity
01	104 371 42	Harness	1
02	950 737 40	Head light assy.	2
03	946 033 40	Lamp retainer	2
04	975 510 40	Bracket rotary light assy.	1
05	951 051 40	Rotary light	1
06	307 779 99	Bolt	12
07	518 547 98	Washer	20
08	507 037 98	Nut	20
09	507 596 98	Washer	61
10	0443451210	Clip Ш12	17
15	999 770 40	Plug MALE	2
16	950 189 40	Plug	14
17	950 132 40	Protection cap	10
18	621 698 40	Contact plug 1-2 qmm MALE	43
19	621 699 40	Female contact 1-2 qmm FEMALE	68
20	940 852 40	Plug	173
21	081 921 24 00	Wedge	14
22	950 190 40	Rubber grommet	16
23	907 703 40	Cable union	4
24	896 520 40	End pin	86
25	999 787 40	Fitting	11
26	940 471 40	Fitting	5
27	655 634 40	Tube adaptor	6
29	941 777 40	Plate	53
30	174 411 40	Cable strap	106
35	975 506 40	Retainer bracket rotary light	1
36	975 509 40	Harness bracket rotary light	1
37	0819320010	Clip	9
38	951 048 40	Cable gland	1
39	0443450810	Clip	1
42	950 443 40	Socket	1
43	0819212300	Wedge	1
44	0819105320	Pin contact	107
45	056 070 40	Wire end ferrule 1	43
48	104 250 42	Harness roof frame	1
49	101 855 42	Harness Hydraulic tank	1
50	101 857 42	Harness control plate	1
51	104 272 42	Harness service/light switch	1
52	104 251 42	Harness refuelling plate	1
53	979 206 40	Head light assy.	6
54	979 212 40	Lampretainer Atrium assy.	3
55	944 978 40	Terminal box assy.	1
56	944 780 40	Emergency switch-off assy.	3
57	944 782 40	Service switch assy.	1
58	944 781 40	Light switch assy.	1
59	940 869 40	Socket	1
60	953 039 40	Lamp box assy.	1
61	997 005 40	Plate	1
62	940 628 40	Locking stopple	2
63	944 132 40	Retainer	2
64	979 078 40	Hood plug protection	1
65	949 151 40	Retainer	5
66	992 611 40	Retainer	1
67	990 411 40	Retainer assy.	7
68	949 193 40	Cable retainer	5
69	655 530 40	Strab	11
70	105 903 42	Mounting plate assy.	1
72	0443451910	Clamp Ш19	15
73	0443452711	Clamp Ш27	15
74	0443453211	Clamp Ш32	8
75	2080619170	Clamp Ш40	1
77	081 933 00 10	Clip	11
78	516 143 98	Resilient sleeve	29
79	516 095 98	Clamp set	14
81	534 004 99	Cover plate	7
82	504 135 98	Bolt	4
83	504 789 98	Catch	7
84	504 788 98	Bolt	14
85	980 527 40	Pin	1
87	321 015 99	Bolt	4
88	307 774 99	Bolt	2
90	308 581 99	Bolt	14
91	308 579 99	Bolt	16
93	307 445 99	Bolt	16
94	514 921 98	Nut	86
95	507 025 98	Nut	4
98	517 122 98	Lock washer	124
99	340 506 99	Washer	4
101	307 803 99	Bolt	10
102	517 124 98	Lock washer	10
103	517 118 98	Lock washer	10
104	534 008 99	Cover plate	5
110	999 774 40	Plug MALE	6
111	999 769 40	Socket FEMALE	2
112	999 772 40	Plug FEMALE	2
113	950 944 40	Plug	2
114	950 950 40	Plug	2
115	950 949 40	Plug	3
117	950 951 40	Plug	6
119	950 869 40	Socket	2
120	950 939 40	Socket	1
121	950 938 40	Socket	1
123	56B0611510	Joint connector	4
124	999 782 40	Protection cap	5
127	950 931 40	Protective cover	5
128	950 941 40	Housing plug	3
129	950 940 40	Protective cover	6
130	0819105420	Female contact FEMALE	153
135	999 784 40	Lock washer	5
136	999 806 40	Seal ring 179553	5
137	999 786 40	Nut SIZE24	5
139	0819216400	Wedge	6
140	0819218400	Wedge	3
141	0819219400	Wedge	5
142	932 531 40	Fitting	2
144	940 520 40	Fitting	2
145	940 452 40	Fitting	6
148	999 788 40	Fitting	3
149	940 271 40	Cable union DN 10	2
150	907 623 40	Cable union NW 12	2
153	940 666 40	Pipe adapter DN 23/10	4
156	907 708 40	Cable union	2
157	907 709 40	Cable union PG 16	6
158	940 447 40	Cable union	2
160	056 054 40	Grommet KT 21	4
165	999 762 40	Plug MALE	1
166	999 773 40	Socket FEMALE	2
167	999 761 40	Socket FEMALE	1
169	0819105340	Pin contact MALE	8
171	0819105440	Female contact FEMALE	8
173	0819100770	Plug	16
175	950 945 40	Plug	1
176	950 933 40	Socket	1
177	56B0611540	Socket	1
180	950 937 40	Socket	1
181	950 943 40	Protection housing	1
183	0819219300	Wedge	1
185	907 478 40	Cable union DN 17	4
187	517 327 98	Reducing	1
189	635 042 40	Wire end ferrule 1,5	4
192	950 934 40	Socket	1
193	950 942 40	Protection housing	1
194	081 921 83 00	Wedge	1
196	517 322 98	Cable nut	2
200	951 320 40	Head light	1
202	979 069 40	Retainer	1
205	944 948 40	Housing empty	1
207	519 861 98	Assembly rail GELOCHT	-2
208	950 147 40	Clamp	4
209	940 722 40	Clamp	2
210	950 152 40	Cover plate	1
211	907 707 40	Cable union	1
212	516 078 98	Screw	2
213	896 522 40	Locking bolt	2
216	940 729 40	Emergency switch	1
217	321 010 99	Bolt	20
218	950 726 40	Plug	6
219	950 899 40	Seal	5
222	940 728 40	Switch	1
225	940 726 40	Lighting Switch	1
228	323 430 40	Box, aluminium OHNE MONTAGEPLATTE	1
229	942 119 40	Indicator lamp, red	7
230	903 423 40	Graphical symbol	1
231	255 328 40	Circuit element	1
232	323 677 40	Press button adapter	1
235	358 291 40	Plug	4
240	989 571 40	Hinge assy.	1
241	081 320 40	Hinge	1
242	081 480 40	Hinge Pin	1
\|$$160			-2

Komatsu PC4000-6E S/N 08299 parts catalog PDF

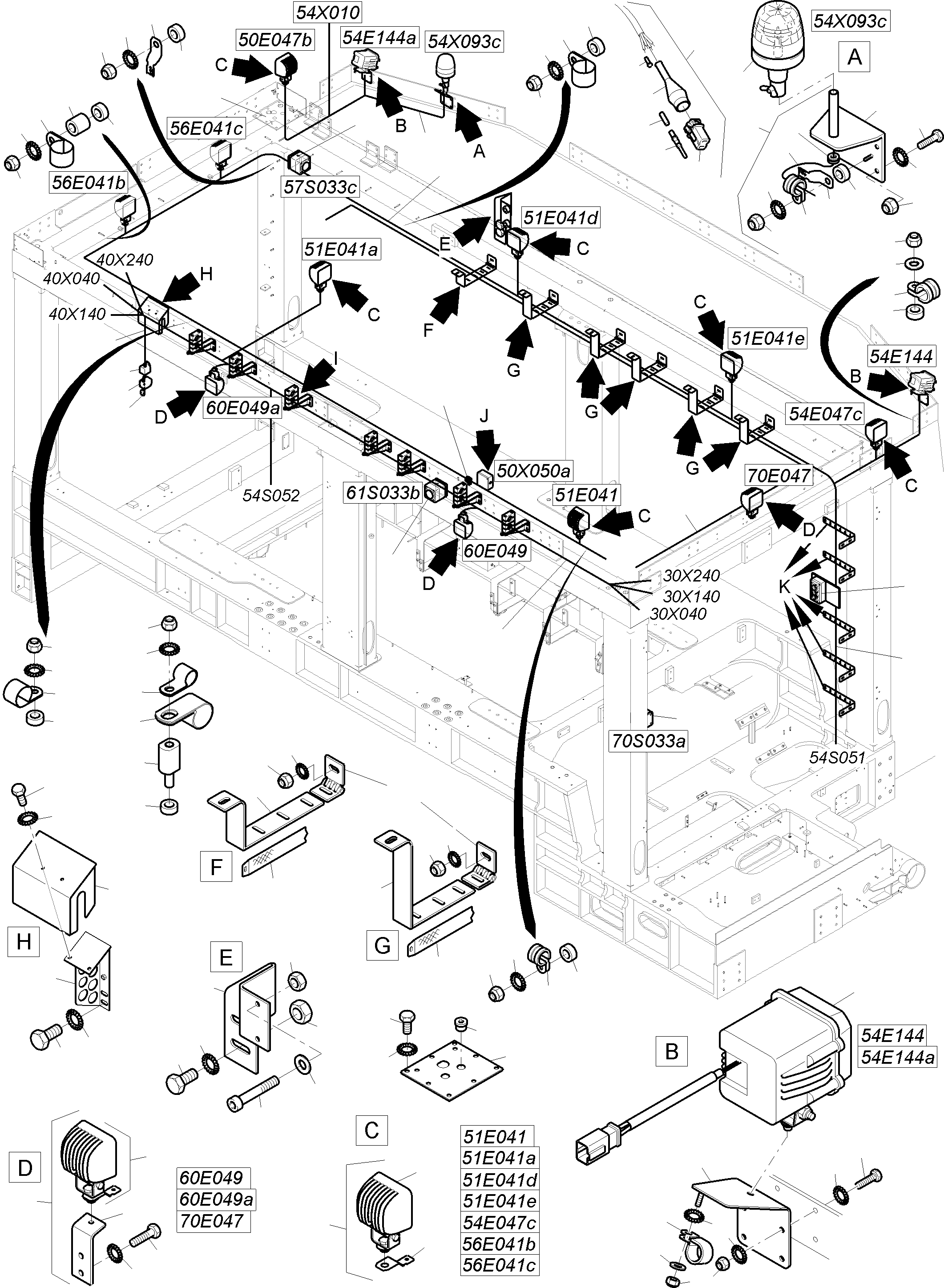

LIGHTING EQUIPMENT ENGINE HOUSE AND COUNTER WEIGHT (357-2205) in PC4000-6E S/N 08299. Diagram image and parts list.
