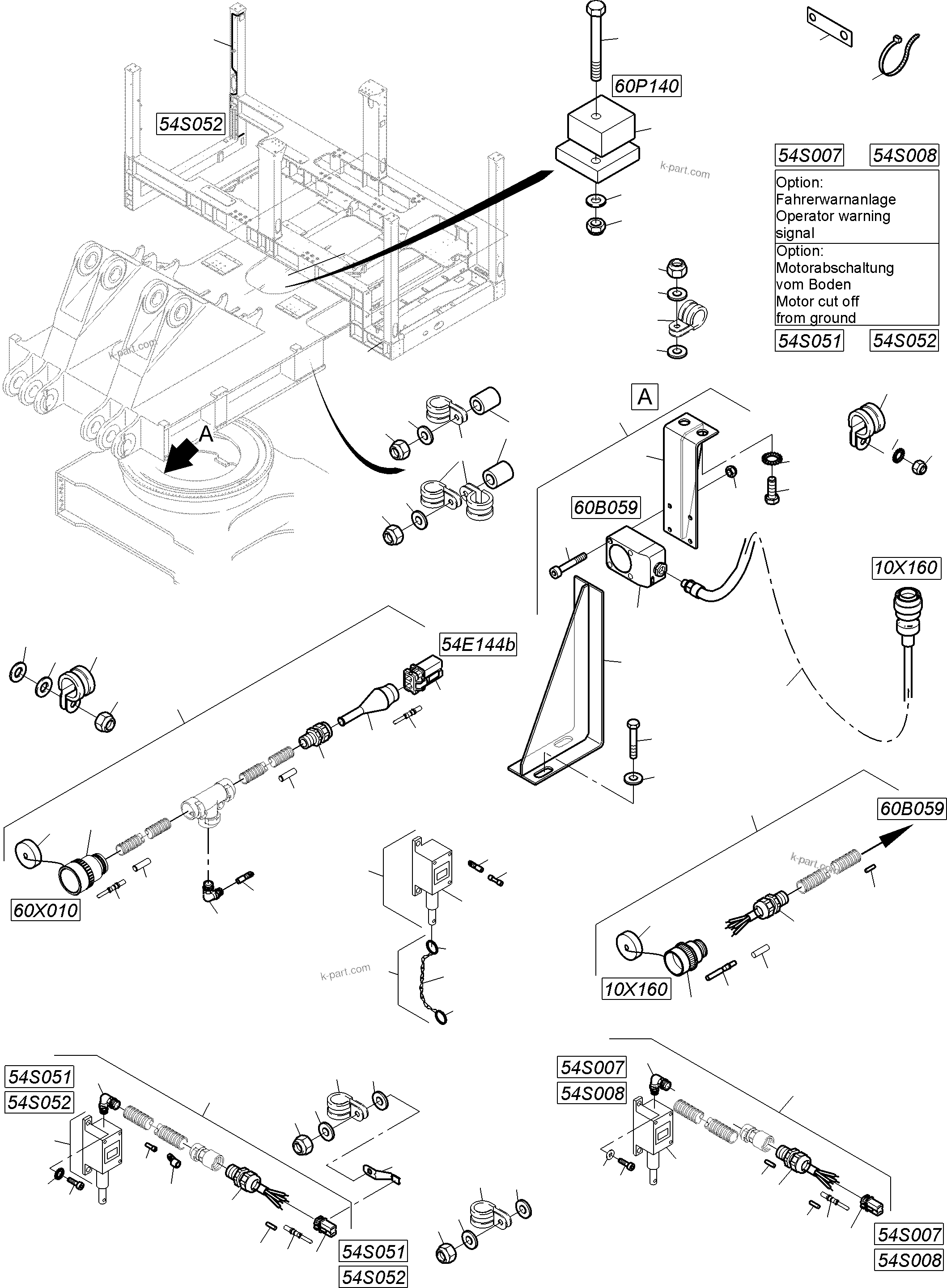

MOVEM. SIGNAL / MOTOR SWITCH-OFF / WARNING SYSTEM ASSY./ ROTATION ANGLE | PC4000-6E S/N 08299

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC4000-6E S/N 08299

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	104 233 42		1
?	104 235 42	Harness Movement signal/Lighting equipment	1
?	896 746 40	Horn	1
?	0443453411	Clamp D=34	3
?	0443451910	Clamp D=19	11
?	0443451510	Clamp D=15	16
?	516 143 98	Spacer	2
?	308 585 99	Bolt	2
?	340 465 99	Washer	20
?	507 596 98	Washer	38
?	507 037 98	Nut	42
?	962 636 40	Harness - engine shut-off device 54S051	1
?	962 637 40	Harness - engine shut-off device 54S052	1
?	985 840 40	Chain assy.	2
?	0819320010	Clip	4
?	044 345 27 10	Clamp D=27	1
?	520 544 98	Washer	24
?	514 340 98	Bolt	8
?	518 560 98	Washer	8
?	0819216000	Socket assy.	4
?	947 400 40	Pull switch	2
?	907 705 40	Cable union	2
?	907 972 40	Union NW 12	5
?	0819100770	Sealing plug	18
?	055 103 40	Cable shoe 3,5-1	8
?	056 070 40	Cable sleeve 1,0-1,5	9
?	941 777 40	Plate	11
?	174 411 40	Cable strap	22
?	0819105320	Contakt pin	17
?	0819216300	Wedge	2
?	941 669 40	Pull switch, without LED	2
?	941 592 40	Light emitting diode, red	2
?	941 765 40	Crimp typ cable socket 0,5-1,5	2
?	055 140 40	Cable joint 0,5-1,0qmm	2
?	962 638 40	Harness - warning system assy. 54S007	1
?	962 639 40	Harness - warning system assy. 54S008	1
?	985 839 40	Chain assy.	2
?	0443451210	Clamp D=12	22
?	0443452110	Clamp D=21,5	1
?	319 171 99	Screw	8
?	520 534 98	Washer	8
?	472 688 99		-2
?	098 955 40		4
?	255 680 40	Pull switch	2
?	907 703 40	Cable union	3
?	896 520 40	End pin	12
?	951 509 40	Cover	2
?	0819216400	Wedge	2
?	104 234 42	Harness rotation angle sensor 10X160 - 60B059	1
?	944 849 40	Retainer	1
?	107 571 42	Bracket	1
?	654 052 40	Switch	1
?	307 800 99	Bolt	2
?	307 775 99	Bolt	2
?	319 127 99	Screw	4
?	507 036 98	Nut	4
?	517 122 98	Lock washer	2
?	518 547 98	Lock washer	10
?	517 118 98	Lock washer	2
?	332 197 99	Nut	10
?	999 770 40	Plug MALE	2
?	950 132 40	Protection cap	2
?	940 852 40	Sealing plug	39
?	940 271 40	Union NW 10	1
?	621 698 40	Contact pin MALE 1-2 qmm	2
?	950 189 40	Plug	1
?	621 699 40	Contact FEMALE 1-2 qmm	2
?	081 921 24 00	Wegde	1
?	950 190 40	Rubber grommet	1
?	940 858 40	Union NW 12	1
?	055 104 40	Cable lug 1,5	2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
