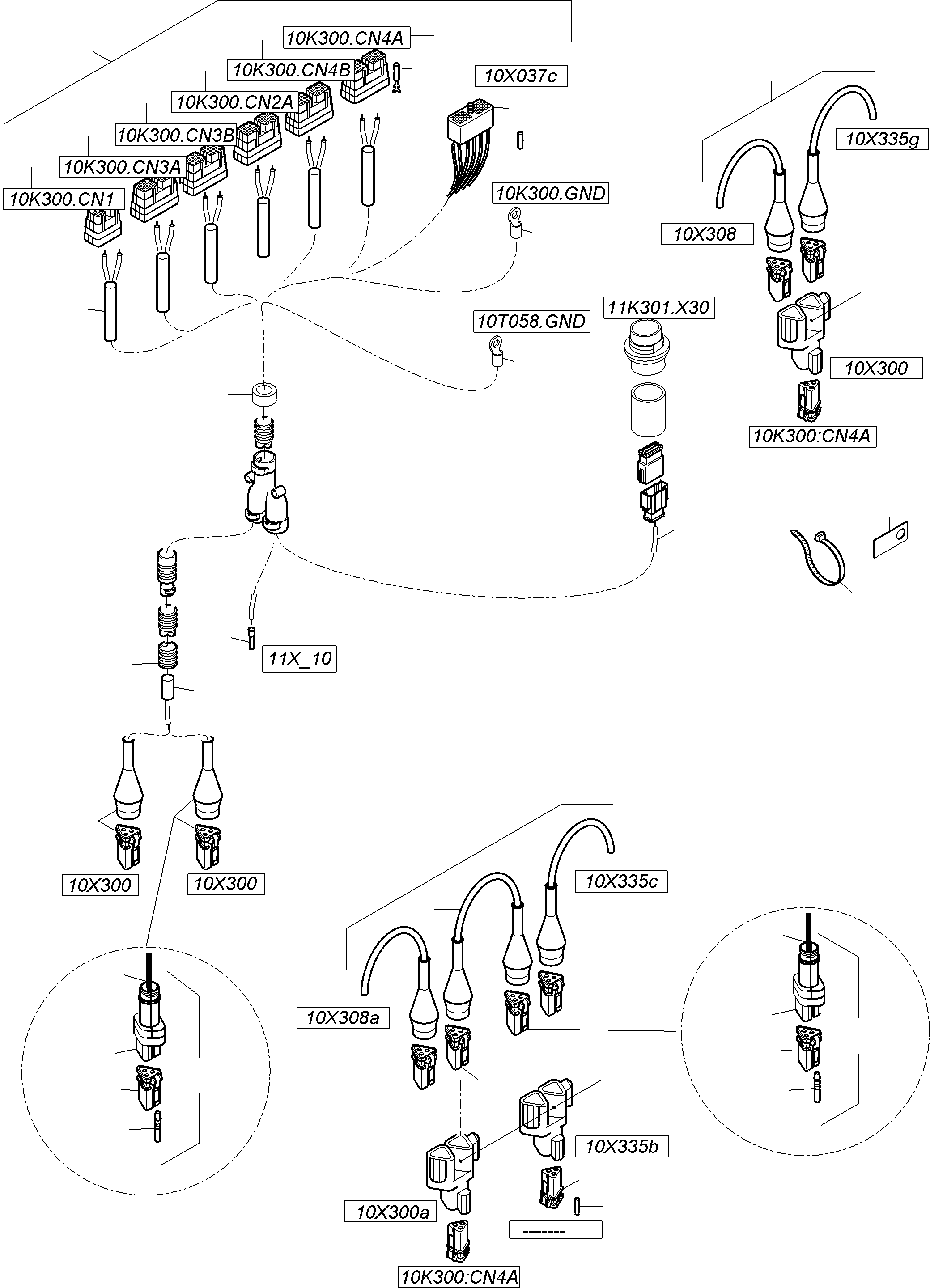

Diagram image 1 of 5

PC5500-6 S/N 15182

02 100 139 156 156 180 180 183 191 191 215 216 225 225 226 226 227 228 228 229 229 230 230 232 40 46 64 70 71 75 76 76 77 79 80 81 83 83 84 85 86 87 87 87 90 91 92 94 95

PC5500-6 S/N 15182

02 100 139 156 156 180 180 183 191 191 215 216 225 225 226 226 227 228 228 229 229 230 230 232 40 46 64 70 71 75 76 76 77 79 80 81 83 83 84 85 86 87 87 87 90 91 92 94 95

PC5500-6 S/N 15182

02 100 139 156 156 180 180 183 191 191 215 216 225 225 226 226 227 228 228 229 229 230 230 232 40 46 64 70 71 75 76 76 77 79 80 81 83 83 84 85 86 87 87 87 90 91 92 94 95

PC5500-6 S/N 15182

02 100 139 156 156 180 180 183 191 191 215 216 225 225 226 226 227 228 228 229 229 230 230 232 40 46 64 70 71 75 76 76 77 79 80 81 83 83 84 85 86 87 87 87 90 91 92 94 95

PC5500-6 S/N 15182

02 100 139 156 156 180 180 183 191 191 215 216 225 225 226 226 227 228 228 229 229 230 230 232 40 46 64 70 71 75 76 76 77 79 80 81 83 83 84 85 86 87 87 87 90 91 92 94 95

#	Part Number	Partname	Quantity
01	952 931 40	Harness ambient temperature 11X_13-12B090	1
02	962 962 40	Harness Komtrax Plus-Controller	1
05	962 963 40	Data connection CAN-BUS 10X305-11X306	1
09	952 932 40	Harness horn 11X_10-10G007	1
13	978 434 40	Supply line Controller / Engine 11X_51-10X051	1
14	978 435 40	Supply line Controller / pump housing 11X_56-10X056	1
15	952 990 40	Harness Control plate 11X_61-10X161	1
16	952 991 40	Harness Control plate 11X_61-10X261	1
17	952 994 40	Harness Control plate 11X_61-10X361	1
18	991 332 40	Harness 10XK20 - 11X_20	1
19	990 621 40	Harness 11X_20-10X220	1
20	991 337 40	Harness 11X_51-10X151	1
21	998 746 40	Harness 11X_20-10X120	1
22	978 432 40	Supply line Contoller / Cabin 11X_20-10X020	1
23	963 384 40	Harness 11X_20-10XC20	1
24	952 995 40	Harness 11X_10-10XB20	1
25	953 030 40	Harness 11X_20-10X820	1
26	953 031 40	Harness 11X_20-10X920	1
27	953 029 40	Harness 11X_20-10X720	1
28	953 034 40	Harness 11X_20-10X620	1
29	953 032 40	Harness 11X_20-10X520	1
30	996 331 40	Supply line Controller / Hydraulictank 11X_40-10X040	1
31	976 647 40	Harness 11X_30/40-10X140	1
35	962 967 40	Harness plug load limitation valve	1
36	953 028 40	Harness 11X_30-10X171	1
37	998 736 40	Harness 11X_56-10X156	1
40	962 968 40	Harness CAN-BUS	1
41	958 926 40	Data connection CAN-BUS 10X335B-10X335C	1
43	998 739 40	Harness 11X_20-10XF20	1
44	998 747 40	Harness 11X_20-10XG20	1
45	958 945 40	Data connection CAN-BUS 11X301-10X307	1
46	956 742 40	Harness CAN-BUS	1
47	962 969 40	Data connection CAN-BUS	1
48	962 970 40	Data connection CAN-BUS	1
49	962 971 40	Data connection CAN-BUS	1
50	996 342 40	Harness 11X_51-10X251	1
51	977 097 40	Harness lightning cab support	1
55	953 098 40	Harness 11X_20-10X320	1
56	954 501 40	Harness 11X_20-10X420	1
57	998 744 40	Harness lightning intermediate landing	1
60	941 880 40	Plug	1
61	940 462 40	Insulating tube B 6x0,6	-2
62	907 703 40	Cable union 4x3	1
63	940 471 40	Fitting M 16 / DN10	3
64	056 070 40	Cable sleeve 1,0-1,5	-2
67	896 520 40	End pin	-2
68	950 207 40	End grommet	-2
70	950 503 40	Shrinkdown tubing	-2
71	951 368 40	Resin strip	-2
72	0819213400	Wedge	1
73	941 791 40	Rubber grommet	1
75	906 634 40	Plug	1
76	906 633 40	Plug	2
77	940 453 40	Plug	1
79	906 631 40	Plug	1
80	906 632 40	Plug	1
81	906 635 40	Contact	-2
83	055 107 40	Cable lug, blue 2,5 M4	2
84	907 865 40	Plug	1
85	0819107610	Female contact	-2
86	0819100710	Plug	-2
87	958 955 40	Bushing assy., protective cover	10
90	940 460 40	Insulating tube B 4x0,5	-2
91	950 209 40	End grommet	-2
92	950 210 40	End grommet	-2
94	950 435 40	Cable CAN-BUS	-2
95	950 419 40	Connection line	-2
98	975 591 40	Bushing assy.	-2
99	907 477 40	Cable union DN 12	1
100	958 956 40	Plug assy., protective cover	8
101	950 208 40	End grommet	-2
105	907 704 40	Cable union 3x3,5	1
106	896 521 40	End pin	1
107	907 640 40	Cable sleeve 2,5-12	-2
108	518 870 98	Cable shoe 6,0-2,5	-2
109	940 461 40	Insulating tube B 5x0,6	-2
115	907 980 40	Fitting DN 23	10
116	950 119 40	Socket	4
117	950 130 40	Protection cap	11
118	941 426 40	Female contact	-2
119	0819105440	Female contact	-2
120	0819105420	Female contact	-2
121	621 699 40	Female contact 1-2 qmm	-2
122	940 852 40	Plug	-2
123	0819150808	Nut	13
124	950 318 40	Lock washer	13
125	950 898 40	Seal ring	13
126	269 078 40	Wire end ferrule 16/28,7	-2
127	056 071 40	Cable sleeve 2,5	-2
128	635 042 40	Wire end ferrule 1,5	-2
129	655 693 40	End grommet	-2
130	950 505 40	Shrinkdown tubing	-2
135	950 125 40	Socket	5
136	950 117 40	Socket	1
137	941 443 40	Plug	-2
138	907 979 40	Fitting DN17	2
139	0819100770	Plug	-2
145	500 090 98	Wire end ferrule 0,75-6	-2
146	940 909 40	Shrinkdown tubing	-2
147	940 913 40	Shrinkdown tubing	-2
150	950 146 40	Socket	10
151	907 975 40	Fitting DN17	12
152	950 129 40	Protection cap	11
153	0819110808	Nut	11
154	0819110809	Lock washer	11
155	950 897 40	Seal ring	11
156	940 914 40	Shrinkdown tubing	-2
160	950 124 40	Socket	2
161	940 910 40	Shrinkdown tubing	-2
162	940 916 40	Shrinkdown tubing	-2
163	055 140 40	Butt connector 0,5 - 1,0 mm2	-2
164	502 615 98	Wire end ferrule	-2
165	907 976 40	Fitting DN23	12
170	950 122 40	Socket	1
171	932 947 40	Plug	1
172	940 468 40	Insulating tube B16x1	-2
173	907 641 40	Wire end ferrule 0,5	-2
174	907 653 40	Shrinkdown tubing	-2
180	906 647 40	T-Splitter	8
183	0819213200	Plug	1
186	950 171 40	Socket	2
187	950 178 40	Body	2
188	950 175 40	Female contact	-2
189	950 179 40	Contact element	-2
190	950 173 40	O-ring	2
191	950 177 40	Protection cap	1
192	940 908 40	Shrinkdown tubing	-2
195	950 140 40	Socket	1
200	966 667 40	Plug assy. with rubber grommet 2 pole	2
201	517 322 98	Nut	1
202	940 271 40	Cable union DN 10	1
205	950 189 40	Plug	1
206	081 921 24 00	Wedge	1
207	950 190 40	Rubber grommet	1
210	952 675 40	Plug assy. with rubber grommet 2 pole	2
212	950 136 40	Plug	1
213	0819105320	Pin contact	-2
214	950 131 40	Protection cap	1
215	174 411 40	Cable strap	-2
216	941 777 40	Plate	-2
225	950 428 40	Protective cover	1
226	950 432 40	Plug	1
227	906 648 40	Wedge	1
228	950 434 40	Female contact	2
229	950 457 40	Shrinkdown tubing	-2
230	906 653 40	Female contact	1
232	906 604 40	Wedge	1
235	940 726 40	Light switch	1
236	321 010 99	Bolt	1
237	950 726 40	Plug	1
238	950 899 40	Seal ring	1
\|$$152			-2
\|$$153			-2
\|$$154			-2
\|$$155			-2
\|$$156			-2
\|$$157			-2
\|$$158			-2

Komatsu PC5500-6 S/N 15182 parts catalog PDF

CABIN SUPPORT AND INTERMEDIATE LANDING HARNESSES (515-2214k) in PC5500-6 S/N 15182. Diagram image and parts list.
