Diagram image 1 of 7

PC5500-6 S/N 15182

01 11 132 133 134 134 55 55 60 61

PC5500-6 S/N 15182

01 11 132 133 134 134 55 55 60 61

PC5500-6 S/N 15182

01 11 132 133 134 134 55 55 60 61

PC5500-6 S/N 15182

01 11 132 133 134 134 55 55 60 61

PC5500-6 S/N 15182

01 11 132 133 134 134 55 55 60 61

PC5500-6 S/N 15182

01 11 132 133 134 134 55 55 60 61

PC5500-6 S/N 15182

01 11 132 133 134 134 55 55 60 61

#	Part Number	Partname	Quantity
01	998 748 40	Switch framing assy.	1
02	999 296 40	Breaker 1 A	1
03	999 298 40	Breaker 6 A	10
04	999 299 40	Breaker 10 A	47
05	999 301 40	Breaker 16 A	3
06	999 300 40	Breaker 13 A	5
07	999 302 40	Breaker 20 A	1
08	999 304 40	Breaker 30 A	1
09	999 307 40	Breaker 50 A	8
10	999 309 40	Breaker 100 A	1
11	951 995 40	Switch framing	1
12	960 613 40	Resistor array assy.	2
13	655 748 40	Diode array	3
14	984 440 40	Plate	1
15	991 815 40	Amplifier	13
19	941 278 40	Socket	1
20	896 716 40	Hour meter	2
21	896 754 40	Switch modul	1
22	951 445 40	Solid-state relais 10 A	1
23	603 346 40	Clamp assy.	1
24	963 818 40	Relais with retainer and bolts 50 A	2
25	999 303 40	Breaker 25 A	1
26	898 680 40	Relay assy.	15
27	951 886 40	Safety cut off	1
28	951 862 40	Semiconductor relay 10A	23
29	990 246 40	Relais with retainer and bolts 75 A	5
30	490 889 40	Series terminal with diode, red	9
31	490 890 40	Series terminal with diode, green	1
32	926 505 40	Series terminal with diode, red	2
33	906 768 40	Through clamp 6 mm2	4
34	906 772 40	Cover plate 6 mm2	3
35	100 031 42	Relais with retainer and bolts 40A	3
36	990 247 40	Relais with retainer and bolts 120 A	1
37	955 333 40	Cross connection (Copper)	1
38	940 640 40	Rail collector end cap	24
39	906 623 40	Marking strip	5
40	950 620 40	Rail collector	-2
41	906 612 40	Through clamp 2.5	255
42	940 673 40	Clamp	63
43	906 613 40	Cover plate	24
44	906 614 40	Bridge 2-fold	33
45	906 615 40	Bridge 3-fold	2
46	906 616 40	Bridge 4-fold	1
47	906 617 40	Bridge 5-fold	1
48	957 090 40	Plate	1
49	511 262 98	Resilient sleeve	4
52	999 978 40	Terminal	84
53	999 979 40	Cover plate	8
54	979 219 40	Cable harness CAN-BUS	1
55	896 747 40	Wiring channel 100	-2
56	941 561 40	Lead cable X13	1
57	906 773 40	Cover plate 16 mm2	7
58	941 502 40	Potencial clamp 1,5 mm2	16
59	941 503 40	Cover plate	1
60	501 670 98	Screw	40
61	145 743 40	Washer	40
62	999 405 40	Distribution block	1
63	941 787 40	Terminal	4
64	906 624 40	Marker	3
65	906 625 40	Marker	2
66	906 626 40	Marker	2
67	906 627 40	Marker	1
68	906 628 40	Marker	1
69	906 629 40	Marker	3
70	906 687 40	Marker	1
71	906 688 40	Marker	1
72	963 800 40	Terminal cover	1
73	950 607 40	Cap nut M10	4
74	515 314 40	Dust cap	1
75	963 147 40	Plug assy. 11K305	1
76	654 439 40	Time-lag relay	1
77	906 769 40	Through clamp 16 mm2	7
78	950 185 40	Protective wire clip	46
79	941 434 40	Lead cable X21	1
80	950 435 40	Cable CAN-BUS	-2
81	941 724 40	Lead cable X17	1
82	941 430 40	Modul 11K302	1
83	941 431 40	Contoller housing adjust acc. to elec. Schematic	1
84	941 432 40	Contoller housing adjust acc. to elec. Schematic	1
85	941 819 40	Lead cable X11	1
86	941 412 40	Plug connector	9
87	950 466 40	Cross connection 15 pol.	3
88	999 980 40	Cross connection	13
89	350 762 99	Washer	12
90	940 675 40	Sleeve with srew	26
91	320 972 99	Bolt	4
92	894 577 40	Socket assy.	1
93	891 034 40	Dust cap assy.	1
94	963 145 40	Plug assy. 11K303	1
95	963 146 40	Plug assy. 11K304	1
96	356 281 40	Marking strips 01-10	1
97	356 282 40	Marking strips 11-20	1
98	356 283 40	Marking strips 21-30	1
99	356 284 40	Marking strips 31-40	1
101	356 286 40	Marking strips 51-60	1
102	356 287 40	Marking strips 61-70	1
103	356 288 40	71-80	1
104	356 289 40	Marking strips 81-90	1
105	518 546 98	Lock washer	6
106	518 314 98	Lock washer	19
107	307 661 99	Bolt	4
110	307 737 99	Bolt	4
111	501 382 98	Thread pin	12
112	507 025 98	Nut	28
113	520 539 98	Washer	12
114	514 070 98	Bolt	2
116	950 662 40	Cable lug	4
117	999 870 40	Cable lug	10
118	941 354 40	Cable shoe	6
119	635 603 40	Plug	6
128	950 880 40	Special rubber core cable	-2
129	519 773 98	Tubular end sleeve	9
130	999 872 40	Cable lug	9
131	999 133 40	Bridge 10 A	-2
132	940 609 40	Makrolon plate	-2
133	940 610 40	Makrolon plate	-2
134	940 061 40	Rivet	58
135	951 888 40	Separate plate	3
136	941 685 40	Group plate	12
137	951 895 40	Safety cut off	2
138	951 284 40	Relay	5
139	951 916 40	Relay	8
140	100 224 97	DC/DC Convert	1
141	999 312 40	Breaker 6 A	1
145	906 611 40	Mounting part	1
146	604 733 40	Resistor 820 OHM / 2 W	15
150	576 212 40	Clamp	1
151	604 734 40	Resistor 30,1 kOhm	1
152	604 809 40	Resistor 10 kOhm	1
155	323 179 40	Relay 50A	1
156	344 498 40	Supporting trestle	19
157	318 983 99	Bolt	19
159	520 535 98	Washer	4
165	940 020 40	Relay	52
166	592 338 40	Socket	52
167	414 369 40	Spring retainer	52
170	999 818 40	Relay 75A	1
171	520 533 98	Washer	12
172	346 508 99	Sprin ring	12
176	907 984 40	Resistor 1,0 kOhm	1
180	978 193 40	Relay socket assy.	1
181	999 740 40	Relay	1
186	519 164 98	Wire end ferrule 6,3-6	2
187	519 163 98	Wire end ferrule 6,3-1	2
190	951 361 40	Relay socket	1
191	951 362 40	Fixing yoke	1
195	999 819 40	Relay 120A	1
200	957 091 40	Plate	1
201	0443450810	Clamp D=8,0	5
202	0819320010	Clip	7
203	307 775 99	Bolt	5
204	507 037 98	Nut	10
205	518 547 98	Lock washer	10
206	507 596 98	Washer	10
207	307 779 99	Bolt	5
210	906 647 40		5
211	979 255 40	11X301-11X302	1
212	979 256 40	11X302-11X303	1
213	979 257 40	11X303-11X304	1
214	979 258 40	11X304-11X305	1
218	958 956 40	CAN plug branch 3-Pol	1
219	958 955 40	CAN plug trunk 3-Pol	4
221	941 777 40	Designationssign	-2
222	174 411 40	Cable strap	-2
225	950 428 40	Backshell plug	2
226	950 432 40	Body plug	2
227	906 604 40	Wedgelook	1
228	950 434 40	Socket contact	4
231	906 653 40	Socket contact	2
235	906 648 40	Wedgelook	1
240	951 036 40	ICN-V modulcable 3,5m	1
245	907 642 40	Fitting bushing	1
246	907 643 40	Dust cap	1
250	655 685 40	Dust protection cap	1
251	551 867 40	Locking clamp	2
255	942 152 40	Modul 11K301	1
258	950 419 40	Lead cable X30	1
260			-1
260	951 231 40	Swing rate sensor	1
261	978 192 40	Connection cable	1
265	321 015 99	Bolt	2
270			-1
270	323 590 40	Switch modul EGT 2	2
\|$$184			-2
\|$$185			-2
\|$$186			-2
\|$$187			-2
\|$$188			-2

Komatsu PC5500-6 S/N 15182 parts catalog PDF

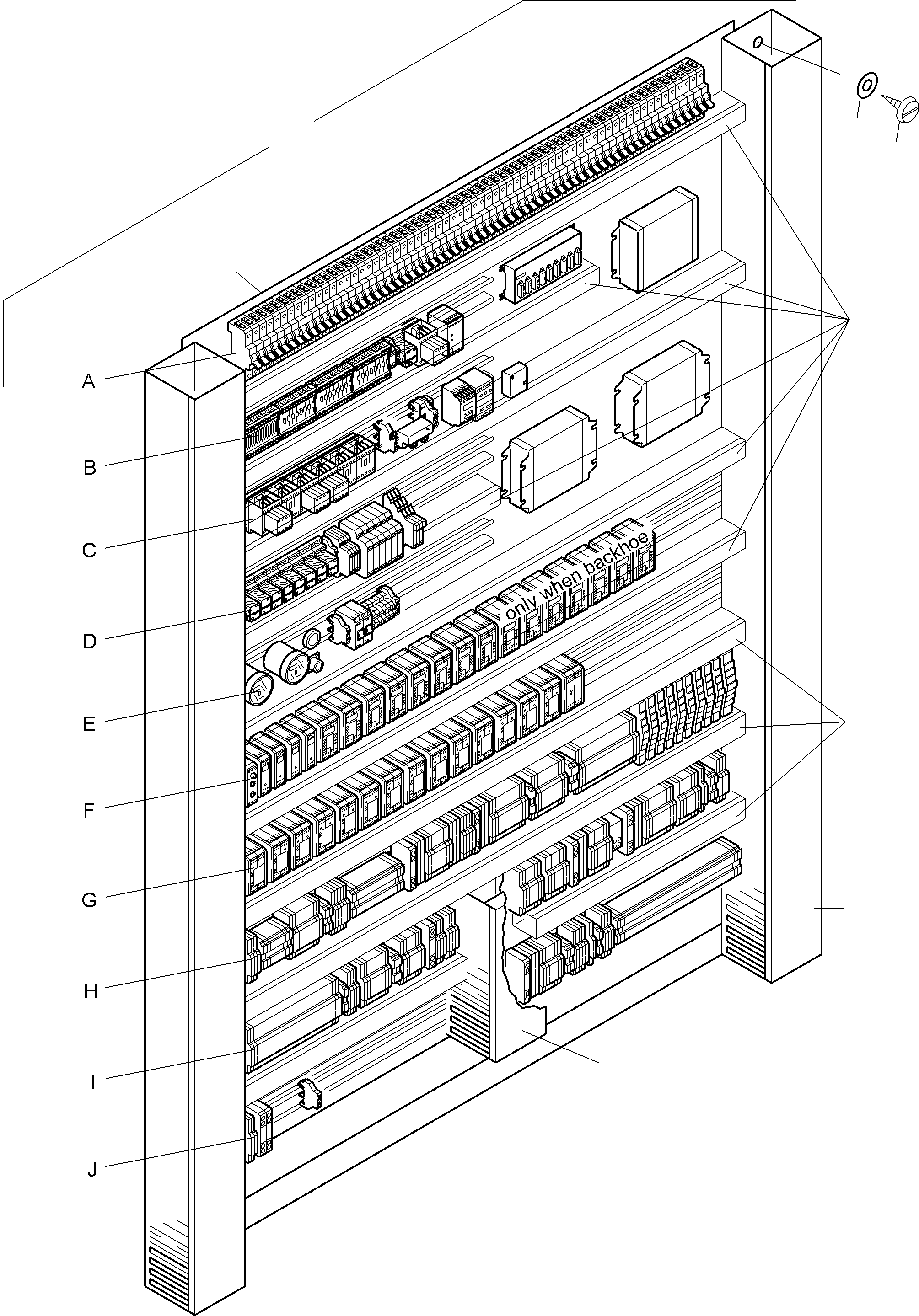

SWITCH FRAMING LOCATION 11 (515-2218m) in PC5500-6 S/N 15182. Diagram image and parts list.
