PC4000-11 S/N 08312

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?	99295440	DRIVERS SEAT ASSY.	1	vendorcode: KOMATSU \| visiblepartno: 99295440
?	99295540	CO-DRIVERS SEAT ASSY.	1	vendorcode: KOMATSU \| visiblepartno: 99295540
?	81402373	PIN	2	vendorcode: KOMATSU \| visiblepartno: 81402373
?	81324473	CONSOLE	2	vendorcode: KOMATSU \| visiblepartno: 81324473
?	79932273	COVER PLATE	2	vendorcode: KOMATSU \| visiblepartno: 79932273
?	79932373	COVER PLATE	2	vendorcode: KOMATSU \| visiblepartno: 79932373
?	79932473	COVER PLATE	2	vendorcode: KOMATSU \| visiblepartno: 79932473
?	79932573	CORRUGATED TUBE	2	vendorcode: KOMATSU \| visiblepartno: 79932573
?	79932673	COVER PLATE	2	vendorcode: KOMATSU \| visiblepartno: 79932673
?	30740699	BOLT	16	vendorcode: KOMATSU \| visiblepartno: 30740699
?		BOLT	1
?	51870498	BOLT	8	vendorcode: KOMATSU \| visiblepartno: 51870498
?	50987098	NUT	10	vendorcode: KOMATSU \| visiblepartno: 50987098
?	34046399	WASHER	18	vendorcode: KOMATSU \| visiblepartno: 34046399
?	51032198	WASHER	19	vendorcode: KOMATSU \| visiblepartno: 51032198
?	443451610	CLAMP	1	vendorcode: KOMATSU \| visiblepartno: 443451610
?		DRIVERS SEAT	1	assembly: 991-1397 \| assemblytitle: OPERATOR'S SEAT	991-1397
?	77203173	NUT	4	vendorcode: KOMATSU \| visiblepartno: 77203173
?	77207673	CAP	4	vendorcode: KOMATSU \| visiblepartno: 77207673
?	81402473	WASHER	4	vendorcode: KOMATSU \| visiblepartno: 81402473
?	81402573	SPACER	4	vendorcode: KOMATSU \| visiblepartno: 81402573
?	81402673	PIN	2	vendorcode: KOMATSU \| visiblepartno: 81402673
?	76819373	SCREW	4	vendorcode: KOMATSU \| visiblepartno: 76819373
?	95132640	UNION	4	vendorcode: KOMATSU \| visiblepartno: 95132640
?	95132740	NUT	2	vendorcode: KOMATSU \| visiblepartno: 95132740
?		BLIND RIVET-NUT	1
?		CO-DRIVERS SEAT	-19	assembly: 991-0907 \| assemblytitle: CO-DRIVER SEAT	991-0907
?	81305573	BELT	1	vendorcode: KOMATSU \| visiblepartno: 81305573
?	30742999	BOLT	4	vendorcode: KOMATSU \| visiblepartno: 30742999
?	34386999	SPRING WASHER	4	vendorcode: KOMATSU \| visiblepartno: 34386999
?		BLIND RIVET-NUT	2
?	79957273	COVER	1	vendorcode: KOMATSU \| visiblepartno: 79957273
?	51421798	BOLT	27	vendorcode: KOMATSU \| visiblepartno: 51421798
?	77008173	NUT	5	vendorcode: KOMATSU \| visiblepartno: 77008173
?	79093073	FLAP	1	vendorcode: KOMATSU \| visiblepartno: 79093073
?		HINGE	2
?	51087598	NUT	8	vendorcode: KOMATSU \| visiblepartno: 51087598
?	51880198	BOLT	8	vendorcode: KOMATSU \| visiblepartno: 51880198
?		LOCK WITH LOCK WASHER	1
?		BLIND RIVET	2
?	51829498	WASHER	8	vendorcode: KOMATSU \| visiblepartno: 51829498
?		BULK WARE, STATE LENGTH REQUIRED	-1	docwarecomment: *

Komatsu PC4000-11 S/N 08312 parts catalog PDF

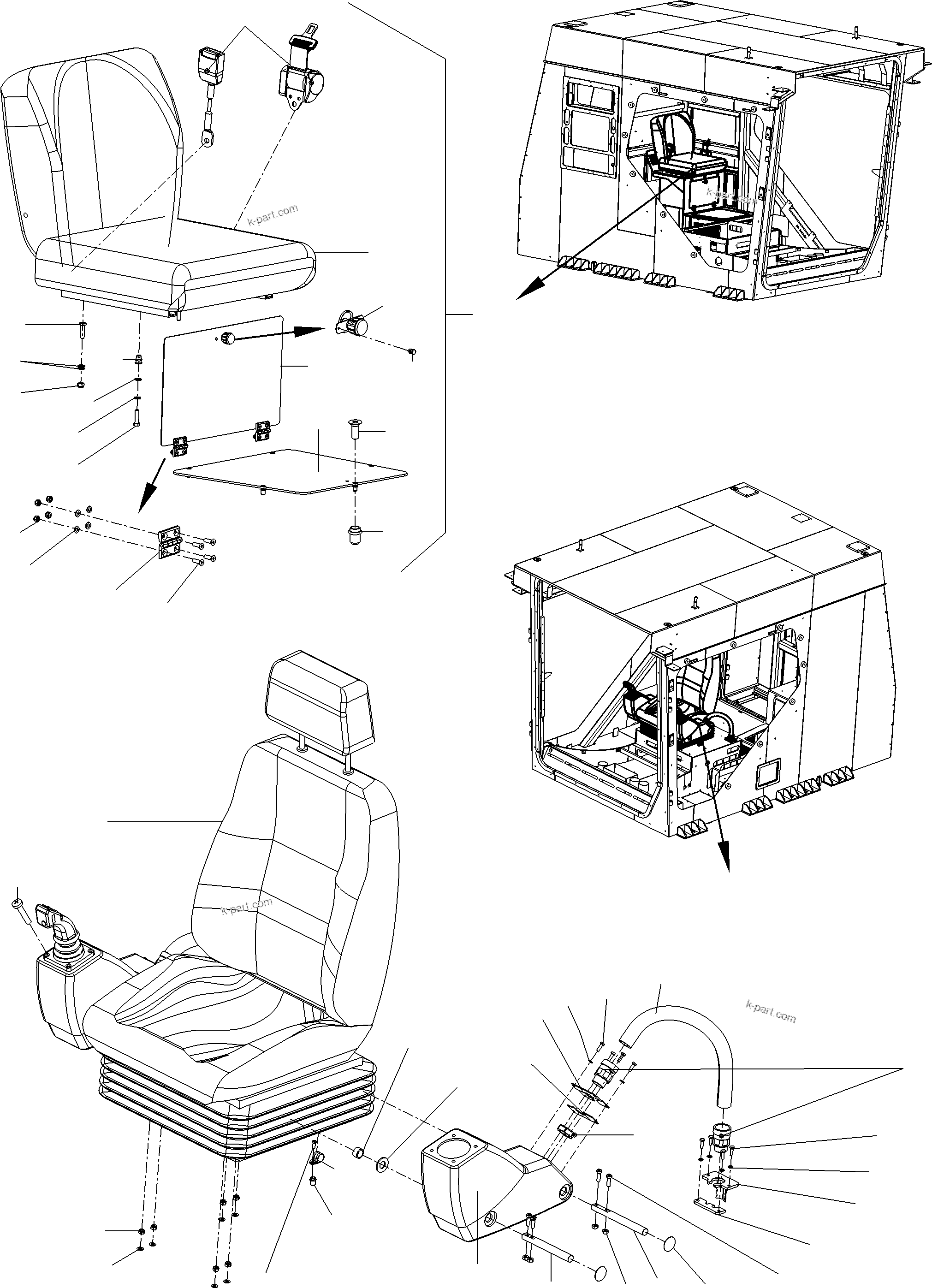

DRIVERS SEAT / CO-DRIVERS SEAT ARR. (991-1725) in PC4000-11 S/N 08312. Diagram image and parts list.
