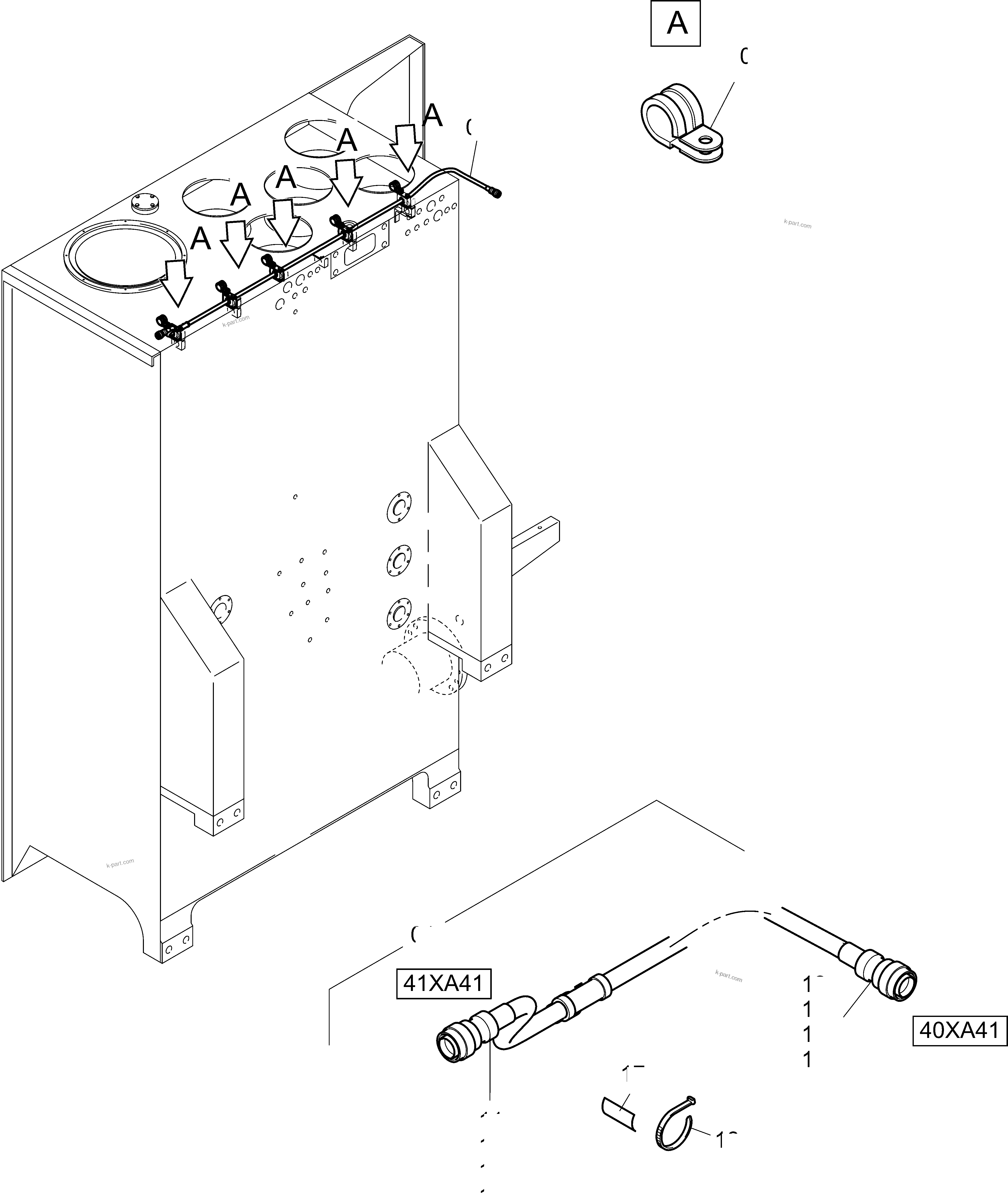

Diagram image 1 of 2

PC4000-11 S/N 08312

? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-11 S/N 08312

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	10436542	WIRING HARNESS 41XA41-40XA41	1	docwarecomment: ** \| vendorcode: KOMATSU \| visiblepartno: 10436542
?	443451910	CLIP Г? 19,0	6	vendorcode: KOMATSU \| visiblepartno: 443451910
?	99977240	PLUG	1	vendorcode: KOMATSU \| visiblepartno: 99977240
?	99977440	PLUG	1	vendorcode: KOMATSU \| visiblepartno: 99977440
?	95013240	PROTECTION CAP	2	vendorcode: KOMATSU \| visiblepartno: 95013240
?	819105420	SOCKET CONTACT	6	vendorcode: KOMATSU \| visiblepartno: 819105420
?	819105320	PIN CONTACT	6	vendorcode: KOMATSU \| visiblepartno: 819105320
?	94085240	PLUG	85	vendorcode: KOMATSU \| visiblepartno: 94085240
?	94177740	SIGN	4	vendorcode: KOMATSU \| visiblepartno: 94177740
?	17441140	CABLE STRAP	8	vendorcode: KOMATSU \| visiblepartno: 17441140
?	10436642	WIRING HARNESS 41XA41-41P502	1	docwarecomment: ** \| vendorcode: KOMATSU \| visiblepartno: 10436642
?	99027840	CAMERA	1	vendorcode: KOMATSU \| visiblepartno: 99027840
?	98912640	THREADED PLATE	1	vendorcode: KOMATSU \| visiblepartno: 98912640
?	819320010	CLIP	1	vendorcode: KOMATSU \| visiblepartno: 819320010
?	443451510	CLIP	1	vendorcode: KOMATSU \| visiblepartno: 443451510
?	51712298	LOCK WASHER	3	vendorcode: KOMATSU \| visiblepartno: 51712298
?	33219799	NUT	3	vendorcode: KOMATSU \| visiblepartno: 33219799
?	50759698	WASHER	3	vendorcode: KOMATSU \| visiblepartno: 50759698
?	30777599	BOLT	4	vendorcode: KOMATSU \| visiblepartno: 30777599
?	52054498	WASHER	4	vendorcode: KOMATSU \| visiblepartno: 52054498
?	94189240	PLUG	1	vendorcode: KOMATSU \| visiblepartno: 94189240
?	99977140	SOCKET	1	vendorcode: KOMATSU \| visiblepartno: 99977140
?	99978240	PROTECTION CAP	1	vendorcode: KOMATSU \| visiblepartno: 99978240
?	819214400	WEDGE	1	vendorcode: KOMATSU \| visiblepartno: 819214400
?	94179140	GROMMET	1	vendorcode: KOMATSU \| visiblepartno: 94179140
?	90770340	CABLE UNION	1	vendorcode: KOMATSU \| visiblepartno: 90770340
?	89652040	PLUG	1	vendorcode: KOMATSU \| visiblepartno: 89652040
?	98921740	RETAINER	1	vendorcode: KOMATSU \| visiblepartno: 98921740
?	98912540	RETAINER	1	vendorcode: KOMATSU \| visiblepartno: 98912540
?	98912340	HOUSING	1	vendorcode: KOMATSU \| visiblepartno: 98912340
?	7835801001	CAMERA	1	vendorcode: KOMATSU \| visiblepartno: 7835801001
?	803701008	GROMMET	1	vendorcode: KOMATSU \| visiblepartno: 803701008
?	803703614	EYE	1	vendorcode: KOMATSU \| visiblepartno: 803703614
?	51854698	LOCK WASHER	11	vendorcode: KOMATSU \| visiblepartno: 51854698
?	30772899	BOLT	3	vendorcode: KOMATSU \| visiblepartno: 30772899
?	30773099	BOLT	4	vendorcode: KOMATSU \| visiblepartno: 30773099
?	50702598	NUT	4	vendorcode: KOMATSU \| visiblepartno: 50702598
?	51854798	LOCK WASHER	4	vendorcode: KOMATSU \| visiblepartno: 51854798
?	30777999	BOLT	2	vendorcode: KOMATSU \| visiblepartno: 30777999
?	50703798	NUT	2	vendorcode: KOMATSU \| visiblepartno: 50703798
?		BULK WARE, STATE LENGTH REQUIRED	-1	docwarecomment: *
?		ORDER OF HARNESSES ONLY BY PROVIDING OF THE SERIAL	-1	docwarecomment: **

Komatsu PC4000-11 S/N 08312 parts catalog PDF

KOMVISION CAMERASYSTEM OIL TANK, OIL COOLER (360-1974A) in PC4000-11 S/N 08312. Diagram image and parts list.
