PC4000-11 S/N 08312

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		HEATER ASSEMBLY	1	assembly: 991-1299 \| assemblytitle: CAB HEATER ARR.	991-1299
?	99959140	COUPLING	2	vendorcode: KOMATSU \| visiblepartno: 99959140
?	20889340	PLUG	2	vendorcode: KOMATSU \| visiblepartno: 20889340
?	51856198	UNION	1	vendorcode: KOMATSU \| visiblepartno: 51856198
?	51616598	SOCKET	1	vendorcode: KOMATSU \| visiblepartno: 51616598
?	51871898	HOSE ASSY. DN 16x1920	1	vendorcode: KOMATSU \| visiblepartno: 51871898
?	51871998	HOSE ASSY. DN 16x5150	1	vendorcode: KOMATSU \| visiblepartno: 51871998
?	99049540	RETAINER	1	vendorcode: KOMATSU \| visiblepartno: 99049540
?	51712098	LOCK WASHER	42	vendorcode: KOMATSU \| visiblepartno: 51712098
?	51712298	LOCK WASHER	24	vendorcode: KOMATSU \| visiblepartno: 51712298
?	50703798	NUT	12	vendorcode: KOMATSU \| visiblepartno: 50703798
?	94186840	CLAMP PAIR	24	vendorcode: KOMATSU \| visiblepartno: 94186840
?	51185698	COVER PLATE	21	vendorcode: KOMATSU \| visiblepartno: 51185698
?	30853699	BOLT	42	vendorcode: KOMATSU \| visiblepartno: 30853699
?	99959040	COUPLING SOCKET	2	vendorcode: KOMATSU \| visiblepartno: 99959040
?	51909598	HOSE ASSY. DN 16x5050	1	vendorcode: KOMATSU \| visiblepartno: 51909598
?	8149640	PROTECTION CAP	2	vendorcode: KOMATSU \| visiblepartno: 8149640
?	51909698	HOSE ASSY. DN 16x5150	1	vendorcode: KOMATSU \| visiblepartno: 51909698
?	51996098	HOSE ASSY. DN 16x570	2	vendorcode: KOMATSU \| visiblepartno: 51996098
?	51348198	HOSE ASSY. DN 16x2550	2	vendorcode: KOMATSU \| visiblepartno: 51348198
?	51185698	COVER PLATE	10	vendorcode: KOMATSU \| visiblepartno: 51185698
?	51615998	SOCKET	2	vendorcode: KOMATSU \| visiblepartno: 51615998
?	51854698	LOCK WASHER	40	vendorcode: KOMATSU \| visiblepartno: 51854698
?	98982240	COVER	1	vendorcode: KOMATSU \| visiblepartno: 98982240
?	93548440	SEAL	2	vendorcode: KOMATSU \| visiblepartno: 93548440
?	33459999	NUT	30	vendorcode: KOMATSU \| visiblepartno: 33459999
?	34046499	WASHER	30	vendorcode: KOMATSU \| visiblepartno: 34046499
?	98982040	COVER	1	vendorcode: KOMATSU \| visiblepartno: 98982040
?	90675840	GASKET	1	vendorcode: KOMATSU \| visiblepartno: 90675840
?	90710440	CLAMP	6	vendorcode: KOMATSU \| visiblepartno: 90710440
?	90676040	CLAMP	3	vendorcode: KOMATSU \| visiblepartno: 90676040
?	37236699	UNION	2	vendorcode: KOMATSU \| visiblepartno: 37236699
?		BULK WARE, STATE LENGTH REQUIRED	-1	docwarecomment: *

Komatsu PC4000-11 S/N 08312 parts catalog PDF

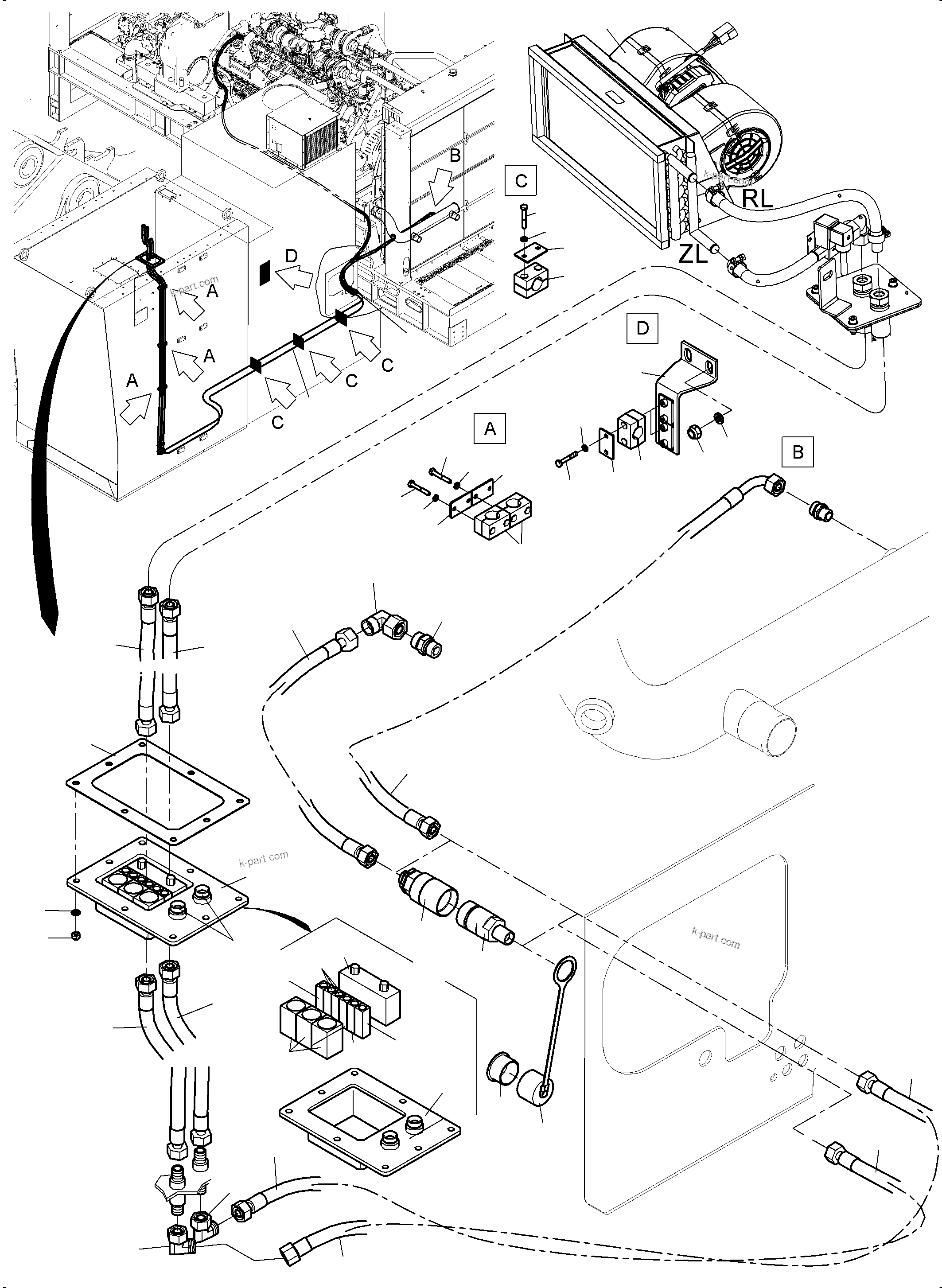

CAB HEATER ARR. (359-2030B) in PC4000-11 S/N 08312. Diagram image and parts list.
