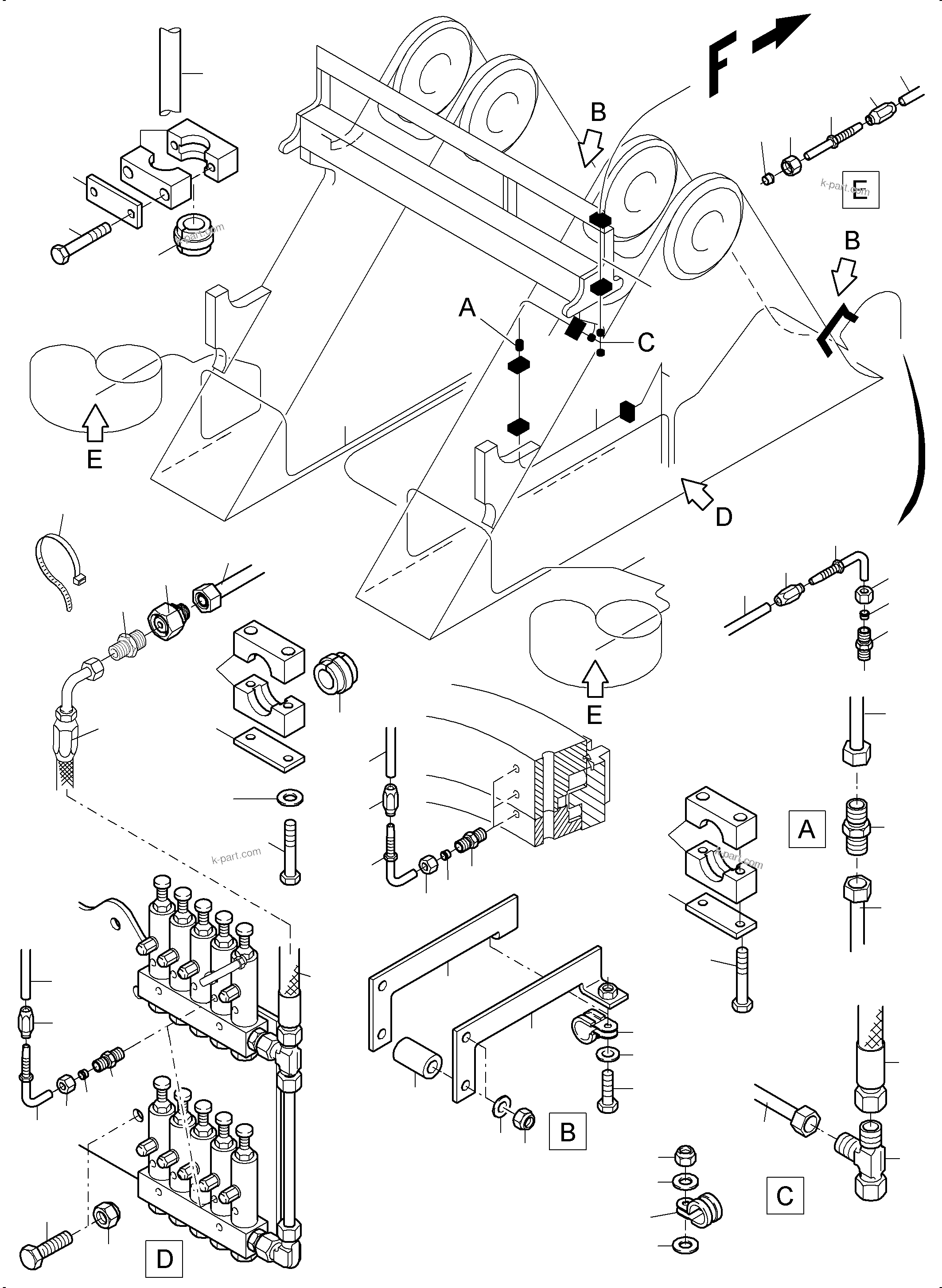

Diagram image 1 of 2

PC4000-11 S/N 08312

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-11 S/N 08312

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?	98046340	MOUNTING PLATE	1	vendorcode: KOMATSU \| visiblepartno: 98046340
?		METERING VALVE ASSY.	6	assembly: 991-0091 \| assemblytitle: METERING VALVE	991-0091
?	65413040	PROTECTION CAP	30	vendorcode: KOMATSU \| visiblepartno: 65413040
?	21542499	PIPE Г? 12	-1	docwarecomment: * \| vendorcode: KOMATSU \| visiblepartno: 21542499
?	30855699	BOLT	12	vendorcode: KOMATSU \| visiblepartno: 30855699
?	33459999	NUT	12	vendorcode: KOMATSU \| visiblepartno: 33459999
?	90698440	UNION	10	vendorcode: KOMATSU \| visiblepartno: 90698440
?	51674198	SOCKET	1	vendorcode: KOMATSU \| visiblepartno: 51674198
?	51683998	UNION	1	vendorcode: KOMATSU \| visiblepartno: 51683998
?	32467240	PLUG	2	vendorcode: KOMATSU \| visiblepartno: 32467240
?	37125999	NUT	10	vendorcode: KOMATSU \| visiblepartno: 37125999
?	90634740	OLIVE	10	vendorcode: KOMATSU \| visiblepartno: 90634740
?	36094040	CONNECTING TUBE	2	vendorcode: KOMATSU \| visiblepartno: 36094040
?	52017998	HOSE ASSY. DN 10x450	1	vendorcode: KOMATSU \| visiblepartno: 52017998
?	30780499	BOLT	4	vendorcode: KOMATSU \| visiblepartno: 30780499
?	33460099	NUT	4	vendorcode: KOMATSU \| visiblepartno: 33460099
?	90698140	UNION	28	vendorcode: KOMATSU \| visiblepartno: 90698140
?	37442899	UNION	26	vendorcode: KOMATSU \| visiblepartno: 37442899
?	443451210	CLIP Г? 12	38	vendorcode: KOMATSU \| visiblepartno: 443451210
?	50759698	WASHER	36	vendorcode: KOMATSU \| visiblepartno: 50759698
?	51683498	UNION	1	vendorcode: KOMATSU \| visiblepartno: 51683498
?	51801998	HOSE ASSY. DN 20x5170	1	vendorcode: KOMATSU \| visiblepartno: 51801998
?	51502940	SOCKET	58	vendorcode: KOMATSU \| visiblepartno: 51502940
?	51502840	SLEEVE	58	vendorcode: KOMATSU \| visiblepartno: 51502840
?	57616040	CABLE PROTECTION HOSE	70	vendorcode: KOMATSU \| visiblepartno: 57616040
?	99385340	PIPE	1	vendorcode: KOMATSU \| visiblepartno: 99385340
?	50261898	CLAMP PAIR	2	vendorcode: KOMATSU \| visiblepartno: 50261898
?	53400099	HALF CLAMP	4	vendorcode: KOMATSU \| visiblepartno: 53400099
?	53400199	COVER PLATE	4	vendorcode: KOMATSU \| visiblepartno: 53400199
?	30857999	BOLT	8	vendorcode: KOMATSU \| visiblepartno: 30857999
?	50703798	NUT	43	vendorcode: KOMATSU \| visiblepartno: 50703798
?	50237198	CLAMP HALF	1	vendorcode: KOMATSU \| visiblepartno: 50237198
?	53400899	COVER PLATE	1	vendorcode: KOMATSU \| visiblepartno: 53400899
?	51205398	GROMMET	1	vendorcode: KOMATSU \| visiblepartno: 51205398
?	30861399	BOLT	2	vendorcode: KOMATSU \| visiblepartno: 30861399
?	51502740	SOCKET	3	vendorcode: KOMATSU \| visiblepartno: 51502740
?	99385240	PIPE	1	vendorcode: KOMATSU \| visiblepartno: 99385240
?	37444399	UNION	1	vendorcode: KOMATSU \| visiblepartno: 37444399
?	50492698	GROMMET	2	vendorcode: KOMATSU \| visiblepartno: 50492698
?	63447940	UNION	1	vendorcode: KOMATSU \| visiblepartno: 63447940
?	62184840	UNION	1	vendorcode: KOMATSU \| visiblepartno: 62184840
?	53400499	COVER PLATE	2	vendorcode: KOMATSU \| visiblepartno: 53400499
?	30858199	BOLT	4	vendorcode: KOMATSU \| visiblepartno: 30858199
?	90708040	OLIVE	58	vendorcode: KOMATSU \| visiblepartno: 90708040
?	37127199	NUT	28	vendorcode: KOMATSU \| visiblepartno: 37127199
?	93062340	RETAINER L.H	1	vendorcode: KOMATSU \| visiblepartno: 93062340
?	93062640	RETAINER R.H	1	vendorcode: KOMATSU \| visiblepartno: 93062640
?	51074198	ANTI-FATIGUE SLEEVE	4	vendorcode: KOMATSU \| visiblepartno: 51074198
?	34046599	WASHER	41	vendorcode: KOMATSU \| visiblepartno: 34046599
?	30777799	BOLT	3	vendorcode: KOMATSU \| visiblepartno: 30777799
?	51712298	LOCK WASHER	2	vendorcode: KOMATSU \| visiblepartno: 51712298
?	37125799	NUT	28	vendorcode: KOMATSU \| visiblepartno: 37125799
?	17042740	CABLE STRAP	16	vendorcode: KOMATSU \| visiblepartno: 17042740
?	443452110	CLIP	1	vendorcode: KOMATSU \| visiblepartno: 443452110
?	443551210	CLIP	1	vendorcode: KOMATSU \| visiblepartno: 443551210
?	51820098	LOCK WASHER	2	vendorcode: KOMATSU \| visiblepartno: 51820098
?		BULK WARE, STATE LENGTH REQUIRED	-1	docwarecomment: *
?			-1

Komatsu PC4000-11 S/N 08312 parts catalog PDF

LUBE DISTRIBUTOR SLEW RING (359-2320B) in PC4000-11 S/N 08312. Diagram image and parts list.
