PC4000-11 S/N 08312

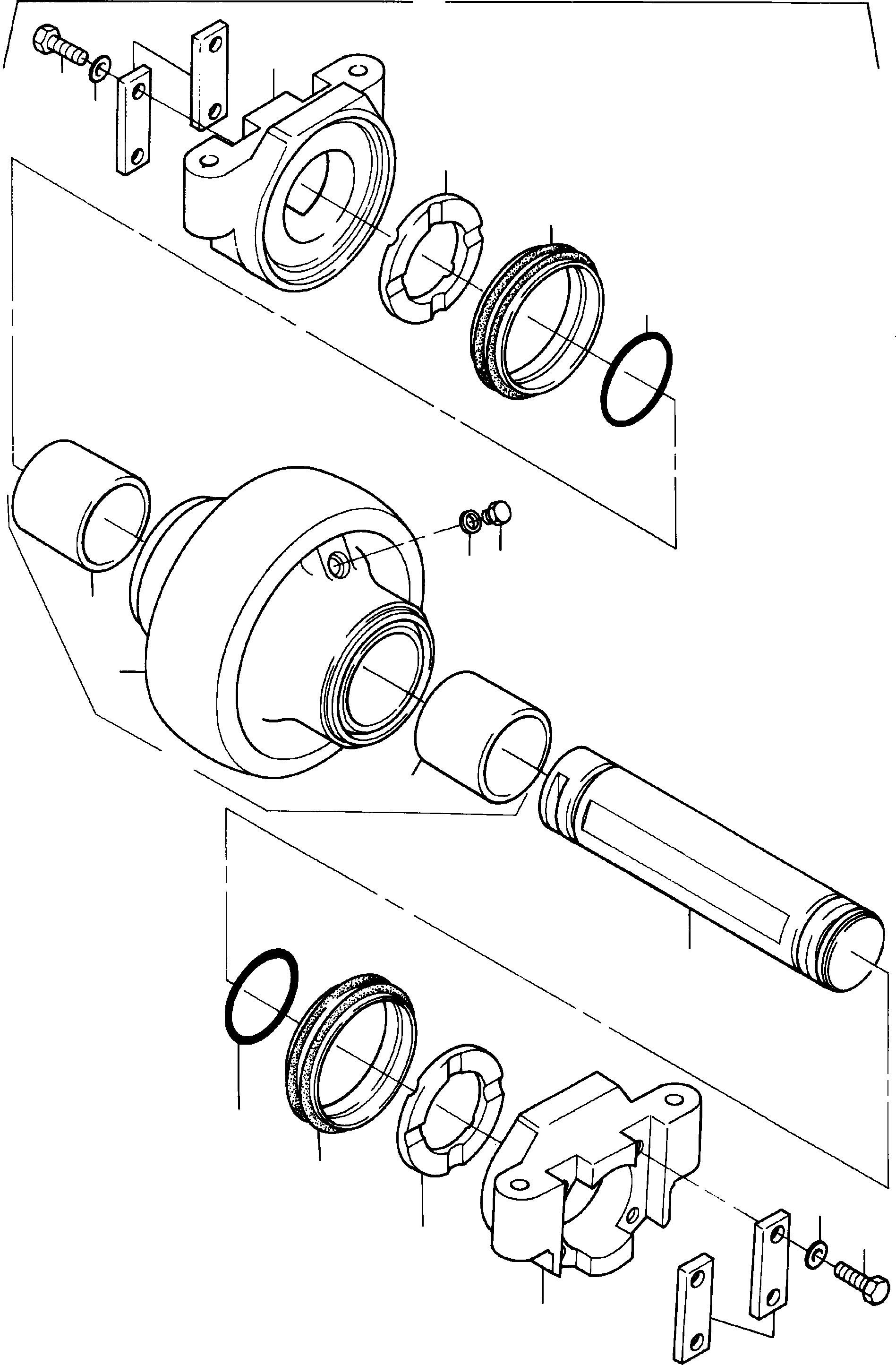

Komatsu parts book diagram for PC4000-11 S/N 08312: BOTTOM ROLLER

01 02 02 03 03 04 04 05 05 06 06 07 07 08 08 09 10 11 12 13 14 14

	#	Part Number	Partname	Quantity	Options	Reference
	01	97077140	BOTTOM ROLLER, ASSY.	1	vendorcode: KOMATSU \| visiblepartno: 97077140
	02	30761299	BOLT	8	vendorcode: KOMATSU \| visiblepartno: 30761299
	03	31621199	WASHER	8	vendorcode: KOMATSU \| visiblepartno: 31621199
	04	36102740	AXLE STIRRUP	4	vendorcode: KOMATSU \| visiblepartno: 36102740
	05	92253640	ROLLER BEARING	2	vendorcode: KOMATSU \| visiblepartno: 92253640
	06	97068840	STOP WASHER	2	vendorcode: KOMATSU \| visiblepartno: 97068840
	07	26945440	LIFETIME SEAL	2	vendorcode: KOMATSU \| visiblepartno: 26945440
	08	50435198	O-RING	2	vendorcode: KOMATSU \| visiblepartno: 50435198
	09	33991899	SEALING RING	1	vendorcode: KOMATSU \| visiblepartno: 33991899
	10	31329699	PLUG	1	vendorcode: KOMATSU \| visiblepartno: 31329699
	11	36102440	AXLE	1	vendorcode: KOMATSU \| visiblepartno: 36102440
	12	89590340	BOTTOM ROLLER BODY WITH BUSH	1	vendorcode: KOMATSU \| visiblepartno: 89590340
	13	89590240	BOTTOM ROLLER BODY	1	vendorcode: KOMATSU \| visiblepartno: 89590240
	14	97058340	FREEZE-IN BUSH	2	vendorcode: KOMATSU \| visiblepartno: 97058340
	\|$14	69456600	SEAL KIT FIG-NOS: 07,08,12 AND 13	-1	vendorcode: KOMATSU \| visiblepartno: 69456600
	\|$15		BOTTOM ROLLER IS FILLED WITH OIL	-1

Komatsu PC4000-11 S/N 08312 parts catalog PDF

BOTTOM ROLLER (355-3135C) in PC4000-11 S/N 08312. Diagram image and parts list.
