PC4000-11 S/N 08312

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	93696940	RAIL	1	vendorcode: KOMATSU \| visiblepartno: 93696940
?	93765840	STAIR RAIL SECTION	1	vendorcode: KOMATSU \| visiblepartno: 93765840
?	93697540	RAIL	1	vendorcode: KOMATSU \| visiblepartno: 93697540
?	93803940	STAIR RAIL SECTION	1	vendorcode: KOMATSU \| visiblepartno: 93803940
?	93804140	RETAINER	1	vendorcode: KOMATSU \| visiblepartno: 93804140
?	96997940	RETAINER	6	vendorcode: KOMATSU \| visiblepartno: 96997940
?	93803840	RETAINER	1	vendorcode: KOMATSU \| visiblepartno: 93803840
?	93804440	PLATE	1	vendorcode: KOMATSU \| visiblepartno: 93804440
?	93698540	COVER PLATE	6	vendorcode: KOMATSU \| visiblepartno: 93698540
?	30777599	BOLT	24	vendorcode: KOMATSU \| visiblepartno: 30777599
?	34306599	LOCK WASHER	24	vendorcode: KOMATSU \| visiblepartno: 34306599
?	53400999	WELDING PLATE	8	vendorcode: KOMATSU \| visiblepartno: 53400999
?	50444598	HALF CLAMP	8	vendorcode: KOMATSU \| visiblepartno: 50444598
?	51906698	BOLT	16	vendorcode: KOMATSU \| visiblepartno: 51906698
?	33235399	NUT	16	vendorcode: KOMATSU \| visiblepartno: 33235399
?	50470998	HALF CLAMP	9	vendorcode: KOMATSU \| visiblepartno: 50470998
?	53400499	COVER PLATE	9	vendorcode: KOMATSU \| visiblepartno: 53400499
?	30858299	BOLT	6	vendorcode: KOMATSU \| visiblepartno: 30858299
?	50930998	LOCKING PLATE	3	vendorcode: KOMATSU \| visiblepartno: 50930998
?	53400599	WELDING PLATE	1	vendorcode: KOMATSU \| visiblepartno: 53400599
?	89654140	PLUG	8	vendorcode: KOMATSU \| visiblepartno: 89654140
?	30779299	BOLT	16	vendorcode: KOMATSU \| visiblepartno: 30779299
?	33211499	NUT	16	vendorcode: KOMATSU \| visiblepartno: 33211499
?	51712298	LOCK WASHER	16	vendorcode: KOMATSU \| visiblepartno: 51712298
?	51711898	WASHER	16	vendorcode: KOMATSU \| visiblepartno: 51711898
?	96491240	HEAVE POINT ASSY.	3	vendorcode: KOMATSU \| visiblepartno: 96491240
?	96332340	WELD ON PLATE	6	vendorcode: KOMATSU \| visiblepartno: 96332340
?	96491340	COVER PLATE	3	vendorcode: KOMATSU \| visiblepartno: 96491340
?	50039998	WELDING PLATE	3	vendorcode: KOMATSU \| visiblepartno: 50039998
?	50481498	CLAMP SET	3	vendorcode: KOMATSU \| visiblepartno: 50481498
?	95049840	EYE BOLT	3	vendorcode: KOMATSU \| visiblepartno: 95049840
?	30842199	BOLT	6	vendorcode: KOMATSU \| visiblepartno: 30842199
?	33235599	NUT	6	vendorcode: KOMATSU \| visiblepartno: 33235599
?	51712398	LOCK WASHER	12	vendorcode: KOMATSU \| visiblepartno: 51712398

Komatsu PC4000-11 S/N 08312 parts catalog PDF

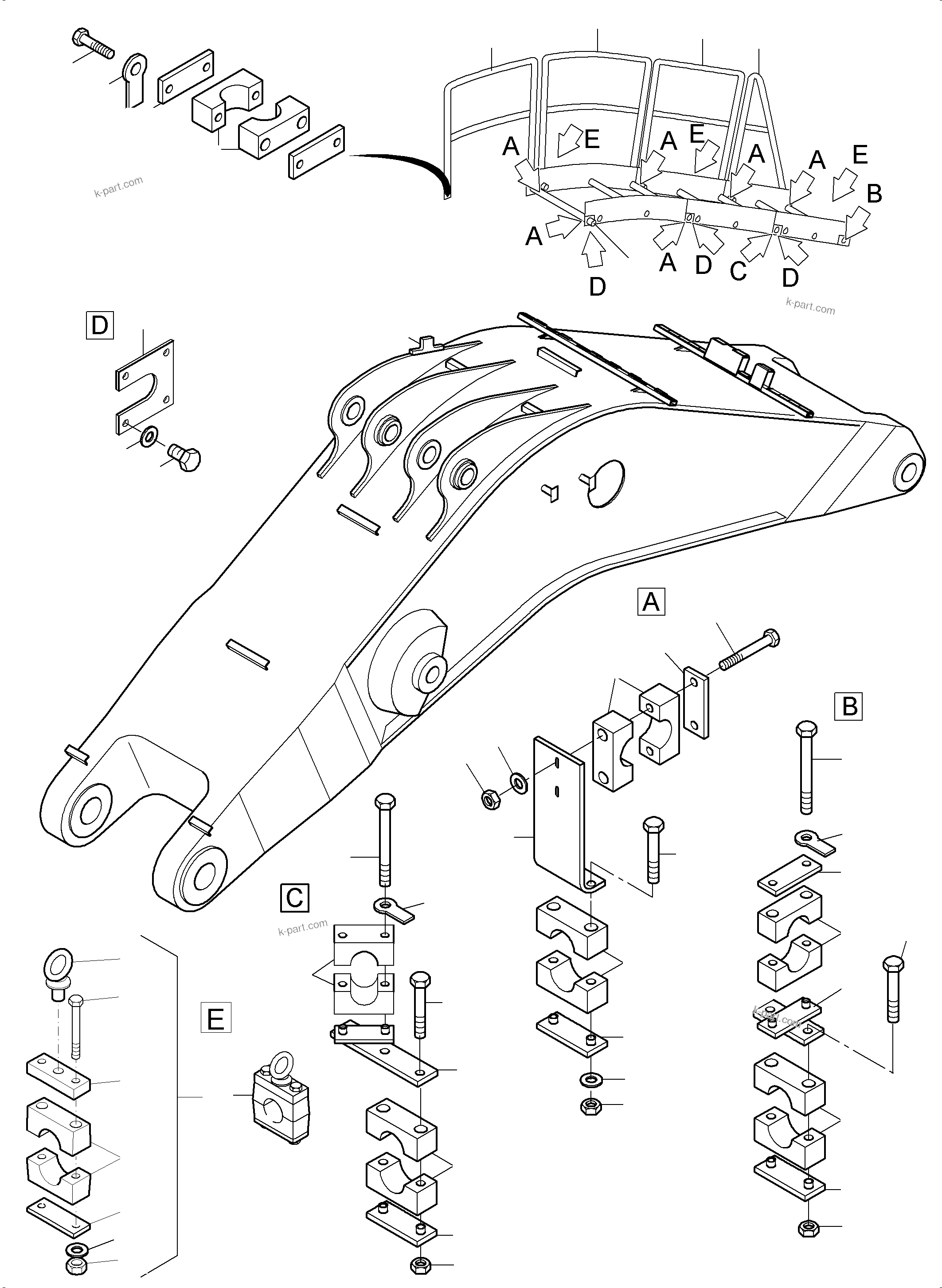

LADDER - BACKHOE BOOM 9,75 M (355-4030D) in PC4000-11 S/N 08312. Diagram image and parts list.
