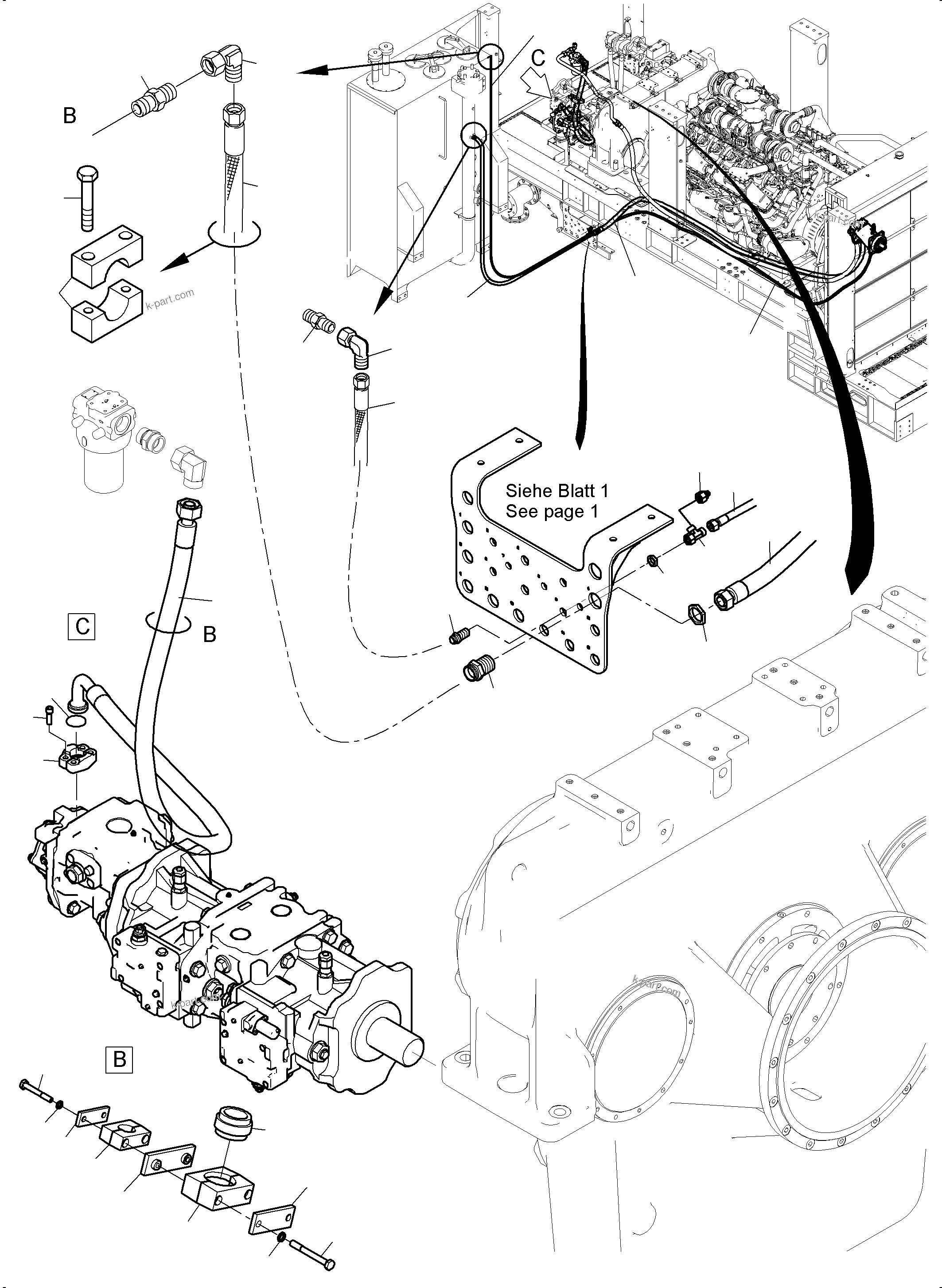

Diagram image 1 of 2

PC4000-11 S/N 08312

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-11 S/N 08312

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	93623940	DISTRIBUTION BLOCK	1	vendorcode: KOMATSU \| visiblepartno: 93623940
?	93624040	DISTRIBUTION BLOCK	1	vendorcode: KOMATSU \| visiblepartno: 93624040
?	51945298	SEAL RING	2	vendorcode: KOMATSU \| visiblepartno: 51945298
?	90692640	UNION	2	vendorcode: KOMATSU \| visiblepartno: 90692640
?	95615440	PIPE	2	vendorcode: KOMATSU \| visiblepartno: 95615440
?	90692740	VALVE	1	vendorcode: KOMATSU \| visiblepartno: 90692740
?	90635140	OLIVE	4	vendorcode: KOMATSU \| visiblepartno: 90635140
?	37126099	NUT	4	vendorcode: KOMATSU \| visiblepartno: 37126099
?	50127698	BOLT	8	vendorcode: KOMATSU \| visiblepartno: 50127698
?	51877898	HOSE ASSY. DN 32x2445	1	vendorcode: KOMATSU \| visiblepartno: 51877898
?	51885198	HOSE ASSY. DN 32x5000	1	vendorcode: KOMATSU \| visiblepartno: 51885198
?	00663898	HALF FLANGE	2	vendorcode: KOMATSU \| visiblepartno: 00663898
?	50637198	CLAMP PAIR	1	vendorcode: KOMATSU \| visiblepartno: 50637198
?	97055240	HOLDING DEVICE F 1-CONDUCTOR	1	vendorcode: KOMATSU \| visiblepartno: 97055240
?	53400499	COVER PLATE	1	vendorcode: KOMATSU \| visiblepartno: 53400499
?	31920999	BOLT	4	vendorcode: KOMATSU \| visiblepartno: 31920999
?	31915899	BOLT	4	vendorcode: KOMATSU \| visiblepartno: 31915899
?	51945498	SEAL RING	8	vendorcode: KOMATSU \| visiblepartno: 51945498
?	51854798	LOCK WASHER	2	vendorcode: KOMATSU \| visiblepartno: 51854798
?	30858299	BOLT	2	vendorcode: KOMATSU \| visiblepartno: 30858299
?	53400899	COVER PLATE	1	vendorcode: KOMATSU \| visiblepartno: 53400899
?	51820098	LOCK WASHER	2	vendorcode: KOMATSU \| visiblepartno: 51820098
?	30859999	BOLT	2	vendorcode: KOMATSU \| visiblepartno: 30859999
?	51205398	GROMMET	1	vendorcode: KOMATSU \| visiblepartno: 51205398
?	51857598	CLAMP PAIR	1	vendorcode: KOMATSU \| visiblepartno: 51857598
?	51877798	HALF FLANGE	2	vendorcode: KOMATSU \| visiblepartno: 51877798
?	51889998	HOSE ASSY. DN 12x5580	1	vendorcode: KOMATSU \| visiblepartno: 51889998
?	51885298	HOSE ASSY. DN 32x4700	1	vendorcode: KOMATSU \| visiblepartno: 51885298
?	37440899	UNION	1	vendorcode: KOMATSU \| visiblepartno: 37440899
?	51617598	UNION	1	vendorcode: KOMATSU \| visiblepartno: 51617598
?	51952798	UNION	1	vendorcode: KOMATSU \| visiblepartno: 51952798
?	37127599	NUT	1	vendorcode: KOMATSU \| visiblepartno: 37127599
?	51683698	UNION	3	vendorcode: KOMATSU \| visiblepartno: 51683698
?	51675198	UNION	1	vendorcode: KOMATSU \| visiblepartno: 51675198
?	35191699	NUT	3	vendorcode: KOMATSU \| visiblepartno: 35191699
?	50755798	NUT	1	vendorcode: KOMATSU \| visiblepartno: 50755798
?	51894798	HOSE ASSY. DN 32x2800	1	vendorcode: KOMATSU \| visiblepartno: 51894798
?	51969898	HOSE ASSY. DN 12x3600	1	vendorcode: KOMATSU \| visiblepartno: 51969898
?	37440799	SOCKET	4	vendorcode: KOMATSU \| visiblepartno: 37440799
?	51615898	SOCKET	3	vendorcode: KOMATSU \| visiblepartno: 51615898
?	37442299	UNION	1	vendorcode: KOMATSU \| visiblepartno: 37442299
?	51616298	UNION	1	vendorcode: KOMATSU \| visiblepartno: 51616298
?	50905998	CLAMP PAIR	22	vendorcode: KOMATSU \| visiblepartno: 50905998
?	31941799	BOLT	36	vendorcode: KOMATSU \| visiblepartno: 31941799

Komatsu PC4000-11 S/N 08312 parts catalog PDF

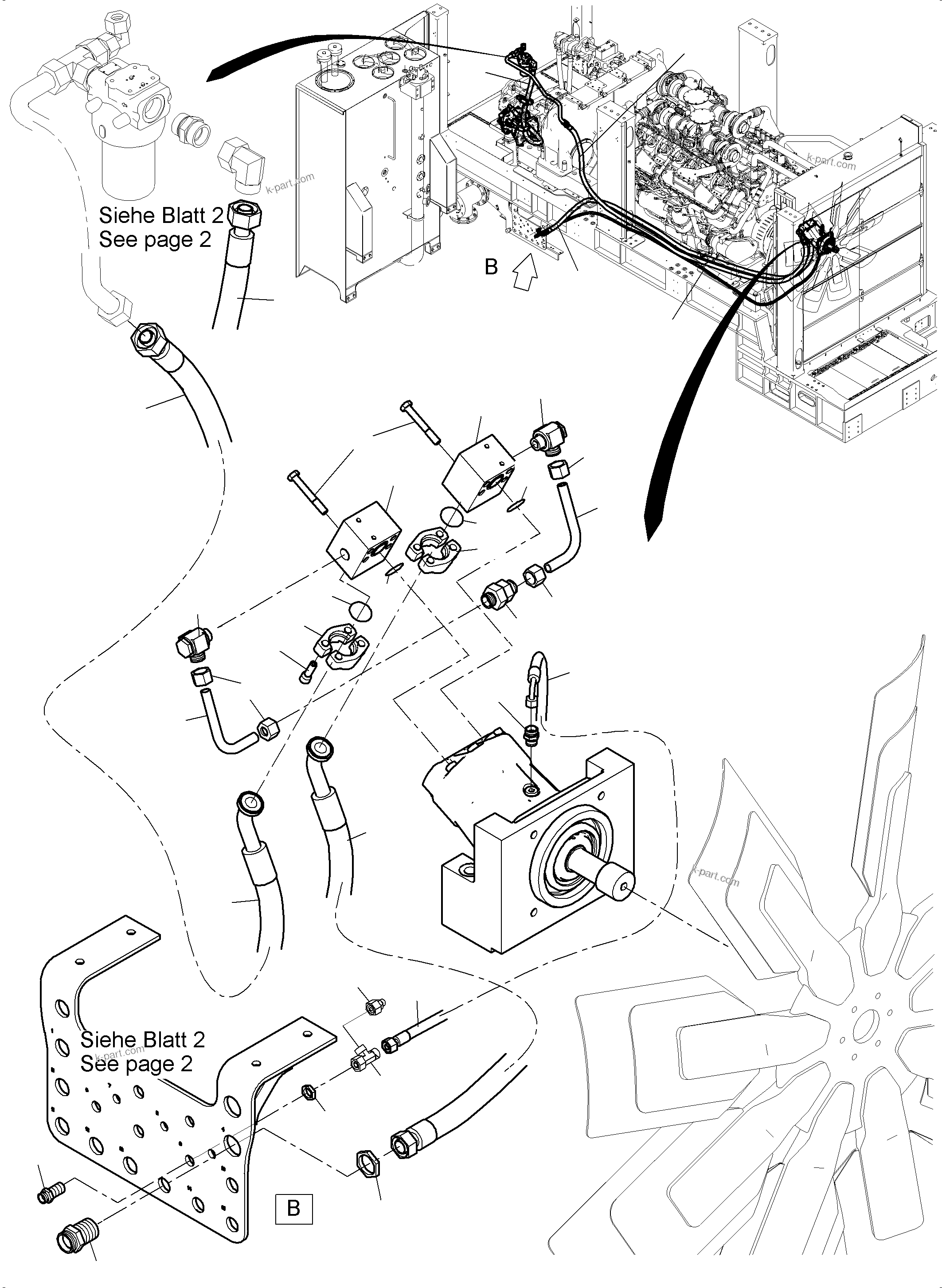

LINES - FAN MOTORS, FAN PUMP (RADIATOR) (359-1820A) in PC4000-11 S/N 08312. Diagram image and parts list.
