Diagram image 1 of 2

PC4000-11 S/N 08302

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-11 S/N 08302

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	985 287 40	Emergency ladder	1
?	985 288 40	Ladder	1
?	102 440 42	Ladder	1
?	972 185 40	Retainer for rolle	1
?	972 199 40	Roller	1
?	972 175 40	Lever carrier	1
?	972 180 40	Lever	1
?	972 195 40	Catch lever	1
?	976 849 40	Plate	4
?	106 501 42	Sliding pad	2
?	976 847 40	Sliding pad	1
?	976 848 40	Plate	4
?	976 845 40	Sliding pad	2
?	976 851 40	Plate	1
?	984 770 40	Plate	2
?	976 853 40	Ring	2
?	984 771 40	Sliding pad	2
?	976 859 40	Pin	1
?	976 860 40	Pin	1
?	976 858 40	Pin	2
?		Hydr. Cylinder with Accumulator	1	535-1027b
?	510 744 98	Resilient sleeve	6
?	308 437 99	Bolt	6
?	520 174 98	Washer	22
?	332 353 99	Nut	16
?	520 541 98	Washer	12
?	319 142 99	Screw	6
?	334 599 99	Nut	6
?	520 545 98	Washer	8
?	502 006 98	Bolt	8
?	308 583 99	Bolt	2
?	507 037 98	Nut	4
?	512 798 98	Bolt	2
?	512 748 98	Nut	4
?	976 855 40	Compression spring	2
?	896 535 40	Silent block	1
?	340 467 99	Washer	1
?	514 922 98	Nut	1
?	976 854 40	Draw spring	2
?	342 081 99	Cotter pin	5
?	342 101 99	Cotter pin	2
?	501 581 98	Washer	2
?	340 613 99	Washer	4
?	350 562 99	Grease nipple	4
?	519 488 98	Pin	1
?	340 612 99	Washer	2
?	342 059 99	Cotter pin	2
?	519 486 98	Pin	2
?	519 487 98	Pin	1
?	340 607 99	Washer	1
?	517 573 98	Resilient sleeve	4
?	308 459 99	Bolt	2
?	098 955 40	Ring	2
?	472 688 99	Chain	-2
?	519 528 98	Clevis	1
?	308 947 99	Bolt	2
?	106 502 42	Filler plate	1

Komatsu PC4000-11 S/N 08302 parts catalog PDF

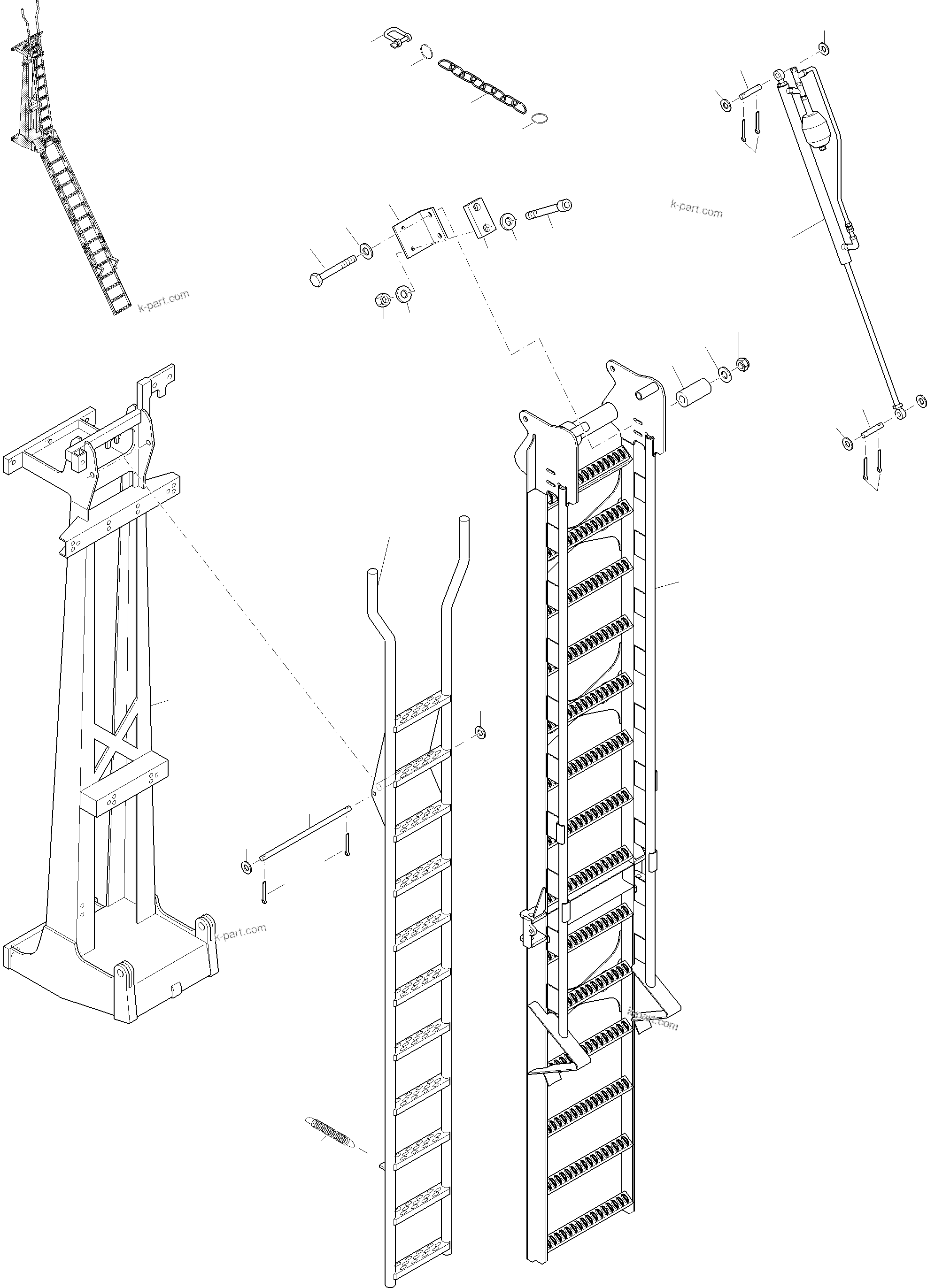

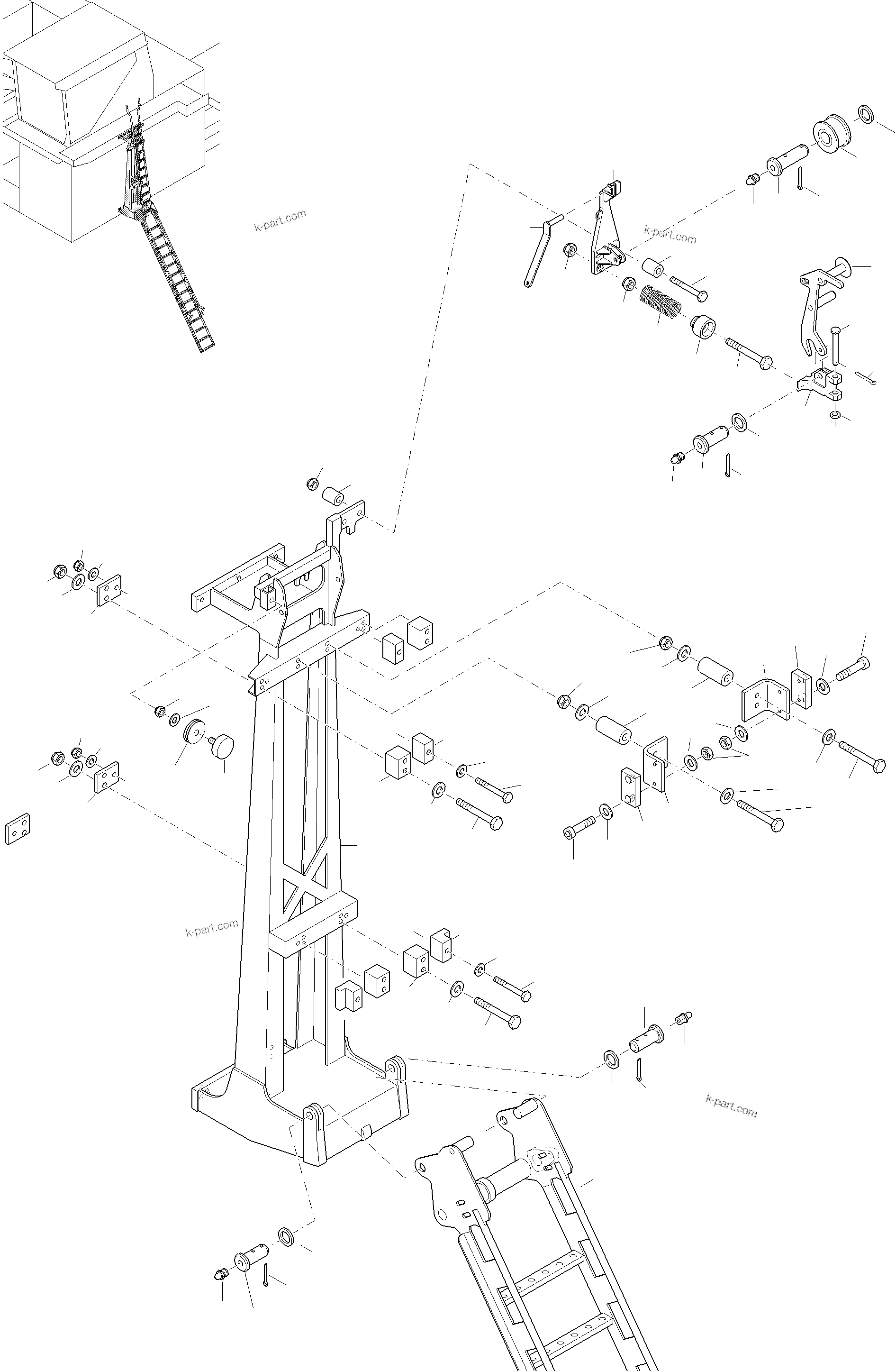

EMERGENCY LADDER-CAB (360-1025b) in PC4000-11 S/N 08302. Diagram image and parts list.
