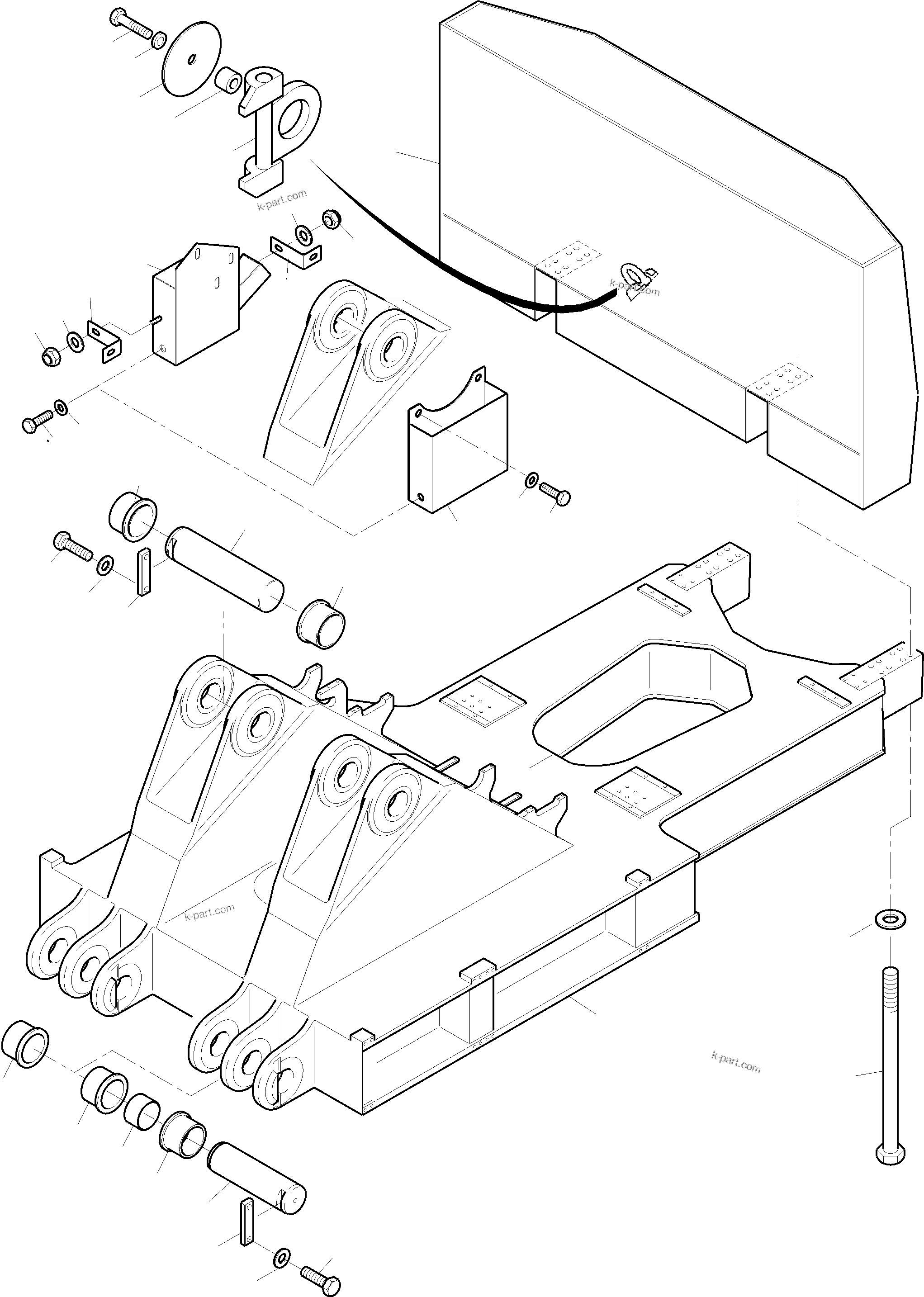

PIN, BOOM - COUNTERWEIGHT | PC4000-11 S/N 08302

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC4000-11 S/N 08302

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	990 109 40	Platform	1
?	901 897 40	Pin	2
?	901 894 40	Freeze-in bushing	4
?	637 549 40	Axle stirrup	4
?	511 811 98	Bolt (Standard)	8
?	513 968 98	Bolt (cold weather design)	8
?	901 899 40	Freeze-in bushing	2
?	901 895 40	Freeze-in bushing	4
?	506 761 98	Washer	8
?	901 896 40	Pin	2
?	954 142 40	Pipe	2
?	515 904 98	Boltt (Standard)	16
?	516 588 98	Bolt (cold weather design)	16
?	505 920 98	Washer	16
?	949 072 40	Counterweight	1
?	991 756 40	Grease collection container	2
?	956 911 40	Grease collection container	2
?	307 804 99	Bolt	8
?	517 118 98	Lock washer	8
?	517 122 98	Washer	8
?	991 757 40	Angle	4
?	507 037 40	Nut	8
?	307 752 99	Bolt	4
?	340 464 99	Washer	4
?	490 741 40	Load ring	3
?	939 245 40	Thread piece	1
?	939 246 40	Washer	1
?	517 124 98	Lock washer	1
?	307 842 99	Bolt	1
