#	Part Number	Partname	Quantity
?	906 031 40	Travelling gear assy.	1
?	500 152 98	O-ring	1
?	504 836 98	Circlip	1
?	006 389 98	Shaft seal	2
?	806 125 73	Seal ring	1
?	504 834 98	O-ring	1
?	768 162 73	Internal disk	7
?	968 524	External disk	8
?	342 569 99	Circlip	2
?	806 126 73	Cam	1
?	319 276 99	Screw	12
?	806 127 73	Housing	1
?	804 049	Seal ring	1
?	730 687 44	O-ring	1
?	973 146	Support ring	1
?	968 526	Support ring	2
?	968 525	Quadring	1
?	968 521	Piston	1
?	963 624	Spring	36
?	966 088	Spring	30
?	968 528	Support ring	2
?	968 527	Quadring	1
?	007 043 98	Shaft seal	2
?	504 833 98	O-ring	1
?	806 128 73	Seal ring	1
?	342 686 99	Circlip	1
?	501 402 98	Roller bearing	2
?	806 136 73	Drive shaft	1
?	319 285 99	Screw	6
?	768 806 73	Cover	1
?	319 297 99	Screw	47
?	806 129 73	Housing	1
?	313 267 99	Plug	9
?	339 907 99	Seal ring	10
?	313 295 99	Plug	2
?	339 897 99	Seal ring	2
?	763 676 73	Dipstick	1
?	501 954 98	Ball bearing	2
?	763 994 73	Spur wheel	1
?	342 662 99	Circlip	1
?	804 056	Sun gear	1
?	804 057	Support ring	1
?	806 984 73	Planetary carrier, assy. fig-nos: 62-66	1
?	501 532 98	Plug	2
?	339 796 99	Seal ring	2
?	307 932 99	Bolt	1
?	763 992 73	Internal geared double wheel	1
?	313 507 99	Eyebolt	1
?	804 060	Support ring	1
?	502 496 98	Roller bearing	1
?	804 061	Sun gear shaft	1
?	342 682 99	Circlip	1
?	804 062	Supporting disk	1
?	502 875 98	Ball bearing	1
?	502 203 98	O-ring	5
?	806 985 73	Planetary carrier, assy. fig-no: 67-76	1
?	504 838 98	Roller bearing	1
?	804 283 73	Support ring	1
?	804 284 73	Shaft seal	1
?	804 065	Sealing cover	1
?	307 949 99	Bolt	12
?	804 066	Planetary	3
?	342 693 99	Circlip	6
?	504 837 98	Roller bearing	3
?	342 576 99	Circlip	3
?	968 662	Support ring	1
?	504 835 98	O-ring	1
?	804 067	Centering ring	1
?	501 933 98	Circlip	1
?	804 068	Planetary, is only deliverable as set amount (=3 pieces)	3
?		Planetery is no more available seperatly	-2
?	504 839 98	Roller bearing	6
?	804 069	Stop washer	6
?	342 696 99	Circlip	6
?	804 070	Spacer	3
?	806 986 73	Planetary pin	3
?	342 675 99	Circlip	3
?	763 996 73	Plug	2
?	763 995 73	Intermediate ring	3
?	082 821	O-ring	1
?	307 754 99	Bolt	4
?	768 807 73	Cover	1
?	768 808 73	Cam	1
?	793 395 73	Repair kit brake consist of fig.nos. 02,03,04,06,07,08,09,10,12,14-24	1
?	799 338 73	Seal kit consist. of fig.nos. 05,13,25,34,36,45,55,59,67	1
?	799 339 73	Bearing kit consist. of fig.nos. 27,38,50,54,57,64,71	1

Komatsu PC4000-11 S/N 08302 parts catalog PDF

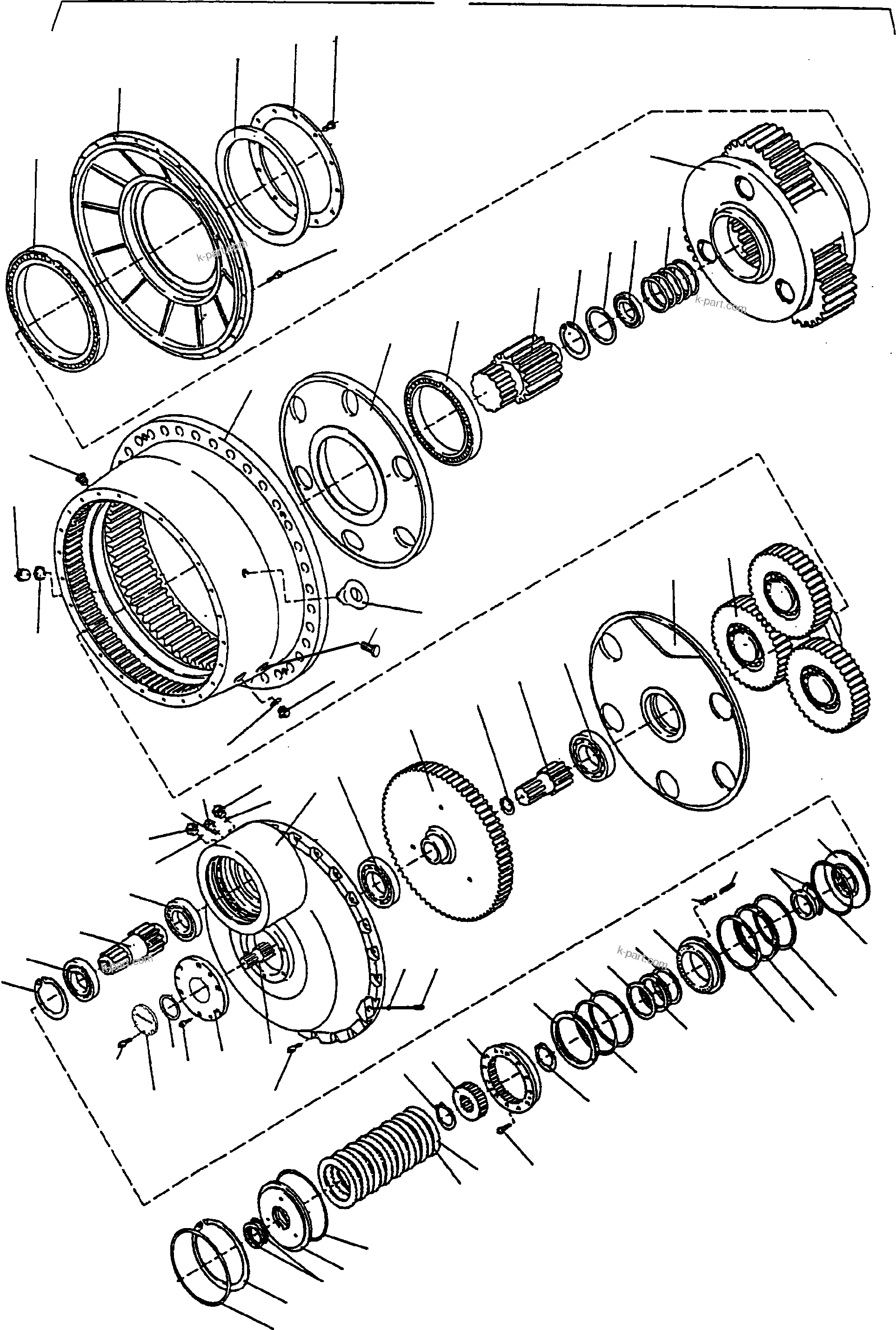

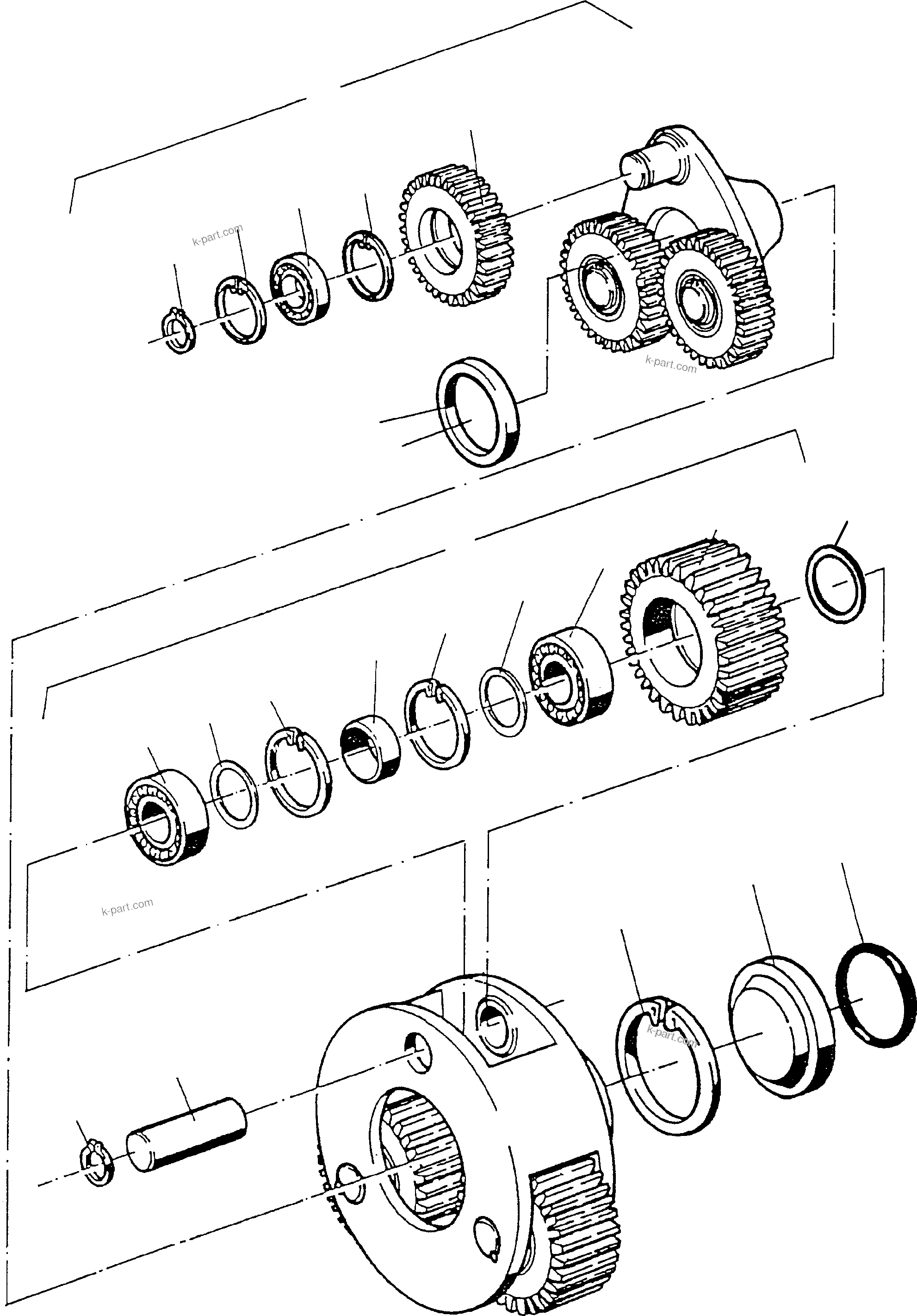

TRAVELLING GEAR (991-0340) in PC4000-11 S/N 08302. Diagram image and parts list.
