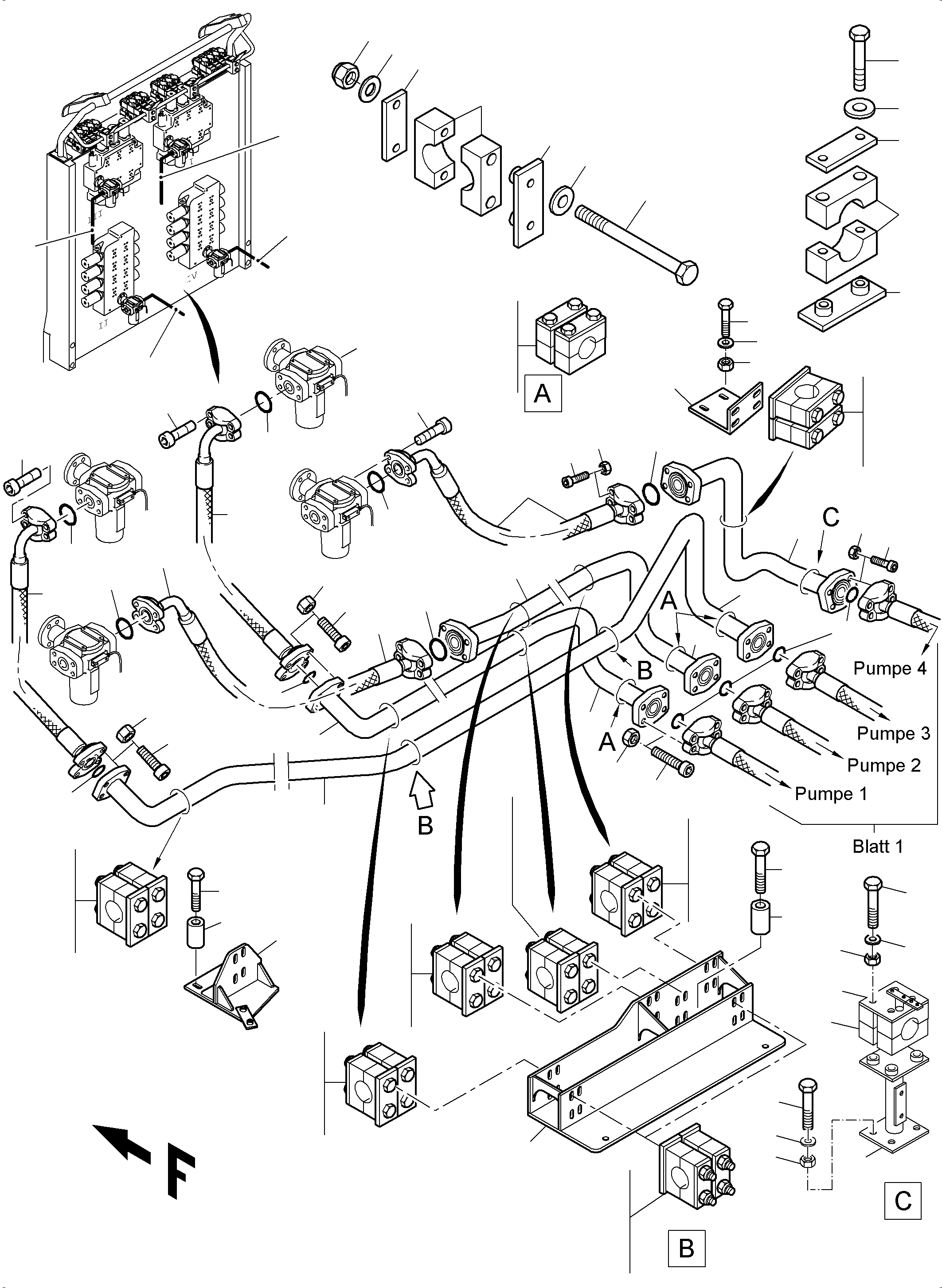

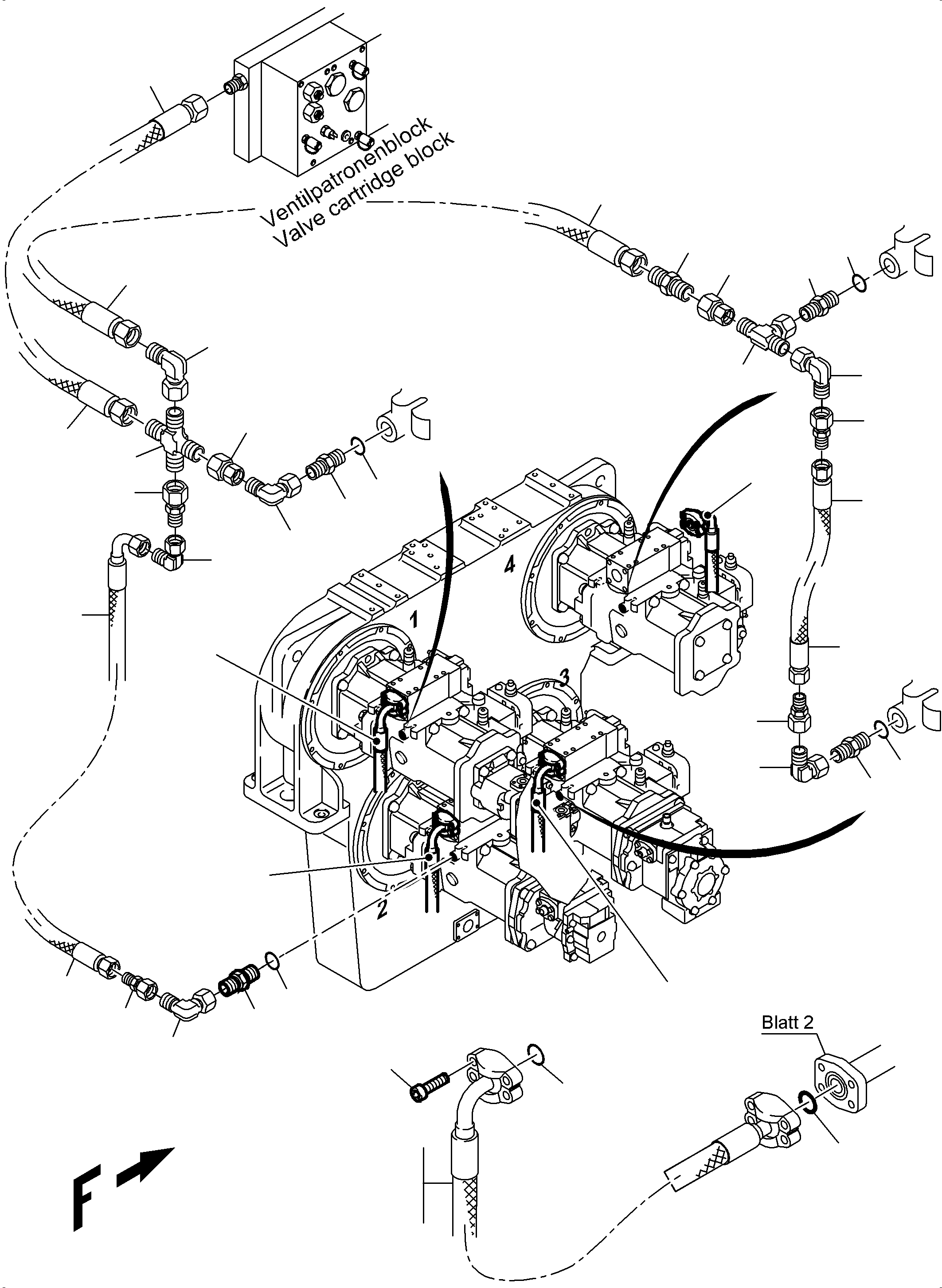

PRESSURE LINES - MAIN PUMPS | PC4000-11 S/N 08302

Diagram image 1 of 2

PC4000-11 S/N 08302

01 01 02 02 03 03 04 04 05 05 05 05 06 06 06 06 07 08 09 10 11 11 11 12 13 14 14 15 15 16 16 17 17 18 19 19 20 20 20 20 60 60

PC4000-11 S/N 08302

19 19 19 19 19 19 19 19 19 21 21 22 22 22 23 23 24 25 25 26 26 27 27 29 29 29 29 30 30 30 30 30 31 31 31 31 32 32 32 32 32 32 32 32 33 33 33 33 33 33 33 34 34 34 34 34 34 34 34 34 34 35 35 35 35 35 35 35 35 35 35 35 36 37 37 37 38 38 39 39 39 39 39 39 39 39 39 39 39 39 40 41 42 43 44 44 45 45 45 45 45 45 45 45 45 45 45 45 45 45 48 49 50 51 52 52

#	Part Number	Partname	Quantity
01	950 533 40	Hose assy. DN 50x4520	1
02	950 534 40	Hose assy. DN 50x2980	1
03	950 536 40	Hose assy. DN 50x2120	1
04	950 535 40	Hose assy. DN 50x2180	1
05	941 294 40	Socket	4
06	516 158 98	Socket	6
07	516 613 98	Union	1
08	516 168 98	Socket	1
09	516 159 98	Socket	1
10	634 303 40	Union	1
11	551 987 40	Union	5
12	501 796 98	Socket	1
13	516 157 98	Socket	3
14	518 735 98	Hose assy. DN 16x1650	1
15	519 986 98	Hose assy. DN 16x1900	1
16	518 773 98	Hose assy. DN 10x760	1
17	518 736 98	Hose assy. DN 10x910	1
18	518 502 98	Bolt	16
19	519 454 98	Flange seal	14
20	514 034 98	O-ring	4
21	520 117 98	Hose assy. DN 50x1260	1
22	520 118 98	Hose assy. DN 50x1300	1
23	520 119 98	Hose assy. DN 50x1840	1
24	969 836 40	Pipe assy. ш 65	1
25	796 556 73	Pipe assy. ш 65	1
26	796 557 73	Pipe assy. ш 65	1
27	796 558 73	Pipe assy. ш 65	1
29	320 035 99	Screw	32
30	332 338 99	Nut	32
31	518 502 98	Bolt	64
32	914 746 40	Weld-on plate	8
33	308 617 99	Bolt	28
34	502 965 98	Cover plate	15
35	504 445 98	Half clamp	24
36	969 855 40	Retainer	1
37	308 615 99	Bolt	8
38	504 682 98	Bolt	12
39	334 600 99	Nut	54
40	942 310 40	Retainer	1
41	942 311 40	Retainer	1
42	302 574 99	Bolt	4
43	308 885 99	Bolt	2
44	512 531 98	Resilient sleeve	6
45	517 118 98	Lock washer	124
48	517 574 98	Bolt	2
49	969 868 40	Retainer	1
50	969 872 40	Retainer	1
51	308 614 99	Bolt	4
52	940 364 40	Hose assy. DN 50x1750	1
60	515 839 98	Socket	2
