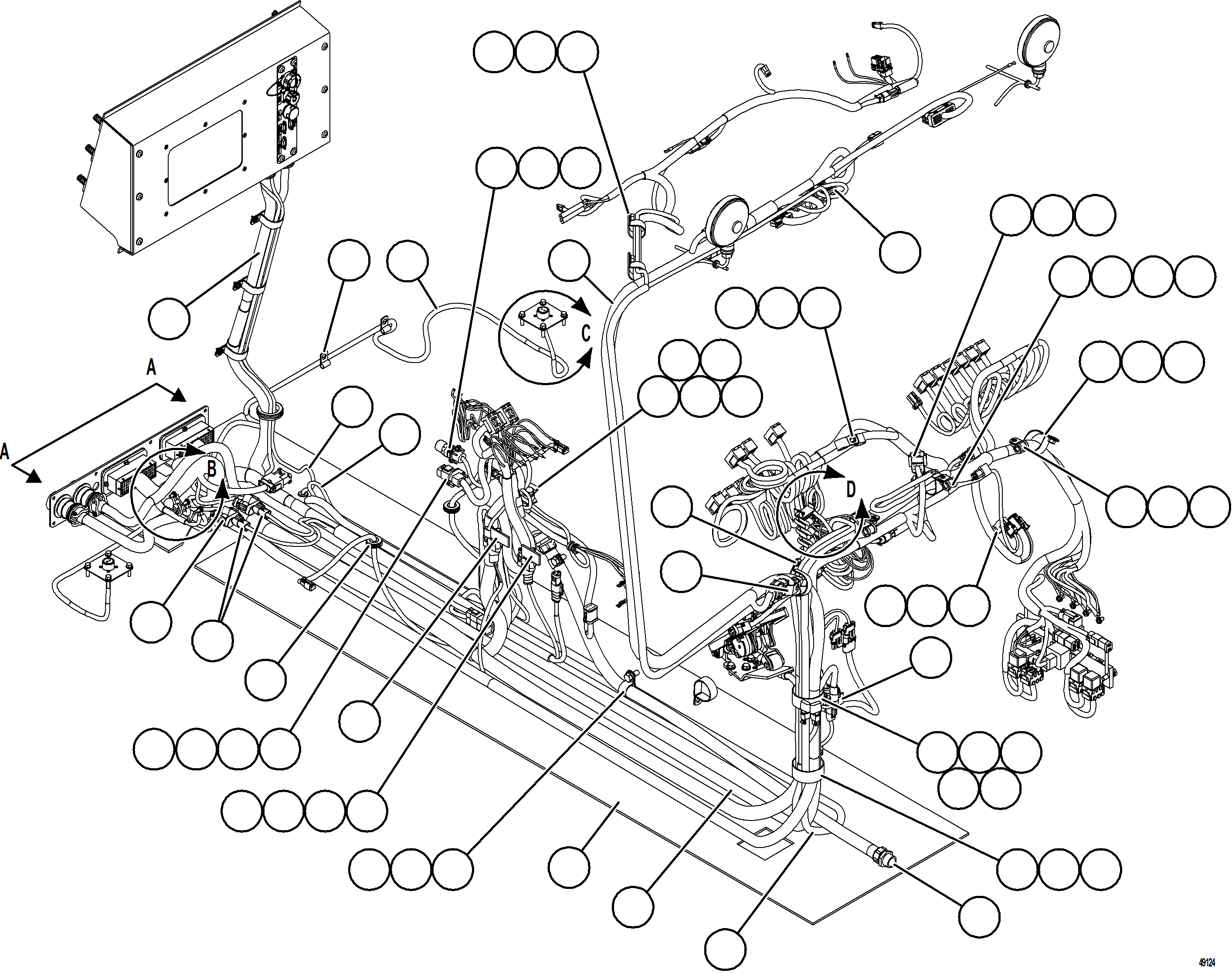

AFE57-KF 830E-1AC S/N A41142 MODERN MACHINERY

7 1 2 5 6 7 8 9 3 4 11 12 30 37 38 27 28 29 10 11 12 41 42 43 17 40 39 26 25 24 23 7 8 22 7 36 8 11 20 22 21 32 33 34 35 15 14 13 31 8 7 13 8 7 8 18 7 8 19 7 8 18 19 16 18 21 44

#	Part Number	Partname	Quantity
1	58E-06-00606	HARNESS, WIRING - CAB DIAGNOSTIC	1
2	WB1302	CLAMP, CUSHIONED - 5/16"	3
3	58E-06-80050	CABLE, CAT5E	1
4	58E-06-80040	CABLE, CAT5E	1
5	58E-06-00612	HARNESS, WIRING - CAB DASH	1
6	58E-06-00623	HARNESS, WIRING - CAB OVERHEAD	1
7	MM0177	NUT - M8 X 1.25	11
8	MM0460	FLAT WASHER - M8	11
9	WB3096	CLAMP, CUSHIONED - 1 1/4"	2
10	PC0618	PLUG, TERMINATING	1
11	PC0616	RECEPTACLE, TEE	5
12	XB6447	PLUG, 3-POSITION	4
13	WB1303	CLAMP, CUSHIONED - 3/4"	3
14	MM0019	CAPSCREW - M6 X 1.00 X 16	1
15	MM0469	LOCKWASHER - M6	1
16	EJ6371	CONNECTOR, CN2B	1
17	MM0331	MACHINE SCREW - M3 X 0.5 X 20	4
18	WB3094	CLAMP, CUSHIONED - 1 3/4"	5
19	VN0137	CLAMP, CUSHIONED - 7/16"	3
20	08193-21012	CLIP	1
21	08193-20012	CLIP	2
22	VC7674	CLAMP - 2 7/16"	2
23	58E-54-19920	CONDUIT	1
24	58E-54-50300	MAT, RUBBER	1
25	58E-06-09220	CABLE, CAT5E	1
26	58E-06-00593	HARNESS, WIRING - CAB/DRIVE SIGNAL	1
27	WB3093	CLAMP, CUSHIONED - 1"	2
28	MM0605	CAPSCREW - M10 X 1.50 X 25	2
29	01643-31032	WASHER - M10	2
30	TD2186	GROMMET, RUBBER	2
31	08193-31012	CLIP	2
32	426-06-11570	BRACKET	1
33	MM0603	CAPSCREW - M10 X 1.50 X 16	1
34	MM0461	FLAT WASHER - M10	1
35	WB1301	CLAMP, CUSHIONED - 1/4"	1
36	WB4010	NAME PLATE - CAN RPC	1
37	WB4009	NAME PLATE - CAN J1939	1
38	58E-06-40520	NAME PLATE - CAN	1
39	MM0370	NUT - M3 X 0.5	4
40	MM0376	LOCKWASHER, EXTERNAL TOOTH - M3	4
41	MM0205	LOCKWASHER - M4	2
42	MM0344	MACHINE SCREW - M4 X 0.7 X 20	2
43	MM0372	NUT - M4 X 0.7	2
44	MM0378	LOCKWASHER, EXTERNAL TOOTH - M4	2

Komatsu AFE57-KF 830E-1AC S/N A41142 MODERN MACHINERY parts catalog PDF

INTERNAL CAB WIRING 1/2 (49124) in AFE57-KF 830E-1AC S/N A41142 MODERN MACHINERY. Diagram image and parts list.
