AFE57-KF 830E-1AC S/N A41142 MODERN MACHINERY

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58E-22-00133	AXLE HOUSING ASSEMBLY	1
?	XB2447	PIVOT EYE ASSEMBLY (1)	1
?	XB2446	EYE, PIVOT	1
?	WB1154	CAPSCREW, 12 PT - 3/4" - 10NC X 6" (2)	8
?	TY1344	RETAINER, BEARING (2)	2
?	PC1291	BEARING, SPHERICAL (2)	1
?	EG3026	CARRIER, BEARING (2)	1
?	VL2993	LOCKNUT - 3/4" - 10NC (2)	8
?	EG3033	PIN, PIVOT (2)	1
?	EG3028	SPACER (2)	2
?	VN9106	CAPSCREW - 1 1/4" - 7NC X 3"	24
?	WA0366	FLAT WASHER, HARDENED - 1 1/4"	24
?	EG3027	PLATE, LOCKING (2)	1
?	C1633	CAPSCREW - 5/8" - 11NC X 2 3/4" (2)	3
?	VC1390	LOCKWASHER - 5/8" (2)	3
?	WB1059	CAPSCREW, 12 PT - 1 1/4" - 7NC X 4 1/2" (2)	4
?	MM0603	CAPSCREW - M10 X 1.50 X 16	1
?	MM0471	LOCKWASHER - M10	2
?	XB2497	WIRE, GROUND	1
?	MM0178	NUT - M10 X 1.50	1
?	WA4735	FLAT WASHER - 1 1/4"	4
?		NOTE: (1) NOT SERVICED AS AN ASSEMBLY. ORDER	-1
?		INDIVIDUAL COMPONENT PARTS.	-1
?	58F-MP-AK090	(2) INCLUDED IN 58F-MP-AK090 NOSE CONE PIN KIT.	-1

Komatsu AFE57-KF 830E-1AC S/N A41142 MODERN MACHINERY parts catalog PDF

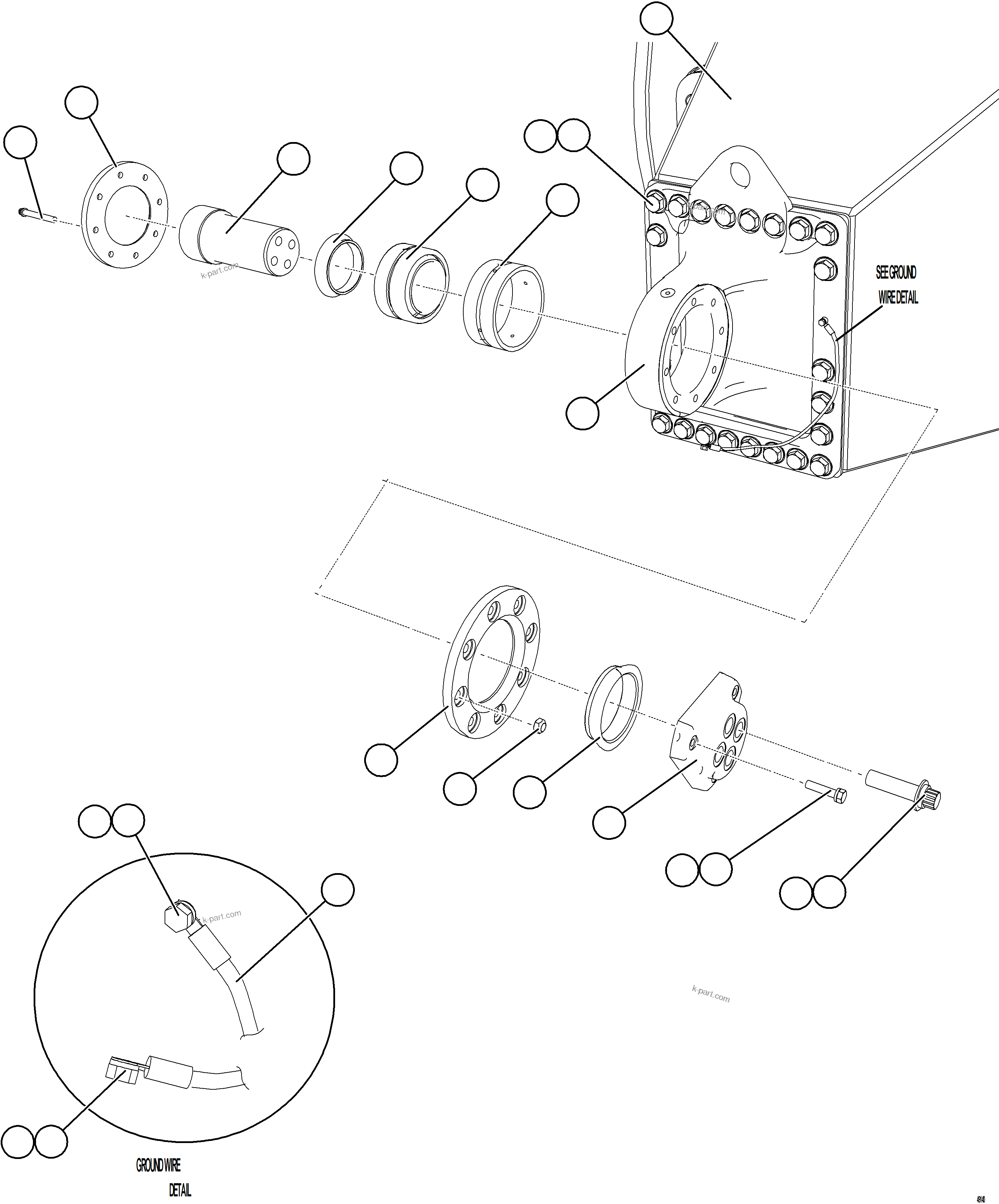

AXLE HOUSING INSTALLATION (49140) in AFE57-KF 830E-1AC S/N A41142 MODERN MACHINERY. Diagram image and parts list.
