AFE57-KF 830E-1AC S/N A41142 MODERN MACHINERY

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EM8836	REAR SUSPENSION ASSEMBLY - CW (1)	2
?	EM8840	REAR SUSPENSION ASSEMBLY (2) (SEE INDEX)	2	47663
?	VN9351	RING, RETAINING (3)	8
?	PC2053	BEARING, SPHERICAL (3)	4
?	TX8110	SLEEVE (3)	8
?	58F-50-00130	SPACER (3)	8
?	EK1326	PIN, BEARING (3)	4
?	VN9952	LOCKNUT - 5/8" - 11NC (3)	4
?	EM8110	SHOULDER BOLT - 5/8" - 11NC X 6.73" (3)	2
?	CE2510	CAPSCREW - 5/8" - 11NC X 3/4"	2
?	VC1390	LOCKWASHER - 5/8"	2
?	PC2017	CLAMP	2
?	EL7318	GUARD	2
?	WA4729	FLAT WASHER, HARDENED - 5/8"	4
?	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	4
?	TC1231	LOCKWASHER - 3/8"	4
?	WA4726	FLAT WASHER, HARDENED - 3/8"	4
?	58E-97-00030	COVER	2
?	EM8115	SHOULDER BOLT - 5/8" - 11NC X 6.54"	2
?	08193-21012	CLIP	2
?		NOTE: (1) COMES WITH BEARINGS AND SNAP RINGS INSTALLED.	-1
?		(2) NOT SERVICED SEPARATELY. ORDER NEXT HIGHER LEVEL.	-1
?	58E-MP-AK060	(3) INCLUDED IN 58E-MP-AK060 PIN KIT.	-1

Komatsu AFE57-KF 830E-1AC S/N A41142 MODERN MACHINERY parts catalog PDF

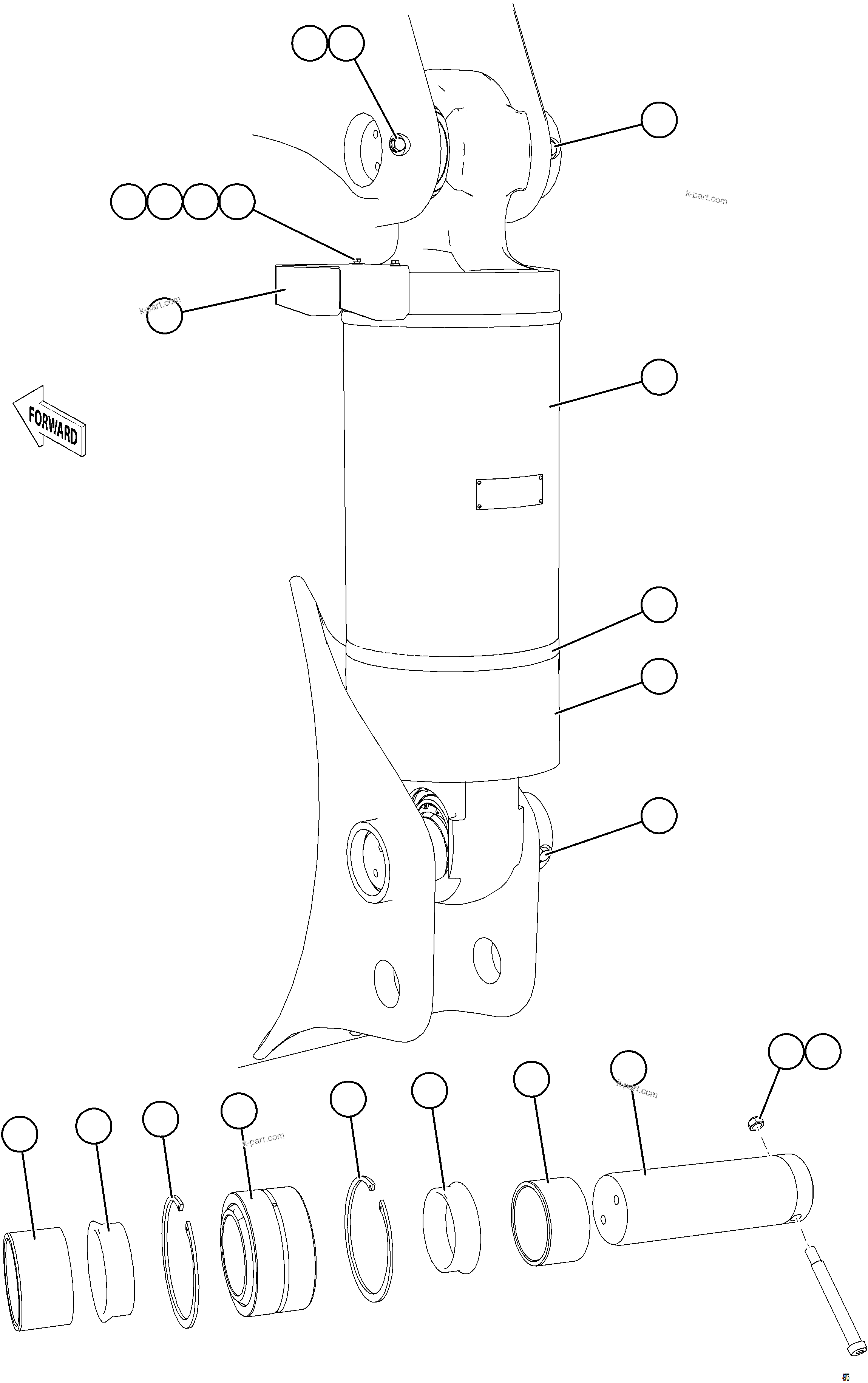

REAR SUSPENSION INSTALLATION (49705) in AFE57-KF 830E-1AC S/N A41142 MODERN MACHINERY. Diagram image and parts list.
